WS 1000 G2 R
Archive

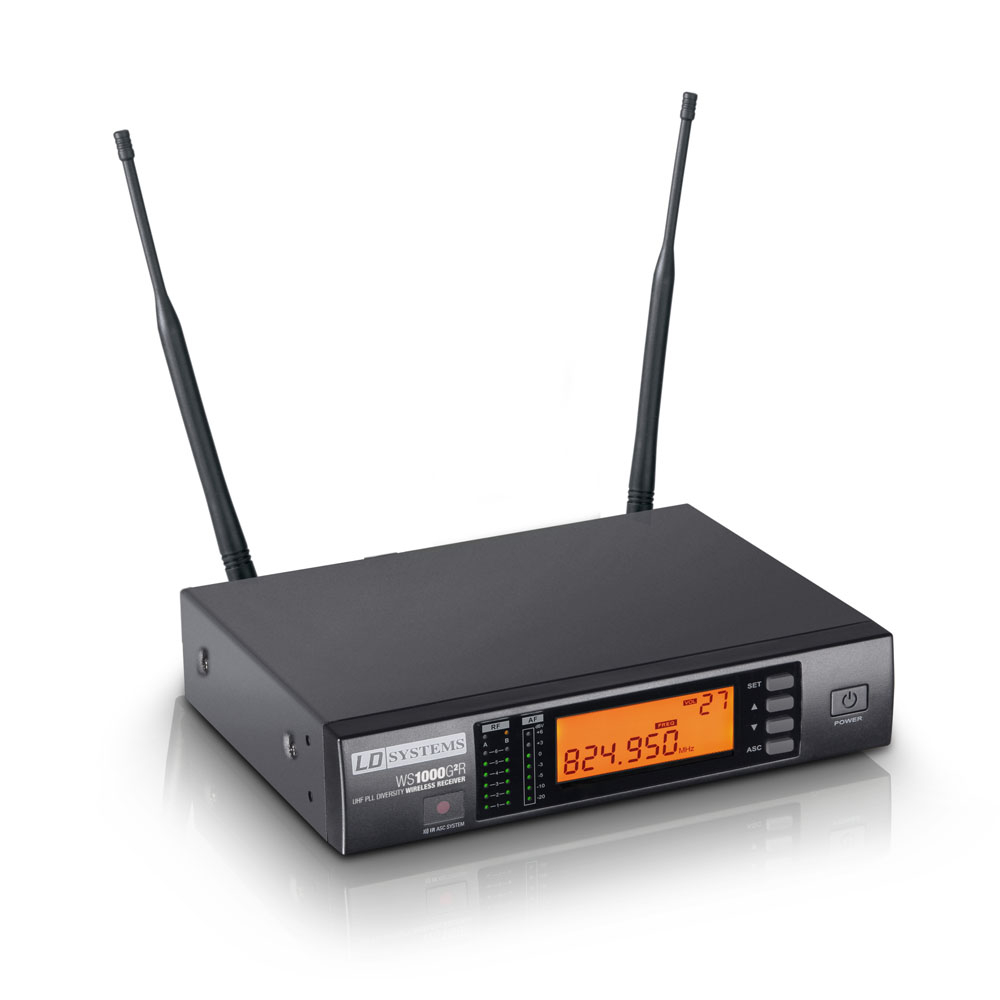

WS 1000 G2 R

Receiver

Item no.: LDWS1000G2R

Guarantee: 24 months

EAN: 4049521146794

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:WS 1000 G2

Item highlights:

The refined LD Systems WS 1000 G2 is a LICENSE-FREE* True Diversity wireless microphone system with 96 UHF channels. It offers a natural sound with a large dynamic range, a high signal-to-noise ratio, and low total harmonic distortion in the 823 – 832 and 863 – 865 MHz bands. The LD WS 1000 G2 permits simultaneous operation of up to 5 systems and different versions are available. Users can choose from variants with a dynamic microphone or condenser microphone or a belt-pack transmitter with their choice of a headset, a lavaliere microphone, a clamp-on microphone for brass instruments or a guitar adapter cable. The system guarantees reliable audio transmission with a frequency response of 60 Hz to 16 kHz. Both the handheld units and the belt-pack have a practical LC display for the channel, the group, and the battery status. The automatic channel scan function and the lighted multi-function display on the receiver ensure simple setup and operation. With high quality batteries (AA), it is possible to attain running times of up to 13 hours. Each WS 1000 G2 system comes with a rugged transport case made of ABS plastic.

* license-free: ISM band license-free in Europe, please check duplex gap for your specific country

Specifications

Product type
Wireless Microphone System Accessories
Type
Receivers
Transmission frequency range
823 - 832 MHz, 863 - 865 MHz
Channels
96 (8 groups of 12 channels)
Antenna inputs
2
Antenna connector
BNC
Frequency response
60 - 16000lx @ 1m Hz
Noise reduction
Squelch
Total Harmonic Distortion (THD)
< 1 %
Signal-to-noise ratio
> 100 dB
Audio output, balanced
XLR - 12 dBV (600 ohms) / 6.3 mm TRS - 18 dBV (3 kohms)
Weight
0,91 kg
Controls
ASC, Down, Power On/Off, Set, Up
Indicators
2 x 6-segment RF (A/B), 7-segment AF, antenna active (A/B), LC display
Power supply
12 - 18 V DC
Width
212 mm
Height
45 mm
Depth
163 mm
Accessories (included)
Batteries
