WS 1000 G2 BPL

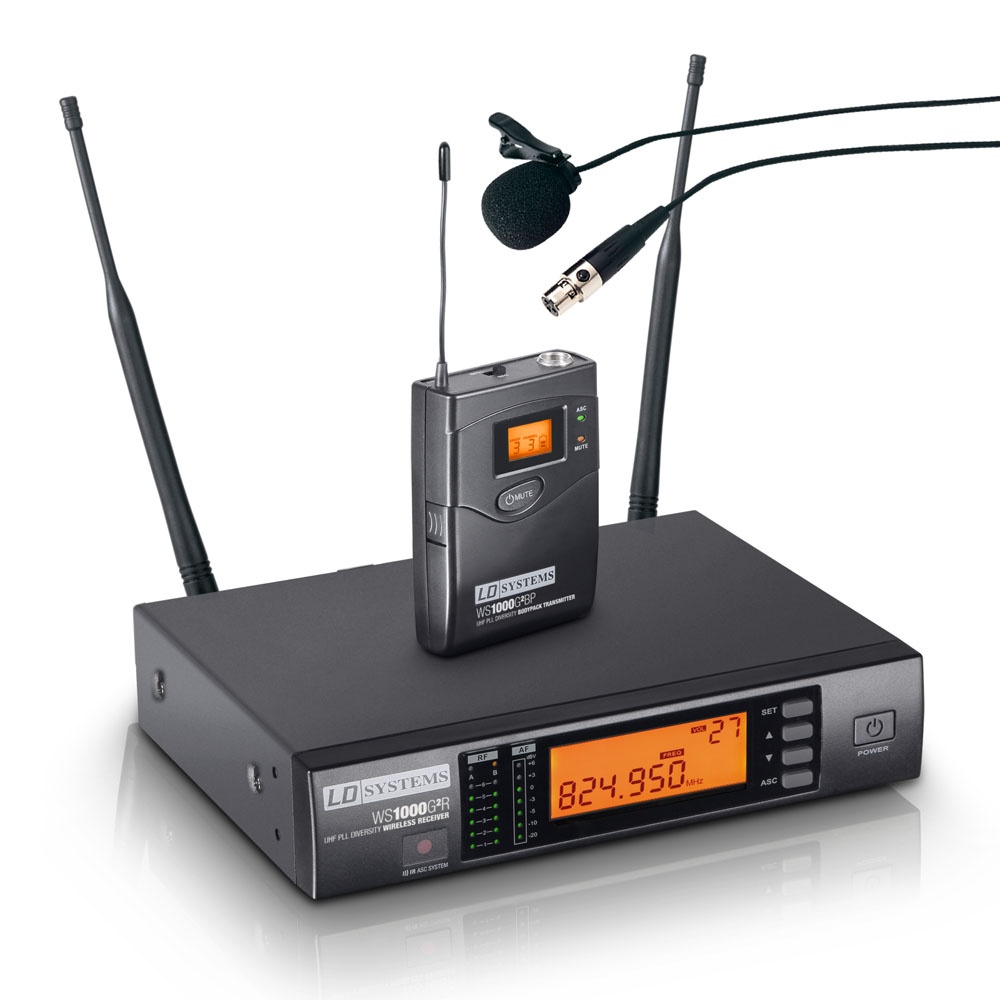

Wireless Microphone System with Belt Pack and Lavalier Microphone

Item no.: LDWS1000G2BPL

Guarantee: 24 months

EAN: 4049521146404

Sliding scale: 1

Unit: Piece

Packaging unit: 5

Series:WS 1000 G2

Item highlights:

The refined LD Systems WS 1000 G2 is a LICENSE-FREE* True Diversity wireless microphone system with 96 UHF channels. It offers a natural sound with a large dynamic range, a high signal-to-noise ratio, and low total harmonic distortion in the 823 – 832 and 863 – 865 MHz bands. The LD WS 1000 G2 permits simultaneous operation of up to 5 systems and different versions are available. Users can choose from variants with a dynamic microphone or condenser microphone or a belt-pack transmitter with their choice of a headset, a lavaliere microphone, a clamp-on microphone for brass instruments or a guitar adapter cable. The system guarantees reliable audio transmission with a frequency response of 60 Hz to 16 kHz. Both the handheld units and the belt-pack have a practical LC display for the channel, the group, and the battery status. The automatic channel scan function and the lighted multi-function display on the receiver ensure simple setup and operation. With high quality batteries (AA), it is possible to attain running times of up to 13 hours. Each WS 1000 G2 system comes with a rugged transport case made of ABS plastic.

* license-free: ISM band license-free in Europe, please check duplex gap for your specific country

Specifications

Product type
Wireless Microphone Systems
Type
true diversity, Lavalier
Transmission frequency range
863.000 - 865.000, 823.000 - 832.000

Items in this set

Capsule type
Condenser
Colour
Black
Directivity
Cardioid
Frequency response (-6 dB, rel. Avg)
20 - 20000
Material
Silicone, Foam
Nominal impedance
680
Output connector type
Mini XLR female
Phantom power
5
Weight
26
Channels
96 (8 groups of 12 channels)
Controls
Power On/Off
Depth
24
Frequency response
60 - 16,000
Height
90
Indicators
LC display
Inputs
Mini-XLR (3-pin)
Operating time
up to 13 hrs., battery-dependent
Other features
incl. batteries
Power supply
2 x 1.5 V AA
Product type
Wireless Microphone System Accessories
Rated HF output power
10 mW
Transmission frequency range
863 - 865, 823 - 832
Type
Belt Packs
Width
65
Accessories (included)
Batteries
Antenna connector
BNC
Antenna inputs
2
Audio output, balanced
XLR - 12 dBV (600 ohms) / 6.3 mm TRS - 18 dBV (3 kohms)
Channels
96 (8 groups of 12 channels)
Controls
Power On/Off, Up, Set, Down, ASC
Depth
163
Frequency response
60 - 16000lx @ 1m
Height
45
Indicators
LC display, antenna active (A/B), 7-segment AF, 2 x 6-segment RF (A/B)
Noise reduction
Squelch
Power supply
12 - 18 V DC
Product type
Wireless Microphone System Accessories
Signal-to-noise ratio
> 100
Total Harmonic Distortion (THD)
< 1 %
Transmission frequency range
863 - 865, 823 - 832
Type
Receivers
Width
212
