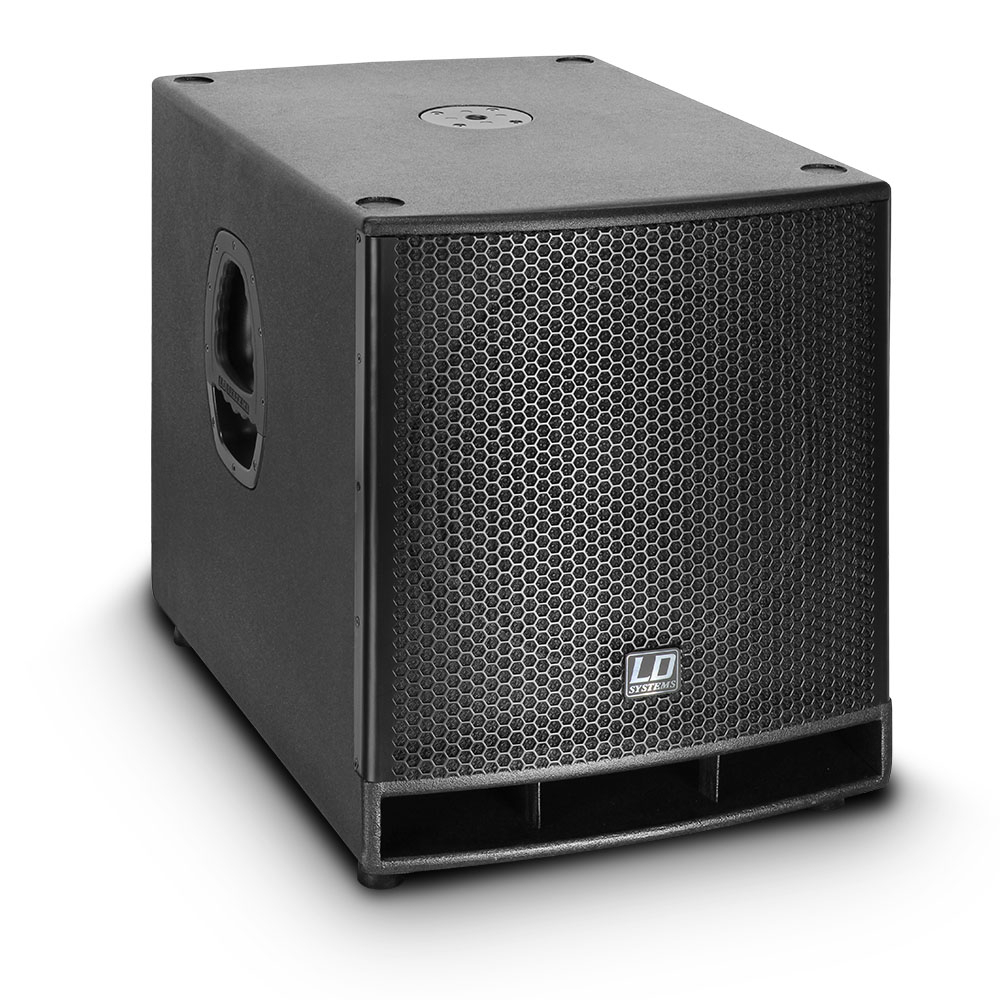

STINGER SUB 15 G2

15" passive PA Subwoofer

Item no.: LDESUB15G2

Guarantee: 24 months

EAN: 4049521135927

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:STINGER G2

Item highlights:

LD Systems Stinger Sub 15A G2 Passive Subwoofer

The Stinger Sub 15 G2 is a universally useable passive subwoofer. The compact bass-reflex design is made of sturdy multiplex and loaded with a 15" high-performance subwoofer with a rating of 2000W (Peak power). It delivers a taut bass foundation down to 38Hz with high impulse fidelity. The maximum sound level pressure is 126 dB.

The features include a switchable low-pass filter (120Hz, -12dB/oct). This can be deactivated to permit operation with external crossovers. The connectors are Speakon-compatible.

One special feature are the innovative LD "Evolutive Handles" with ergonomically shaped metal rings that permit a secure grip from all sides. A recessed M20 threaded flange accommodates stand poles. A transport bag and a dolly are available optionally.

Specifications

Product type
PA subwoofer
Type
Passive
Low/mid Woofer dimensions
15 "
Woofer dimensions (mm)
381 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil (inch)
3 "
Woofer voice coil (mm)
76.5 mm
Load rating (RMS)
500 W
Peak power
2000 W
Frequency response
38 - 200
SPL (1W/1m)
99 dB
Max. SPL
126 dB
Impedance
8 Ohm(s)
Loudspeaker inputs
1
Speaker input connections
Speakon compatible
Loudspeaker outputs
1
Speaker output connections
Speakon compatible
Cabinet material
15 mm Plywood
Cabinet surface
texture paint
Cabinet construction
Bass Reflex
Width
480 mm
Height
570 mm
Depth
630 mm
Weight
32 kg
Features
Impedance with toggled low pass filter 4, LD Systems "Evolutive" handles, Threaded flange M20
