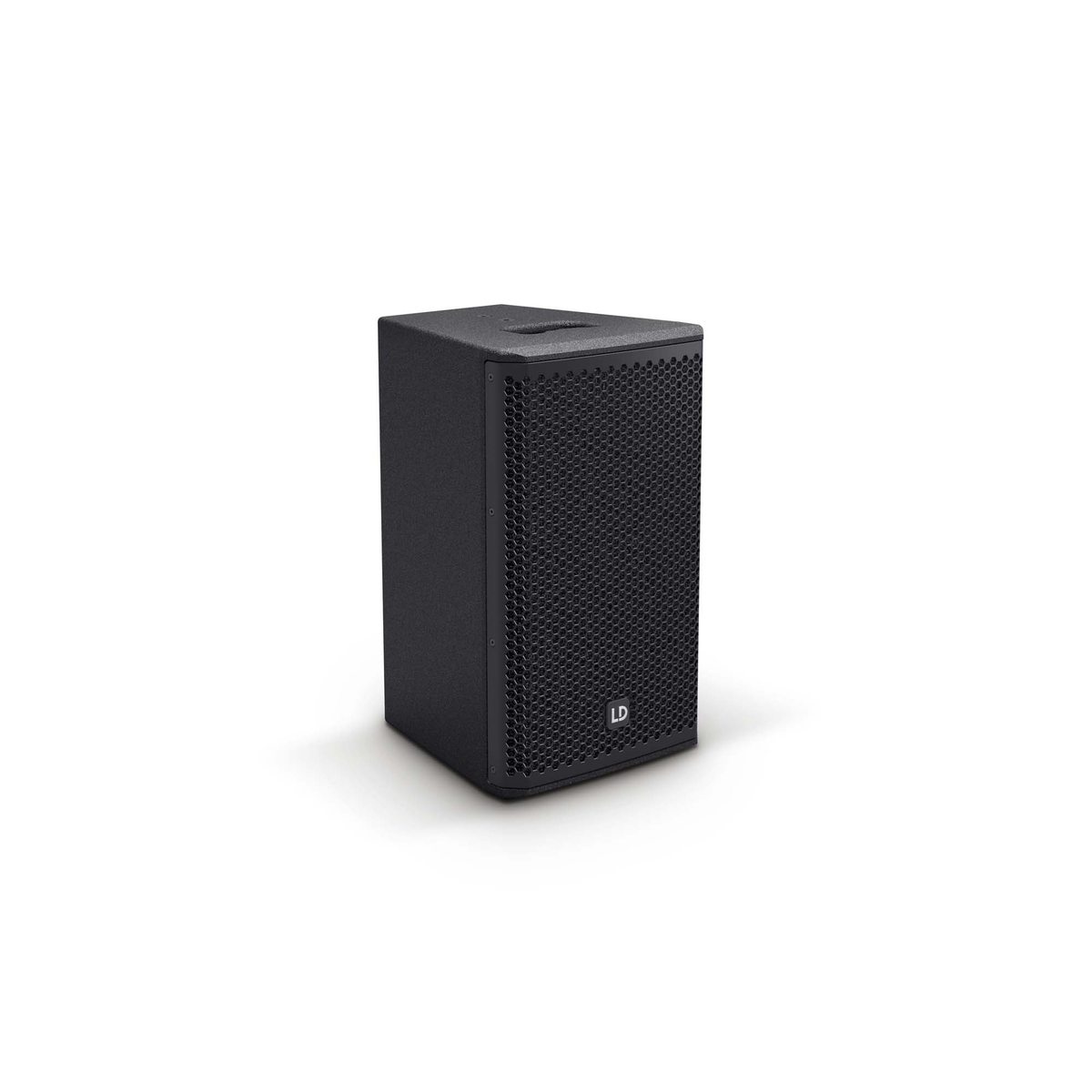

STINGER 8 G3

STINGER 8 G3

2-Way Passive 8” Bass Reflex PA Loudspeaker

Item no.: LDEB82G3

Guarantee: 24 months

EAN: 4049521206641

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:STINGER G3

Versions:

Item highlights:

  • 2-way passive 8” bass reflex PA speaker
  • 250 watts RMS power handling
  • 119 dB maximum SPL
  • 8“ custom woofer and BMS compression driver
  • BEM optimized HF waveguide for uniform coverage
  • Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points
  • Shock-resistant front grill provides maximum speaker protection
  • 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
  • Large selection of smart installation and transport accessories

Specifications

Type
Passive
Power handling (Peak)
500 W
Power handling (RMS)
250 W
SPL (1 W/1 m)
95 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %)
119 dB
Frequency response
70 - 20,000
Impedance
8 Ω
Speaker system
2-way system
Beam angle
Hor.: 90° / Vert.:50°
Number of inputs
1
Input connector types
Standard speaker connector 4-pole male & speakON®
Number of outputs
1
Output connector types
Standard speaker connector 4-pole male & speakON®
Colour
Black
Size
8 "
Outer diameter
2,032 mm
Magnet
Ferrite
Voice coil
2 "
Driver size
1 "
Magnet
Ferrite
Voice coil
1 "
Design
Bass reflex
Number of handles
1
Mounting type
M10 for SuperClamp
Flange
36 mm (0°/5°)
Cabinet material
Birch plywood
Material thickness
12 mm
Front grille material
Aluminium
Width
270 mm
Height
457 mm
Depth
290 mm
Weight
9.9 kg
Included accessories
Mains cable

Description

STINGER 8 G3

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The STINGER® 8 G3 provides 250 watts of continuous power; the maximum sound pressure level is 118 dB. Its specially developed 8" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion. The STINGER® 8 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The STINGER® 8 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.
