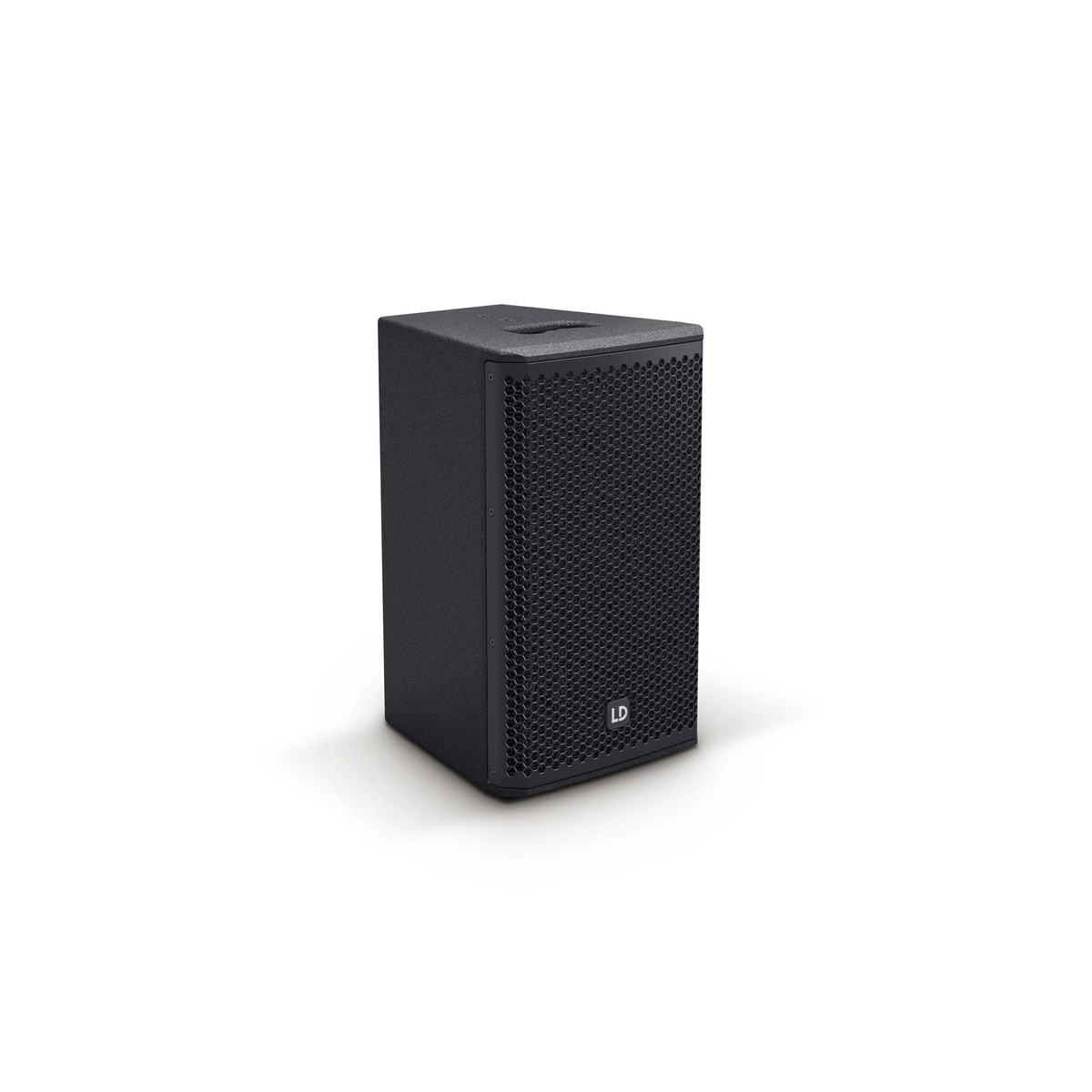

STINGER 8 A G3

STINGER 8 A G3

Active 8" 2-way bass-reflex PA Loudspeaker

Item no.: LDEB82AG3

Guarantee: 24 months

EAN: 4049521206689

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:STINGER G3

Versions:

Item highlights:

  • 2-way active 8” bass reflex PA speaker
  • High-efficiency 300 watts RMS digital power stage and 129 dB max. SPL
  • Multi-purpose design for fullrange, satellite and monitor applications
  • Application presets for quick frequency response contouring
  • BEM optimized HF waveguide for uniform coverage
  • 8” custom woofer and BMS compression driver
  • DynX® DSP technology for distortion-free performance
  • 2 line/mic input channels with individual gain controls plus mono mix out
  • 12 mm birch ply cabinet with ultra rugged polyurea finish and M10 suspension points
  • Shock-resistant front grill provides maximum speaker protection
  • 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
  • Large selection of smart installation and transport accessories

Specifications

Type
Active
Peak output power
600 W
RMS output power
300 W
Amp class
Class D
Max. SPL peak
125 dB
Frequency response
70 - 20,000 Hz
Speaker system
2-way system
Beam angle
Hor.: 90° / Vert.:50°
Number of inputs
2
Input connector types
XLR combo socket
Number of outputs
1
Output connector types
XLR 3-pole male
Protection features
Multiband Limiter, Overheating, Overvoltage, Overload
Colour
Black
Number of line inputs
2
Line-In connector type
XLR combo socket
Number of line outputs
1
Line outputs connector type
XLR 3-pole male
Size
8 "
Outer diameter
203.2 mm
Magnet
Ferrite
Voice coil
2 "
Driver size
1 "
Magnet
Ferrite
Voice coil
1 "
Operation voltage
100 V AC - 240 V AC (±10 %) / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Mains connector
Standard speaker connector 4-pole male & speakON®
Design
Bass reflex
Number of handles
1
Mounting type
M10 flying points
Flange
36 mm (0°/5°)
Cabinet material
Birch plywood
Material thickness
12 mm
Front grille material
Aluminium
Ambient temperature
0 - 40 °C
Maximum air humidity (non-condensing)
80 %
Width
270 mm
Height
457 mm
Depth
290 mm
Weight
10.5 kg
Included accessories
Mains cable

Description

STINGER 8 A G3

Engineered for rock-solid reliability day in, day out this active 2-way system is a truly professional performer. With its multi-purpose bass reflex construction and carefully contoured, user-friendly presets it is equally suitable for fullrange, satellite or floor monitor applications. The STINGER® 8 A G3 is powered by high efficiency Class D amplification with a hefty 300 watts RMS output. It drives a custom designed 8” woofer and BMS compression driver delivering a punchy low end and smooth, crisp highs. The HF waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a controlled uniform coverage pattern. The STINGER® 8 A G3 incorporates LD Systems’ proprietary DynX® DSP technology to ensure top-level performance with maximum clarity and punch at all times. Processing includes crossover and multiband limiter functions for accurate time alignment and pristine, distortion-free audio. Designed to be a real workhorse throughout, the enclosure is made of rigid birch ply and coated with ultra tough polyurea for extraordinary strength and durability. Sporting a steel front grille, Dual-Tilt pole receptacle, multiple suspension points and ergonomic handles the STINGER® 8 A G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitate live and installed applications.
