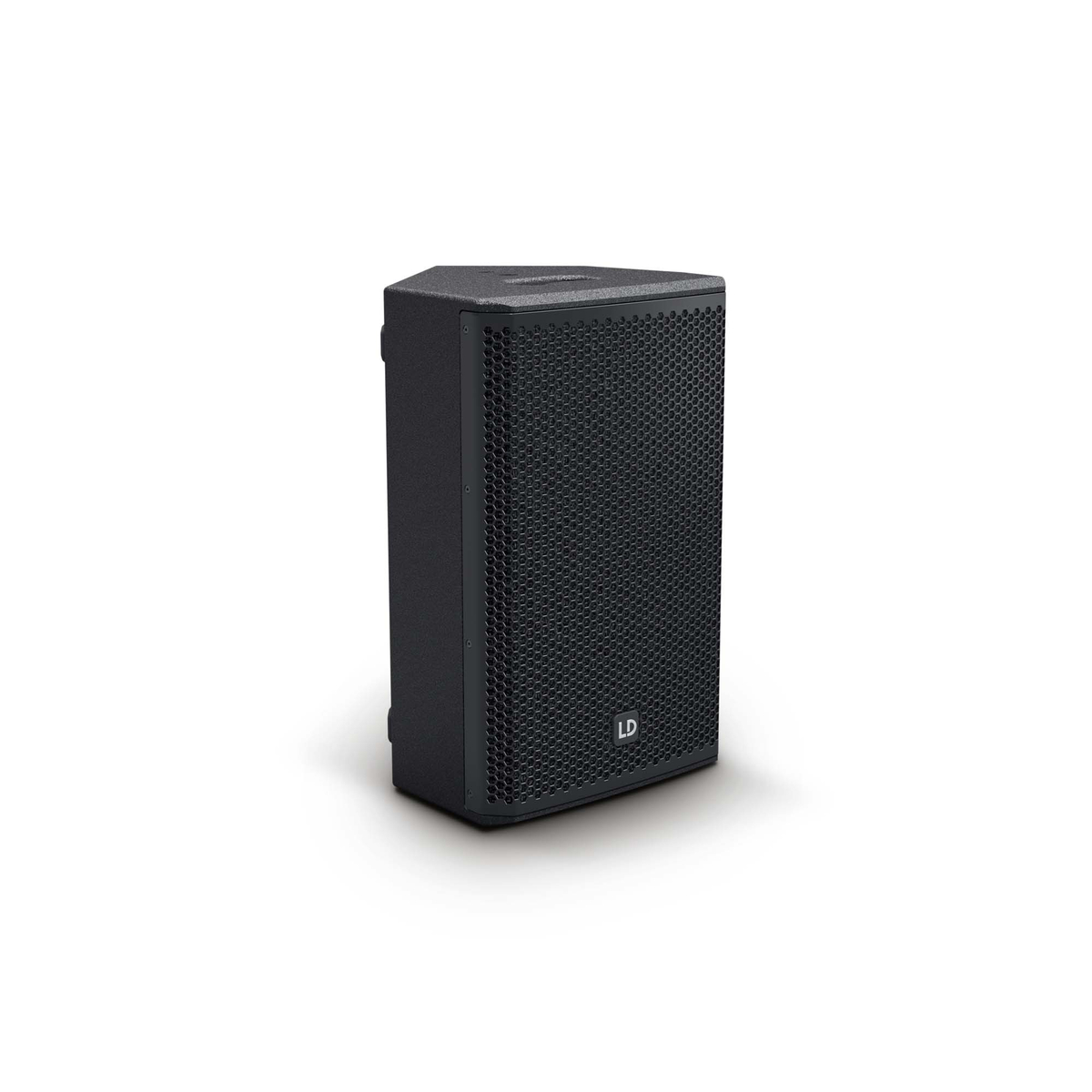

STINGER 10 A G3

STINGER 10 A G3

Active 10" 2-way bass-reflex PA Loudspeaker

Item no.: LDEB102AG3

Guarantee: 24 months

EAN: 4049521206726

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:STINGER G3

Versions:

Item highlights:

  • Active 10" 2-way bass-reflex PA speaker
  • 127 dB max. SPL and 300-watt RMS performance with a highly-efficient digital amplifier
  • Perfect all-rounder for full-range, satellite and monitor applications
  • Practical presets for fast and user-specific frequency tuning
  • Homogeneous dispersion pattern thanks to a BEM-optimised tweeter wave guide
  • 10" custom woofer and BMS tweeter driver
  • Distortion-free sound at even maximum volumes, thanks to DynX® DSP technology
  • 2 line/mic input channels with individual gain controllers plus mono mix output
  • 12 mm birch plywood housing with ultra-robust polyurea coating and M10 rigging points
  • Shock-resistant front grille for optimal protection of the speaker.
  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle
  • Extensive and smart accessories for installation and transport

Specifications

Type
Active
Peak output power
600 W
RMS output power
300 W
Amp class
Class D
Max. SPL peak
127 dB
Frequency response
65 - 20,000 Hz
Speaker system
2-way system
Beam angle
90° (hor.) / 50° (vert.)
Monitor angle
54 °
Number of inputs
2
Input connector types
XLR combo socket
Number of outputs
1
Output connector types
XLR 3-pole male
Protection features
Multiband Limiter, Overheating, Overvoltage, Overload
Colour
Black
Number of line inputs
2
Line-In connector type
XLR combo socket
Nom. Sensitivity (< 1% THD, 1 kHz, max. Gain)
-9 dBu
Number of line outputs
1
Line outputs connector type
XLR 3-pole male
Size
10 "
Outer diameter
254 mm
Magnet
Ferrite
Voice coil
2 "
Driver size
1 "
Magnet
Ferrite
Voice coil
1 "
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Mains connector
Standard speaker connector 4-pole male & speakON®
Design
Bass reflex
Number of handles
1
Mounting type
M10 for SuperClamp
Flange
36 mm (0°/5°)
Chassis material
Birch plywood
Material thickness
12 mm
Front grille material
Aluminium
Ambient temperature
0 - 40 °C
Maximum air humidity (non-condensing)
80 %
Width
325 mm
Height
527 mm
Depth
318 mm
Weight
12.7 kg
Included accessories
Mains cable

Description

STINGER 10 A G3

This highly professional 2-way active system is designed for absolute, long-term reliability. With its multi-functional bass reflex housing and finely tuned, user-friendly presets, the speakers are suitable as full-range, box, satellite and floor monitors. The STINGER® 10 A G3 is powered by a highly efficient Class-D amplifier with a powerful 300-watt continuous output. The specially developed 10" woofer and a BMS tweeter driver achieve a powerful bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion. LD Systems’ proprietary DynX® DSP technology means that the STINGER® 10 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The STINGER® 10 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.
