Item no.: LDSAT262G2W
Guarantee: 24 months
EAN: 4049521222825
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:SAT G2
Versions:
Item highlights:
- Passive 2-way bass-reflex installation speaker
- 180 W permanent load capacity
- 116 dB maximum sound-level pressure
- 2 x 6.5" custom woofer and a 1” Celestion tweeter driver
- Rotating CD horn with 80° x 60° dispersion
- For vertical or horizontal use
- speakON-compatible and terminal block input
- 4 x M8 mounting holes
- Shock-resistant front grille for optimum speaker protection
- Extensive range of smart accessories for installation
- Available in black or white
Specifications
Description

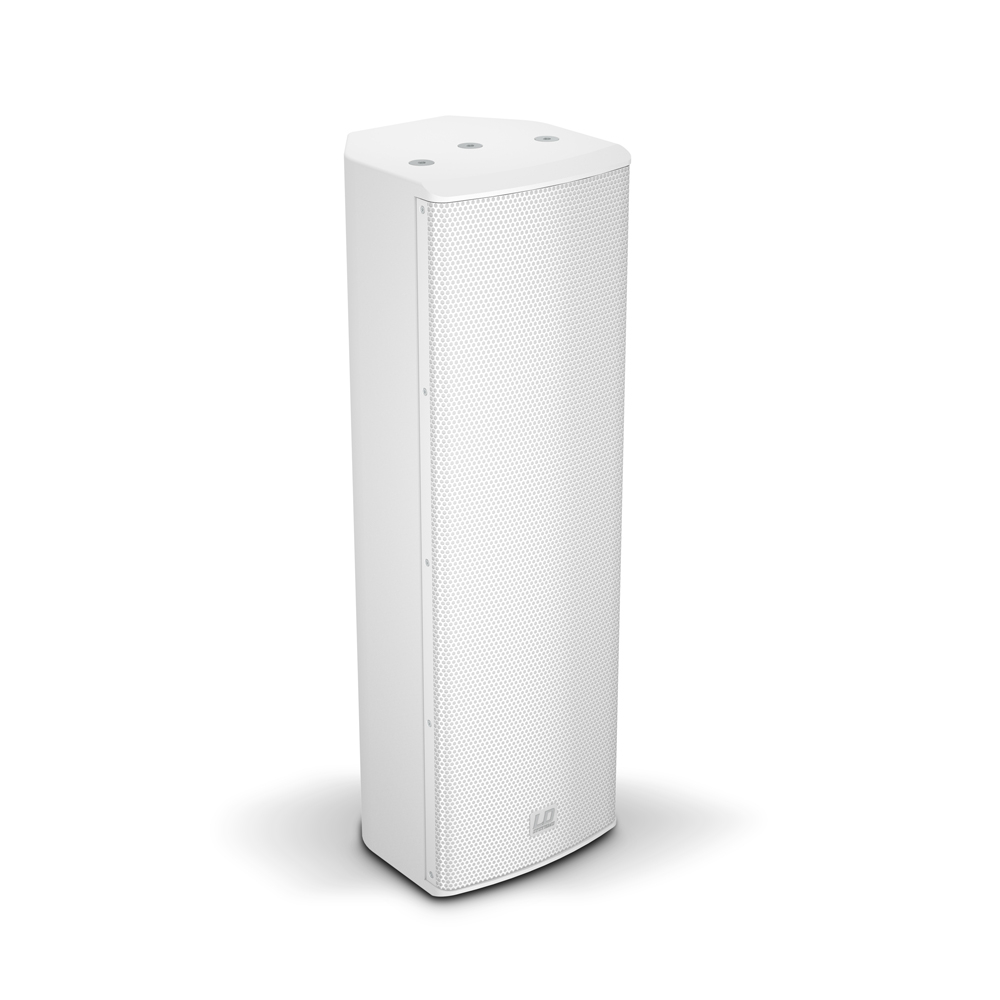

SAT 262 G2 W
With its slim, streamlined design, the LD Systems SAT 262 G2 is excellently suited for permanent installation and discreet integration in virtually any setting. It features two 6.5" custom woofers and a 1” Celestion compression driver connected to a rotating CD horn with 80° x 60° dispersion. This makes the passive 2-way speaker ideal for both vertical and horizontal use.
The SAT 262 G2 attains a maximum sound-level pressure of 116 dB over a frequency response curve of 65–19 kHz with a permanent load capacity of 180 watts. The reflex housing is made of 12 mm MDF and is equipped with four M8 mounting holes. A speakON-compatible socket and a terminal block provide input options, while an additional terminal block serves as an output for convenient parallel connection.
Special wall holders are available as an accessory to facilitate wall mounting. The SAT 262 G2 is available in black (Art. No. LDSAT262G2) or white textured finish (Art. No. LDSAT262G2W).
