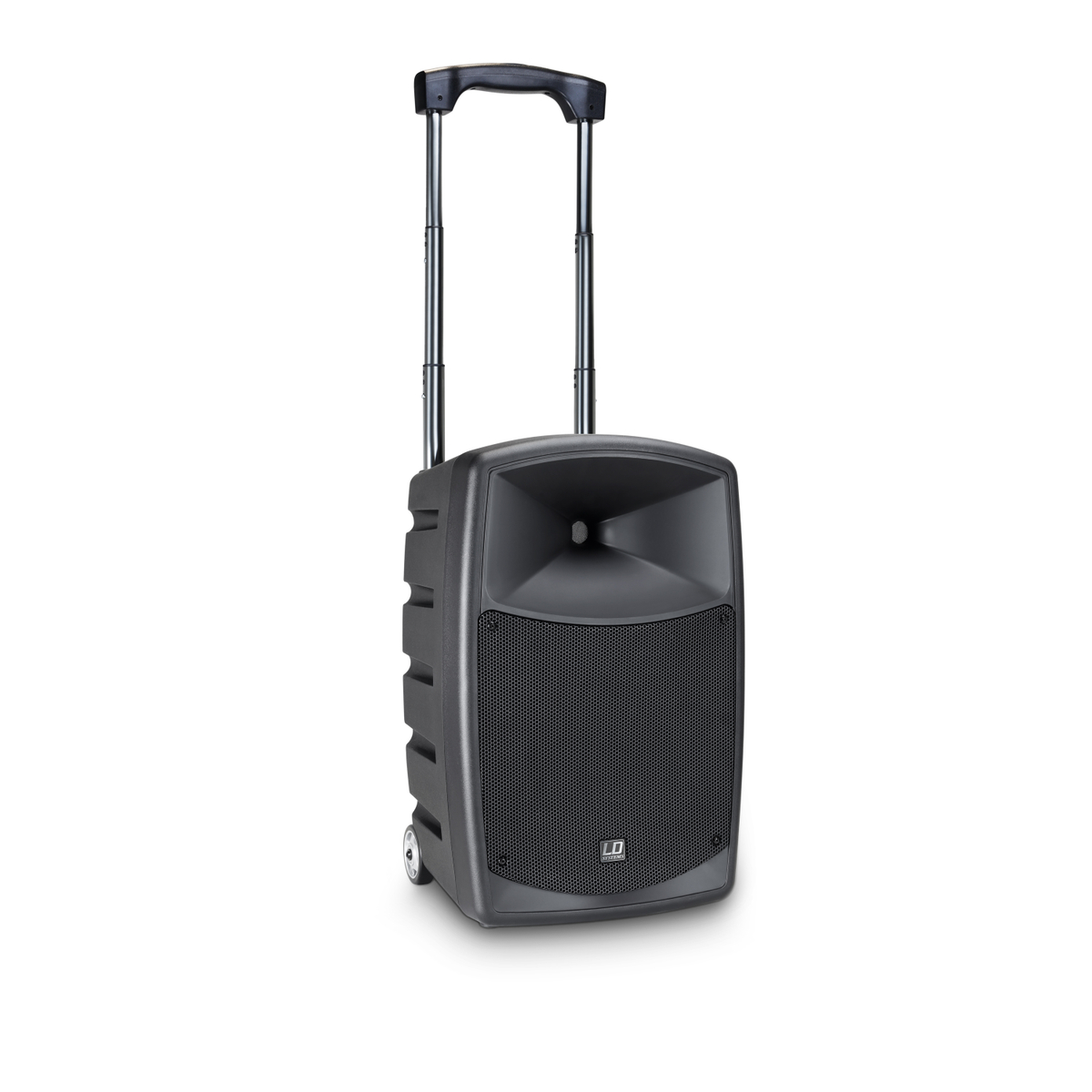

ROADBUDDY 10 BASIC

ROADBUDDY 10 BASIC

Battery Powered Bluetooth Speaker with Mixer

ROADBUDDY 10 BASIC

Item no.: LDRBUD10BASIC

Guarantee: 24 months

EAN: 4049521610073

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:ROAD

Item highlights:

  • Battery-powered speaker solution
  • Bluetooth player with USB port and SD card slot
  • Class D power amplifier with 480 watts of peak power
  • 2 combo sockets for microphone or line inputs
  • 3.5 mm Aux input
  • Master section with 2-band EQ
  • Built-in wheels, pull-out handle and fixing for 35 mm tripod mount

Specifications

Product type
Battery-powered PA speaker
Low/mid Woofer dimensions
10 "
Woofer dimensions (mm)
254 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
HF driver dimensions
1 "
HF driver dimention (mm)
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
Amplifier
Class D
RMS
120 W
Peak power
480 W
Frequency response
55 - 18000
SPL (1W/1m)
96 dB
Max. SPL
115 dB
Protection circuits
Short circuit, overload protection, over-current
Controls
AUX / MP3 switch, CD / Tape IN Level, Echo, Total volume, high, low, Mic 1 Level, Mic 2 Level
Indicators
Charge/battery status, Power
Supported media
Bluetooth, SD Card, USB stick
Supported formats
MP3 file, WAV-CD, WMA file
Media player controls
equalizer, Mode (Menu / Bluetooth /SD / USB), Next Track, Play / Pause, Repeat, Stop, Previous Track
Media player display elements
Lighted multifunctional LC display
Line inputs
1
Line input connectors
2 x RCA, 2 x XLR, 3.5 mm jack, 6.3 mm jack
Mic inputs
2
Mic inputs
2 x XLR, 6.3 mm jack
Power supply
Switching power supply
Operating voltage
100 V - 120 V / 60 Hz, 220 V - 240 V AC / 50 Hz
Rechargeable batteries
12 V / 5 Ah
Cabinet material
Polypropylene
Cabinet construction
Bass Reflex
Width
415 mm
Height
525 mm
Depth
328 mm
Weight
16,5 kg
Other features
extendable handle, IR Remote for Media Player, Stand mount 36 mm, transport handle, Transport casters

Description

ROADBUDDY 10 BASIC

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driveris operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peakpower. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. An IR-remote control for the player are included.

For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input viaRCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.

The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to twohand-held transmitter microphones The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
