REVOLVER 12 A
Archive

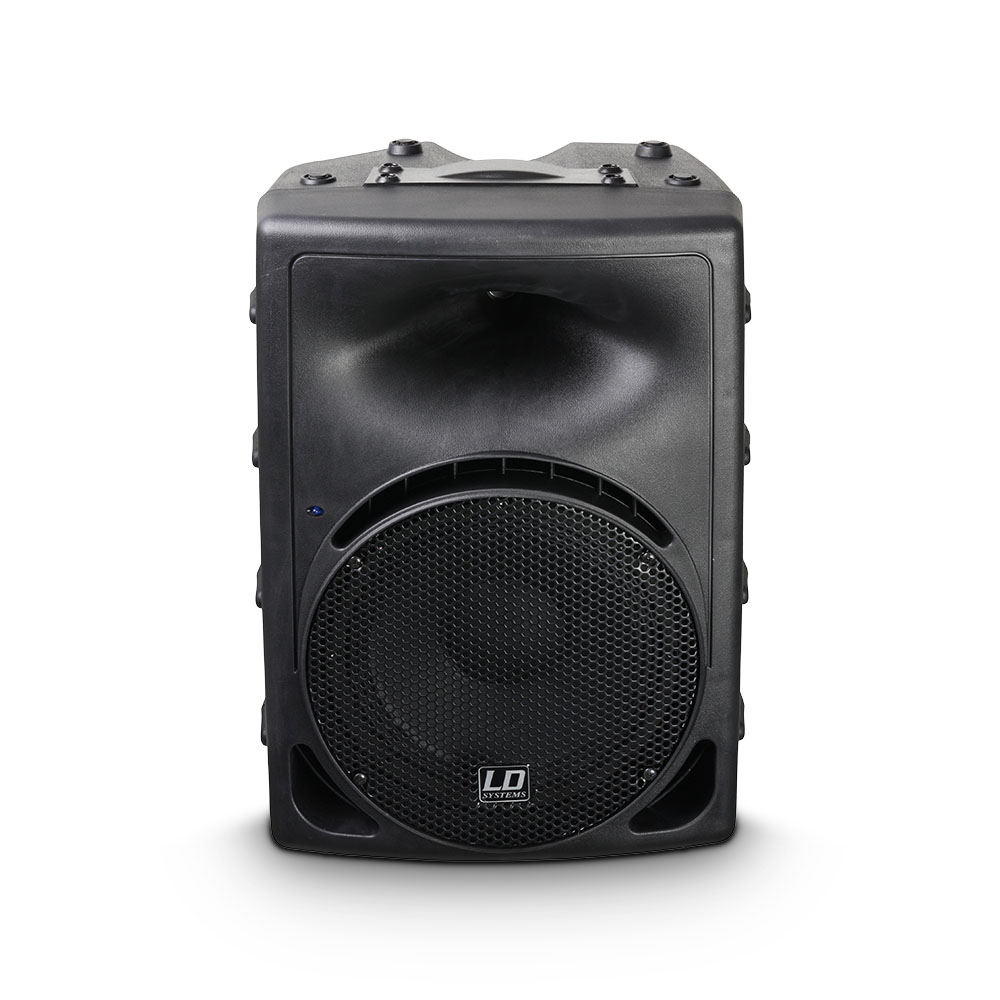

REVOLVER 12 A

12" active PA Speaker

Item no.: LDPR12A

Guarantee: 24 months

EAN: 4049521070310

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:REVOLVER

Item highlights:

The revolver series signals the start of a new generation of plastic speakers.

More power, more volume and a high sound pressure level with an improved bass response - all these characteristics make the Revolver series a universal PA solution. The revolver series can be implemented in a wide range of applications, as a PA, in installations or as monitor speakers. The active versions are equipped with a B&O ICE power Class D module which guaranties high reliability and minimum weight. Additionally, the revolver series offers all of the common protection circuits. Throughout the whole series, high end FE loudspeakers (8"/10") respectively ND loudspeakers (12"/15") have been used exclusively.

Specifications

Product type
PA loudspeaker
Type
Powered
Low/mid Woofer dimensions
12 Inch
Woofer dimensions (mm)
304 mm
Woofer magnet
Neodymium
Woofer brand
Custom-made
HF driver dimensions
1 Inch
HF driver dimention (mm)
25 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
Amplifier
Class D, B & O ICEpower 125ASX2
Dispersion (H x V)
120 x 60 °
System Power (RMS)
450 W
Frequency response
60 - 19.000
Max. SPL (continuous)
123 dB
Protection circuits
thermal overload, overload, Short circuit, HF Driver
Controls
mains switch (on/off), Mic Gain, volume, Mid, Line Gain, Treble, Bass
Indicators
clip, Power
Line inputs
2
Line input connectors
RCA, XLR
Mic inputs
2
Mic inputs
XLR, 6.3 mm jack
Line outputs
2
Line output connectors
XLR, 6.3 mm jack
Power supply
Switching power supply
Operating voltage
220 V AC - 240 V AC, 50-60 Hz
Cabinet material
Polypropylene
Cabinet construction
Bass Reflex
Monitor angle
50 °
Width
410 mm
Height
620 mm
Depth
330 mm
Features
Speaker Pole Mount (36 mm)
