Item no.: PPB10
Guarantee: 60 months
EAN: 4049521079566
Sliding scale: 1
Unit: Piece
Packaging unit: 6
Series:Palmer Press Patch Boxes
Versions:
Item highlights:
- All inputs and outputs are balanced transformer isolated
- Extremely reliable: Should one output be shorted, the other outputs remain unaffected
- Line input and outputs
- Adjustable input gain (-8 to +25dB)
- Level meter
- Headphone output to monitor the input level, headphone volume adjustable
- Individual ground lift switches for each output
- Ground Lift switch for the input
- Expandable setup thanks to the Bus In/Out sockets - allowing you to cascade numerous PPB10 (or PPB20)
Specifications
Product type
Splitters
Type
line split
Split type
1 in 10
Channels
1
Number of inputs
1
Input connectors
XLR
Max. input level
+ 20 dB
Adjustable input
Yes
Number of split-outputs per canal
10
THRU outputs/channel
1
Max. output level
+ 4 dB
Nominal power consumption
5 W
Maximum power consumption
8 W
Output connectors
XLR
Adjustable output
No
Transformer isolated outputs
Yes
Controls
ground lift, input gain, phones level, Power
Power supply
integrated (115 / 230 V)
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
480 mm
Width
19 "
Depth
205 mm
Height
45 mm
Height
1 U
Weight
4,18 kg
Description

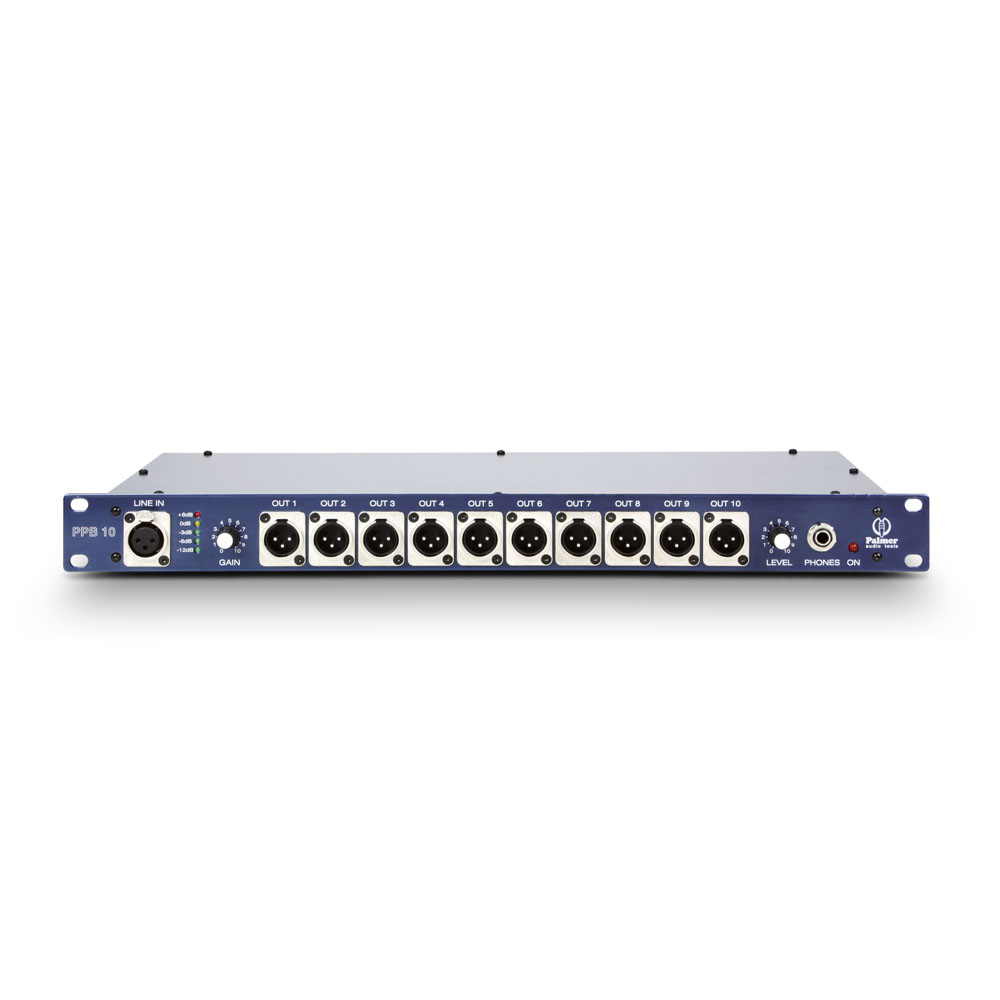

PB 10
The PPB10 is a compact version of the well known and established PPB20 from Palmer. The PPB10 is a 10 channel audio splitter for press conferences and other applications. On a transformer split basis, one line input is split out to ten outputs.
