MIX 6A G2

6.5" Active PA Speaker with Integrated 4-Channel Mixer

A new model exists for this item:

MIX 6 A G3

LDMIX62AG3

Item no.: LDMIX6AG2

Guarantee: 24 months

EAN: 4049521169069

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:STINGER G2

Questions about the item?

Item highlights:

active 2-way loudspeaker
integrated 4-channel mixer with EQ and 24-Bit DSP
2 x 280 watts peak power class D amplification with slave output
6,5" woofer, 1" HF driver, 80 Hz - 20 kHz
tight and punchy bass reflex design
2 pole mount inserts for vertical and horizontal orientation

Specifications

Product type

PA loudspeaker

Type

active

Woofer dimensions

6.5 Inch

Woofer dimensions (mm)

165.1 mm

Woofer brand

Custom-made

Tweeter dimensions

1 Inch

Tweeter dimensions (mm)

25.4 mm

Tweeter brand

Custom-made

Dispersion (H x V)

80 x 70 °

Frequency response

80 - 20000

Amplifier

Class D

Amplifier output (RMS)

2x70 W

Amplifier output (peak)

2x280 W

Max. SPL

122 dB

Protection circuits

thermal overload, over-current, limiter, overload, Short circuit

Channels

4

Mic inputs

3

Mic inputs

XLR, 6.3 mm jack

Controls for Mic Inputs

level, Hi-Z Switch (channel 1 only), DFX Send, EQ Low, EQ Hi

Input Impedance Mic Inputs

(unbalanced) 14 KOHM

Input Sensitivity Mic Input

70 MV

Line inputs

1

Line input connectors

2 x RCA, 3.5 mm TRS

Controls Line Inputs

level, DFX Send, EQ Hi, EQ Low

Input Impedance Line Inputs

(unbalanced) 4.4 KOHM

Input Sensitivity Line Inputs

- 5 dBu

Hi-Z inputs

1

Hi-Z input connectors

6.3 mm jack

Input Impedance Hi-Z Input Connectors

100 KOHM

Monitor Line Outputs

1

Connector Type Monitor Line Output

6.3 mm stereo jack (balanced)

Controls for Monitor Line Output

Monitor Volume

Max Output Level Line Output Monitor

28 dBu

Record Outputs

1

Connector Type Record Output

2 x RCA

Max Output Level Record Output

20 dBV

Reinforced Main Outputs

1

Connector Type Reinforced Main Outputs

6.3 mm jack (min. 4 Ohm impedance)

Increased power main output (at 4 ohm)

max. 70 W / 140 W

DSP Number of Programs

16

DSP Controls

presets, DFX Return, Mute switch

DSP Display Elements

Peak LED

Main section controls

EQ Low, EQ Hi, Power On/Off, switch operating voltage, Phantom Power, EQ Mid, Main level

Main section indicators

4-segment Level Meter, power LED

Phantom power

15 V

Mains connector

IEC socket

Power supply

transformer

Operating voltage

110 - 120 V ~ 50/60 Hz or 220 - 240 V ~ 50/60 Hz, switchable

Power consumption

180 W

Cabinet construction

Bass Reflex

Cabinet material

MDF

Cabinet surface

texture paint

Cabinet colour

Black

Width

214 mm

Height

323 mm

Depth

222 mm

Other features

2 x 16 mm pole mount socket, rubber feet

Description

MIX 6A G2

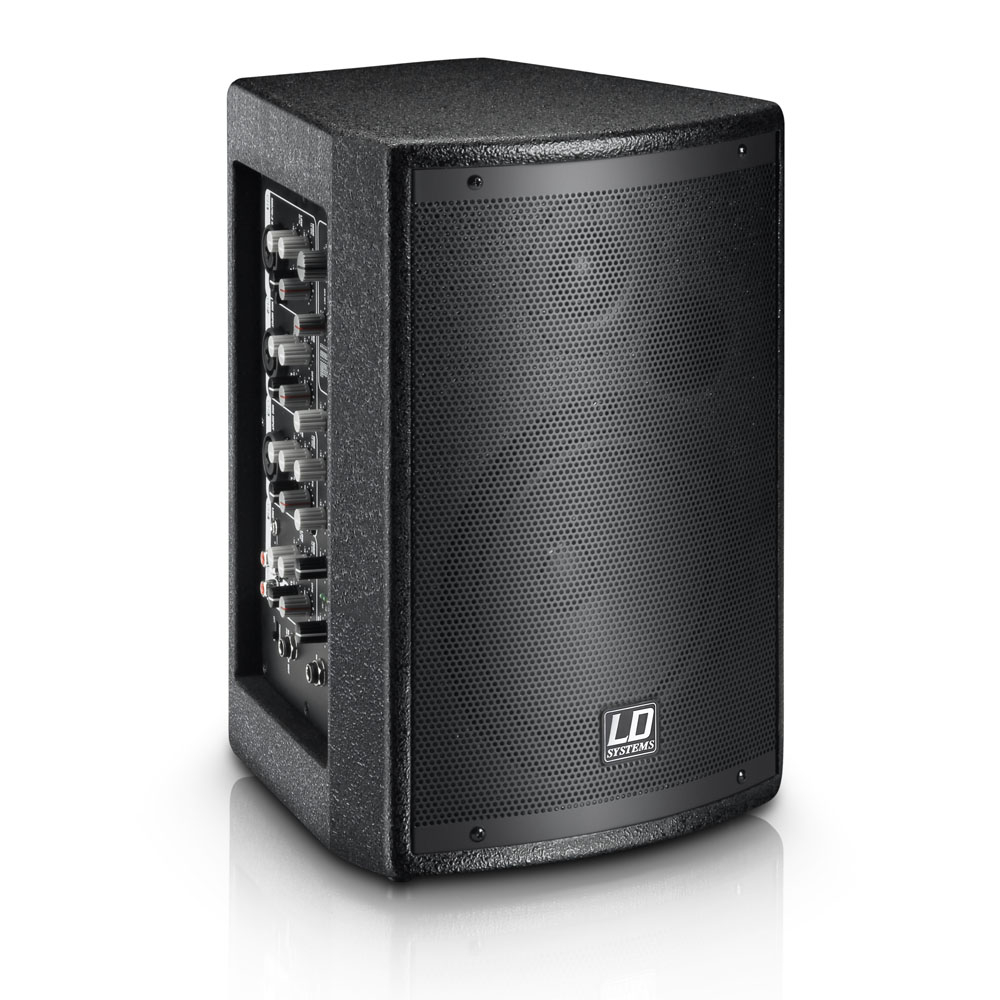

LD Systems Stinger MIX 6 A G2 Active 2-Way Loudspeaker with Integrated Mixer

With a built-in mixer, the compact, lightweight Stinger MIX 6 AG2 active loudspeaker is the perfect choice for small-scale PA and personal monitoring applications. It features a 6.5" woofer and 1" HF transducer with an 80 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering amazing sound with clarity and punch.

The integrated mixer provides a stereo line and 3 microphone channels with high and low EQ, switchable hi-Z input and phantom power plus 24-bit digital effects. It allows for connecting a wide variety of sources including MP3 and CD players, iPods, instruments and condenser mics. The output section includes a 3-band master EQ for overall tone shaping and feedback control, 4-segment LED metering, RCA recording outputs and an adjustable monitor out. The Stinger MIX 6 A G2 incorporates a Class D amplifier with 2x280 watts peak power and 6.3 mm TRS output to power its optional passive companion Stinger MIX 6 G2.

Dual bottom and side stand mount inserts permit both vertical and horizontal setup, the latter putting the mixer controls right at your fingertips. On its own or in tandem with the passive unit, the Stinger MIX 6 A G2 provides awesome performance and versatility in an easily portable package.

A transport bag, a slave speaker and a speaker stand are available optionally.
