Item no.: LDMAUI44SE
Guarantee: 24 months
EAN: 4049521175084
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:MAUI
Item highlights:
- 2 x 12" powerful low resonance bandpass subwoofer
- 800 Watts RMS / 129 dB peak SPL / 40 - 140 Hz
- Sub extension for MAUI 44 to double the bass performance (+6 dB)
- Slave preset - follows settings of main subwoofer
- Standalone preset - For use with any other PA speaker
- LECC DSP for constantly adjusted bass response
- Protection circuits for secure, reliable operation
Specifications
Description
MAUI 44 SUB EXT

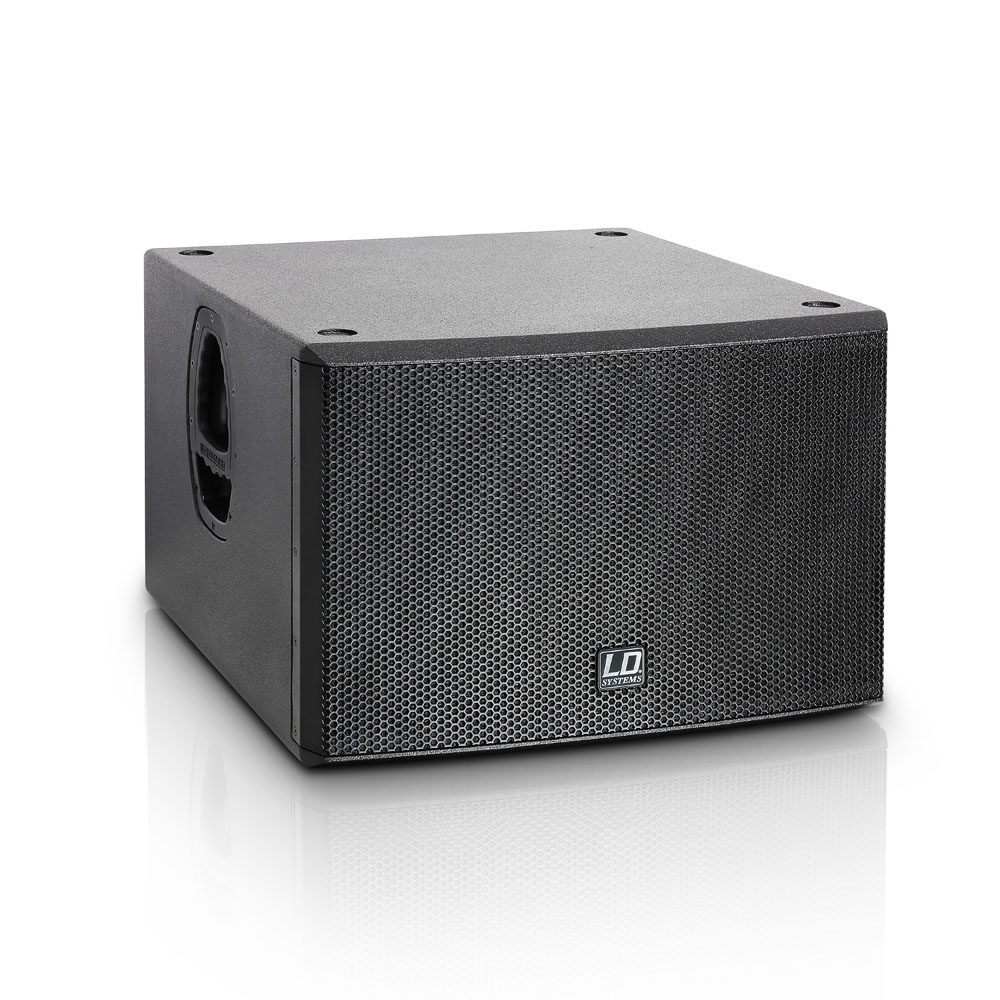

The LD Systems MAUI44SE is a powerful active subwoofer, especially designed for the extension of MAUI44 systems. The compact bandpass design augments the deep bass performance of the system by twice the SPL to (+6 dB) and can be integrated into the system within seconds. Through a slave preset, the MAUI44SE takes over the settings of the system subwoofer, a standalone preset allows it to be used with other satellite speakers.
The housing made of 15 mm multiplex is equipped with two 12" neodymium woofers. The Class D amplifier of the MAUI44SE with highly efficient switching power supply provides a whopping 800 watts RMS; protection circuits against overvoltage, short circuit and overcurrent ensure reliable operation. The frequency response of the subwoofer ranges from 40 to 140 Hz, the maximum sound pressure is 129 dB.
An integrated LECC DSP with 24-bit converters and limiters, EQ, compressor and crossover functions provide an optimal bass reproduction. Furthermore, the MAUI44SE is equipped with controls for the subwoofer level, crossover frequency and phase, LED indicators and a Neutrik PowerCon mains connector. The ergonomic LD Systems Evolutive carrying handles allow for convenient transportation; an optional castor board can securely connect to the subwoofer via butterfly latches.
