MAUI® 11 G3 SUB

MAUI® 11 G3 SUB

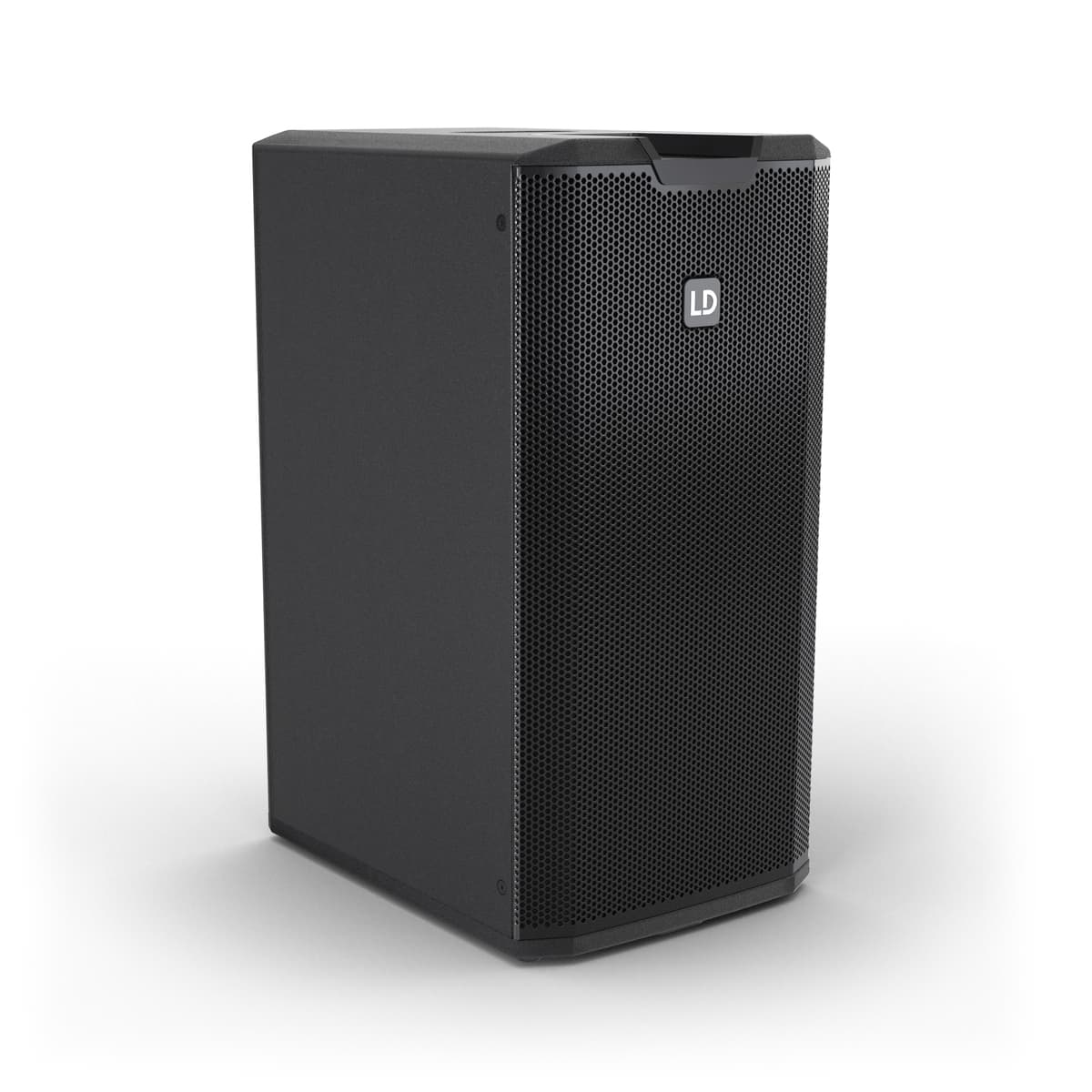

Powered 2 x 8" Subwoofer for MAUI 11 G3

Item no.: LDM11G3SUB

Guarantee: 24 months

EAN: 4049521712913

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:MAUI

Versions:

Item highlights:

  • Powered 2 x 8" subwoofer with flow-optimised bass-reflex ports
  • 2 x 8" custom-designed woofer with deep bass down to 39 Hz
  • Preset for cardioid subwoofer configuration
  • DynX® DSP (Gen. 2) technology for distortion-free sound at maximum volume
  • Automatic Setup Detection (MAIN / FOLLOWER)
  • Rugged subwoofer housing made out of polyurea-coated birch plywood
  • Shockproof front grille for ultimate speaker protection
  • Two ergonomic handles for easy handling

Specifications

Peak output power
1,460 W
RMS output power
730 W
Amp class
Class D
SysLink®
Yes
Max. SPL peak
125 dB
Frequency response (-10 dB, rel. Avg)
39 - 200 Hz
Number of inputs
2
Input connector types
XLR combo socket
Number of outputs
3
Output connector types
XLR 3-pole male
Protection features
Multiband Limiter, Short circuit, Overheating, Direct current
Colour
Black
Bluetooth® version
Bluetooth® 4.2
Features
Audio Streaming (A2DP), TrueWireless™ Stereo, TrueWireless™ Mirroring, App control
Supported audio codecs
SBC, AAC
Number of speaker outputs
1
Speaker output connection type
XLR 3-pole male
Number of satellite outputs
1
Size
8 "
Quantity
2
Magnet
Ferrite
Voice coil
2 "
Operation voltage
110 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Mains connector
Mains socket indoor power in male & powerCON®
Mains fuse
T3.15AL/250 V
Design
Bass reflex
Number of handles
1
Chassis material
Birch multiplex
Material thickness
15 mm
Coating
Polyurea
Front grille material
Aluminium
Cooling system
Convection cooling
Ambient temperature
0 - 40 °C
Maximum air humidity (non-condensing)
80 %
Width
305 mm
Height
607 mm
Depth
403 mm
Weight
20.5 kg
Included accessories
Mains cable

Description

MAUI® 11 G3 SUB

Crisper and more powerful bass with additional LD MAUI 11 G3 SUB subwoofer.

With the MAUI 11 G3 SUB subwoofer, you extend the cardioid characteristics of our professional column speaker series right into the bass range.

What does this mean?

Simply position the SUB next to your MAUI® 11 G3 facing the rear direction, switch on the Cardioid preset and you will have a quieter and controlled Low-End on the back while still keeping the punch on the front. Low-End frequencies on the back of the system will be dampened by -15 dB. For extra Bass, keep the SUB in the same direction as your MAUI® 11 G3 and switch off the Cardioid preset.

Setting up the SUB with your MAUI® 11 G3 is straight forward and fast. Thanks to its automatic set-up detection system the SUB immediately switches to FOLLOWER mode as long as no column is attached.

Also recommendable is the protection cover and castor board to make transportation easy and keep the SUB as long as possible free of any touring-damage.

The MAUI® 11 G3 SUB features the same design construction as the MAUI® 11 G3 subwoofer and will be the perfect addition to get your Low-End in control.
