GT SUB 18 A
Archive

GT SUB 18 A

18" powered subwoofer

Item no.: LDGTSUB18A

Guarantee: 24 months

EAN: 4049521168413

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:GT

Item highlights:

  • Multifunctional Lightweight Subwoofer
  • Innovative Design
  • 0/5° Dual-Tilt Flange
  • Up to 1600 Watt Class D 2-Band EQ
  • Specially developed Dura-Vinyl Surface
  • Rugged Hardware
  • Incredible Price/Performance Ratio

Specifications

Product type
PA subwoofer
Type
Powered
Low/mid Woofer dimensions
18 "
Woofer dimensions (mm)
457.2 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil (inch)
4 "
Woofer voice coil (mm)
101.6 mm
Amplifier
Class D
System Power (RMS)
400 W
Peak power
1600 W
Frequency response
32 - 200
Max. SPL (continuous)
125 dB
Max. SPL (Peak)
128 dB
Protection circuits
DC, Short circuit, limiter, over-current
Input impedance
27 k Ohm(s)
Input sensitivity
-2 dBu, max. 14 dBu
Controls
Sub Freq (adjustable low-pass filter), Sub level, Subwoofer Phase Reverse
Indicators
Limit, Power, Protect (protection circuit engaged), Signal
Line inputs
2
Line input connectors
6.3 mm jack, XLR
Line outputs
2 x direct output, 2 x sat output 100 Hz
Line output connectors
XLR
Power supply
Switching power supply
Operating voltage
100 V AC - 120 V AC, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)
Cabinet material
18 mm MDF
Cabinet surface
Dura-vinyl textured paint
Cabinet construction
Bass Reflex
Width
510 mm
Height
680 mm
Depth
710 mm
Weight
50,3 kg
Features
LD Systems GT handles, Threaded flange M20

Description

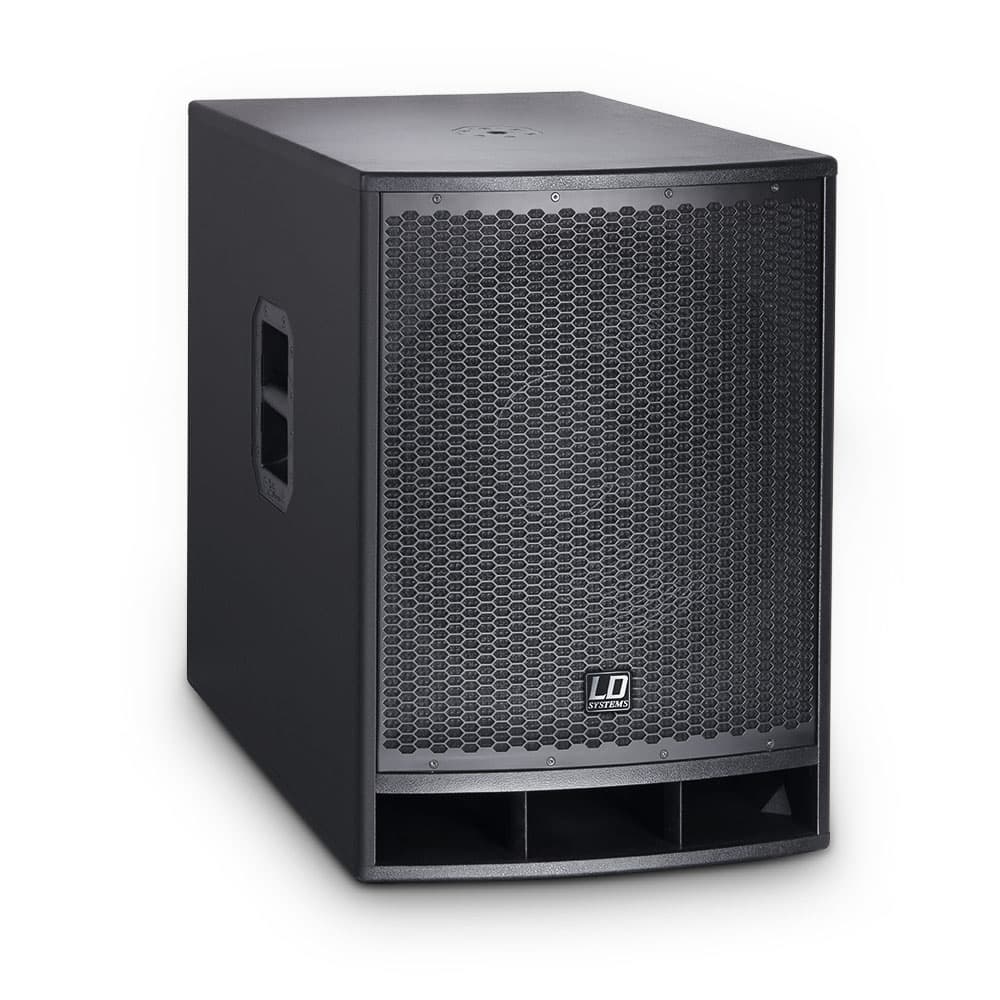

GT SUB 18 A

With its custom 18" low frequency transducer and a peak SPL of 128 dB, the GT SUB 18 A active subwoofer delivers a big, tight bottom end with superb transient response. Providing amazing value, it sports a sturdy MDF bass reflex enclosure with hard-wearing textured Dura-Vinyl covering, heavy duty steel handles, a steel grille with honeycomb pattern and threaded M20 pole insert.

The GT SUB 18 A is powered by a built-in Class D amplifier with 1600 watts peak output and high-efficiency SMPS as well as overcurrent and overvoltage protection. It provides a 32 Hz – 200 Hz frequency response and features XLR and 6.3 mm line inputs, XLR line output, an adjustable low-pass filter and filtered 100 Hz satellite output.

A protective cover is available as accessory.
