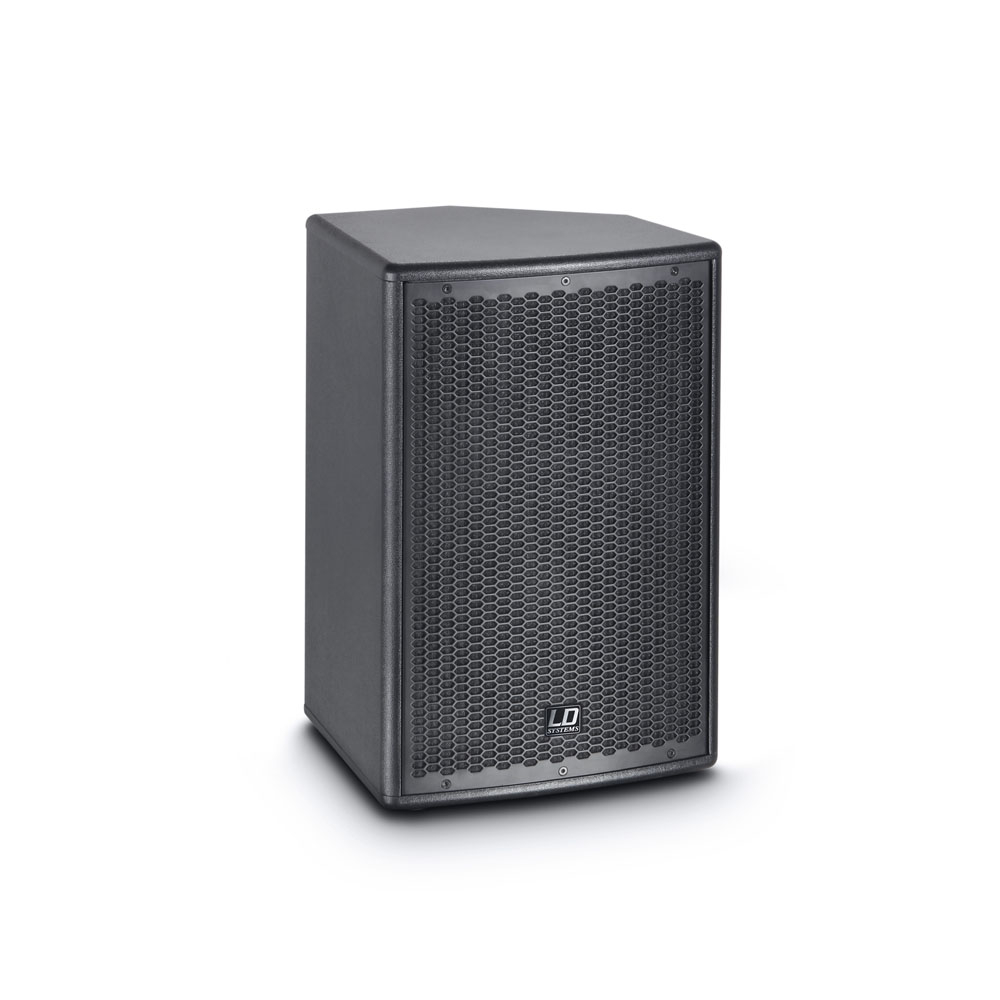

GT 10 A

VIDEO

Archive

GT 10 A

10” powered PA loudspeaker

Item no.: LDGT10A

Guarantee: 24 months

EAN: 4049521168048

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:GT

Questions about the item?

Item highlights:

Multifunctional Lightweight Speaker
Innovative Design
0/5° Dual-Tilt Flange
Up to 800 Watt Class D 2-Band EQ
Specially developed Dura-Vinyl Surface
Rugged Hardware
Incredible Price/Performance Ratio

Specifications

Product type

PA loudspeaker

Type

Powered

Low/mid Woofer dimensions

10 "

Woofer dimensions (mm)

254 mm

Woofer magnet

Ferrite

Woofer brand

Custom-made

Woofer voice coil (inch)

2 "

Woofer voice coil (mm)

50.8 mm

Horn

CD Horn

HF driver dimensions

1 "

HF driver dimention (mm)

25.4 mm

HF driver magnet

Ferrite

HF driver brand

Celestion

HF driver voice coil

1 "

HF driver voice coil (mm)

25.4 mm

Amplifier

Class D

Dispersion (H x V)

90 x 60 °

System Power (RMS)

200 W

Peak power

800 W

Frequency response

65 - 19000

Max. SPL (continuous)

116 dB

Max. SPL (Peak)

119 dB

Protection circuits

HF Driver, over-current, over voltage

Input sensitivity

Mic: 150 mV / Line: -10 dBu

Controls

Bass, Line Gain, Mic Gain, Power, Treble, volume

Indicators

Limit, Power, Protect (protection circuit engaged), Signal

Line inputs

1

Line input connectors

6.3 mm jack, XLR

Mic inputs

1

Mic inputs

6.3 mm jack, XLR

Line outputs

1

Line output connectors

XLR

Power supply

Switching power supply

Operating voltage

110 V AC - 120 V AC, 220 V AC - 240 V AC (Auto), 50 - 60 Hz

Cabinet material

15 mm MDF

Cabinet surface

Dura-vinyl textured paint

Cabinet construction

Bass Reflex

Monitor angle

54 °

Width

328 mm

Height

500 mm

Depth

293 mm

Features

dual-tilt flange (0°/5°), rugged steel grille

Weight

13,8 kg

Description

GT 10 A

Loaded with a custom 10" woofer and 1" Celestion compression driver the GT 10 A active fullrange loudspeaker provides exceptional value and crisp, well balanced audio with a 65 Hz – 19 kHz frequency response, 90° x 60° dispersion and 119dB peak SPL.

The sturdy bass reflex cabinet is made from 15mm MDF and covered in heavy-duty textured Dura-Vinyl for protection and lasting appearance. It features a honeycomb steel grille, 54° monitor angle and dual tilt stand mount.

The GT 10 A is powered by a built-in Class D digital amplifier with high efficiency SMPS and 800 watts peak output. It provides line and microphone inputs on XLR and 6.3 mm connectors, a 2-band EQ and is protected against overcurrent and overvoltage for reliable operation.

A protective cover is available as accessory.
