Item no.: LDWSECO2HHDB6I
Guarantee: 24 months
EAN: 4049521239526
Sliding scale: 1
Unit: Piece
Packaging unit: 4
Series:WS ECO
Versions:
Item highlights:
- Single channel UHF PLL wireless system
- 630.2 MHz band operation
- 50 m line-of-sight operating range
- Handheld dynamic mic with output power selector and soft-touch shaft
- Diversity receiver with XLR and 1/4” outputs
- 10+ hours operating time
- Power adapter and 2 AA batteries included
Specifications
Product type
Wireless Microphone Systems
Type
Handhelds
Transmission frequency range
630,200
Items in this set
Channels
1
Controls
transmission power Hi / Low, gain, Power
Diameter
53
Directivity
Cardioid
Frequency response
60 - 16.000
Indicators
On / Low Battery
Length
250
Microphone type
Dynamic
Operating time
>10 h (with alkaline batteries)
Other features
incl. batteries
Power supply
2 x AA battery
Product type
Wireless Microphone System Accessories
Rated HF output power
10 mW
Transmission frequency range
630,200
Type
Microphones
Accessories (included)
Batteries, Power supply
Antenna connector
fixed to housing
Antenna inputs
2
Audio output, balanced
XLR
Audio output, unbalanced
6.3 mm jack
Channels
1
Controls
volume, Mute Level (Squelch)
Depth
118
Frequency response
60 - 16.000
Height
44
Indicators
Audio signal (Norm / Peak), Antenna A/B, Power
Modulation Type
FM
Noise reduction
Squelch
Power supply
400 mA, 12 - 18 V DC, External Power Supply
Product type
Wireless Microphone System Accessories
Signal-to-noise ratio
> 105
Transmission frequency range
630,200
Type
Receivers
Width
235
Description

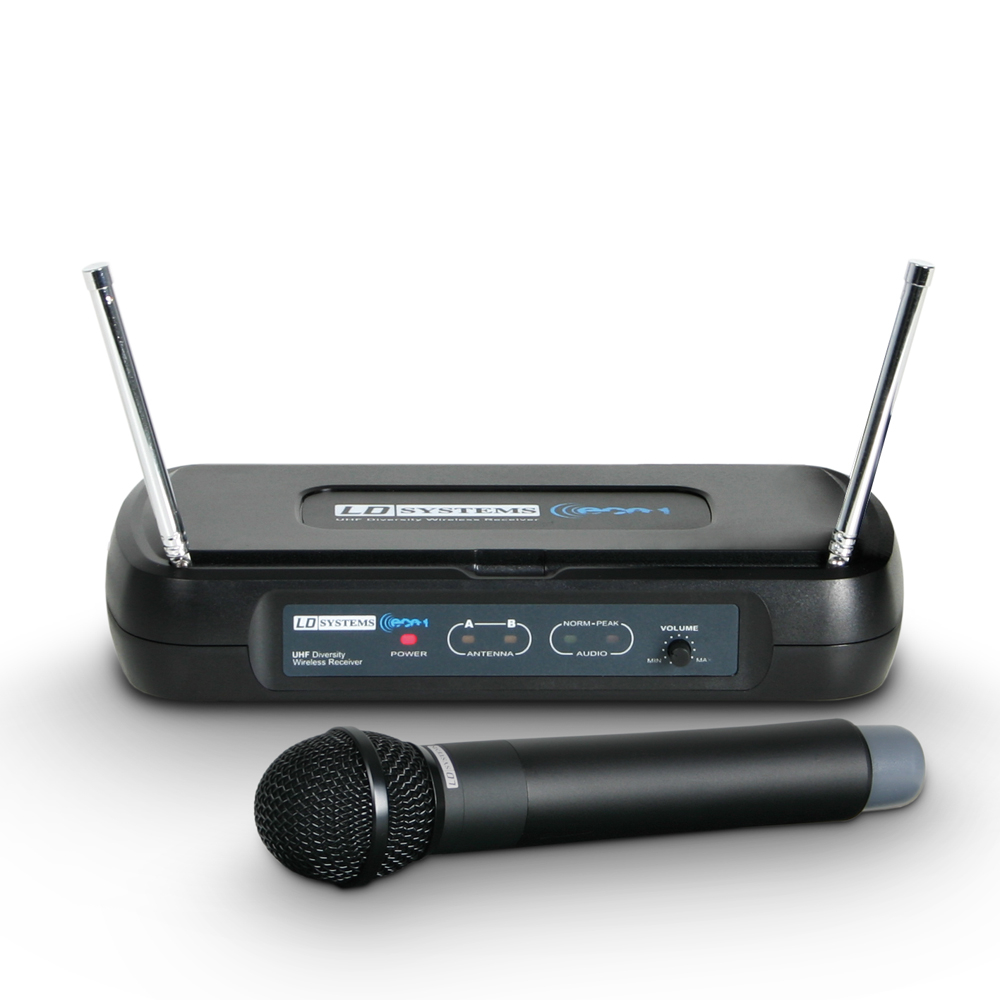

ECO 2 HHD B6 I
Operating in the 630.2 MHz band, this ECO 2 Series set includes a handheld dynamic microphone with cardioid polar pattern and a diversity receiver featuring balanced XLR and unbalanced 1/4” outputs, level and squelch controls and LED status indicators.
