Item no.: LDWSECO2HHD4
Guarantee: 24 months
EAN: 4049521137204
Sliding scale: 1
Unit: Piece
Packaging unit: 4
Series:WS ECO
Item highlights:
- Single channel UHF PLL wireless system
- 864.9 MHz band operation
- 50 m line-of-sight operating range
- Handheld dynamic mic with output power selector and soft-touch shaft
- Diversity receiver with XLR and 1/4” outputs
- 10+ hours operating time
- Power adapter and 2 AA batteries included
Specifications
Product type
Wireless Microphone Systems
Type
Handhelds
Transmission frequency range
864.9 MHz
Items in this set
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Transmission frequency range
864.9 MHz
Channels
1
Antenna inputs
2
Antenna connector
fixed to housing
Frequency response
60 - 16.000
Noise reduction
Squelch
Signal-to-noise ratio
> 105 dB
Audio output, balanced
XLR
Audio output, unbalanced
6.3 mm jack
Controls
Mute Level (Squelch), volume
Indicators
Antenna A/B, Audio signal (Norm / Peak), Power
Power supply
12 - 18 V DC, 400 mA, External Power Supply
Width
235 mm
Height
44 mm
Depth
118 mm
Weight
0,6 kg
Accessories (included)
Batteries, Power supply
Product type
Wireless Microphone System Accessories
Type
Microphones
Transmission frequency range
864.9 MHz
Channels
1
Microphone type
Dynamic
Directivity
Cardioid
Frequency response
60 - 16.000
Rated HF output power
10 mW
Controls
gain, Power, transmission power Hi / Low
Indicators
On / Low Battery
Power supply
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Length
250 mm
Diameter
53 mm
Weight
0,28 kg
Other features
incl. batteries
Description
ECO 2 HHD 4

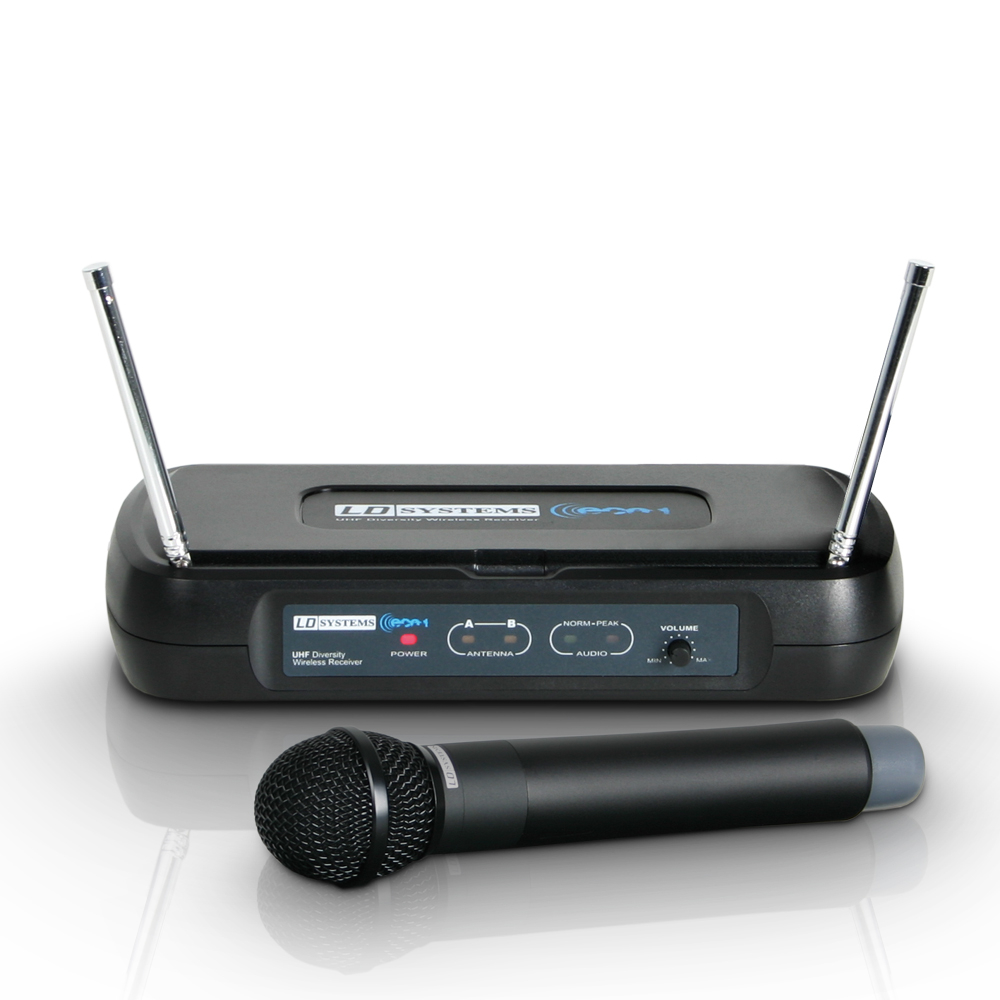

Operating in the 864.9 MHz band, this ECO 2 Series set includes a handheld dynamic microphone with cardioid polar pattern and a diversity receiver featuring balanced XLR and unbalanced 1/4” outputs, level and squelch controls and LED status indicators.
