Item no.: LDWSECO2BPG3
Guarantee: 24 months
EAN: 4049521138751
Sliding scale: 1
Unit: Piece
Packaging unit: 4
Series:WS ECO
Item highlights:
- Single channel UHF PLL wireless system
- 864.5 MHz band operation
- 50 m line-of-sight operating range
- 1/4” instrument cable and bodypack with input sensitivity selector and power/mute switch
- Diversity receiver with XLR and 1/4” outputs
- 10+ hours operating time
- Power adapter and 2 AA batteries included
Specifications
Product type
Wireless Microphone Systems
Type
Guitars
Transmission frequency range
864.5 MHz
Items in this set
Product type
Wireless Microphone System Accessories
Type
Guitar Cables
Connector 1
Mini-XLR (3-pin, female)
Connector 2
6.3 mm jack
Cable Length
0.9 m
Weight
0,027 kg
Product type
Wireless Microphone System Accessories
Type
Belt Packs
Transmission frequency range
864.5 MHz
Channels
1
Inputs
Mini-XLR (3-pin) with phantom power (for headset)
Frequency response
60 - 16.000
Rated HF output power
10 mW
Controls
power (on/off/mute)
Indicators
battery status
Power supply
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Width
65 mm
Height
85 mm
Depth
23 mm
Weight
0,1 kg
Other features
incl. batteries
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Transmission frequency range
864.5 MHz
Channels
1
Antenna inputs
2
Antenna connector
fixed to housing
Frequency response
60 - 16.000
Noise reduction
Squelch
Signal-to-noise ratio
> 105 dB
Audio output, balanced
XLR
Audio output, unbalanced
6.3 mm jack
Controls
Mute Level (Squelch), volume
Indicators
Antenna A/B, Audio signal (Norm / Peak), Power
Power supply
12 - 18 V DC, 400 mA, External Power Supply
Width
235 mm
Height
44 mm
Depth
118 mm
Weight
0,6 kg
Accessories (included)
Batteries, Power supply
Description

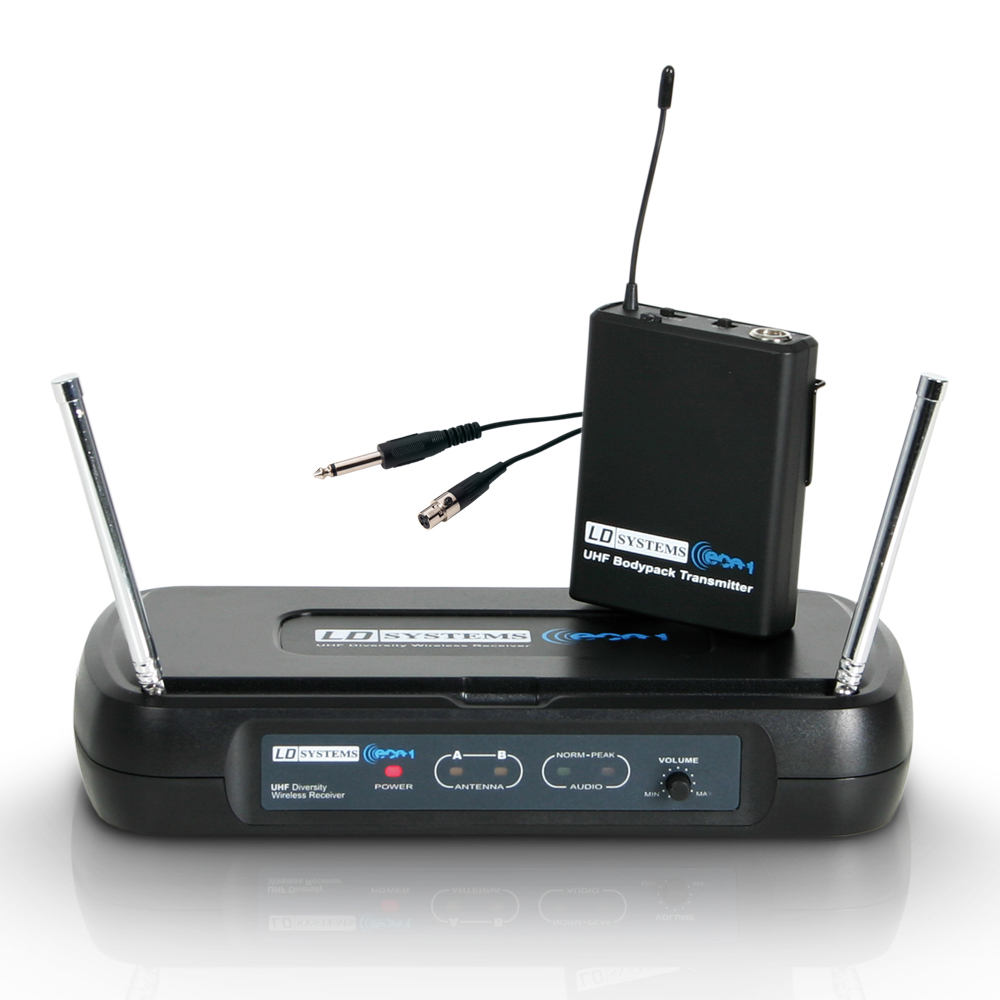

ECO 2 BPG 3
Operating in the 864.5 MHz band, this ECO 2 Series set includes a mini-XLR to 1/4” instrument cable, bodypack transmitter and a diversity receiver featuring balanced XLR and unbalanced 1/4” outputs, level and squelch controls and LED status indicators.
