A new model exists for this item:
LD Systems
U308 HHD
LDU308HHD
Item no.: LDWSECO16HHD
Guarantee: 24 months
EAN: 4049521124617
Sliding scale: 1
Unit: Piece
Packaging unit: 5
Series:WS ECO 16
Item highlights:

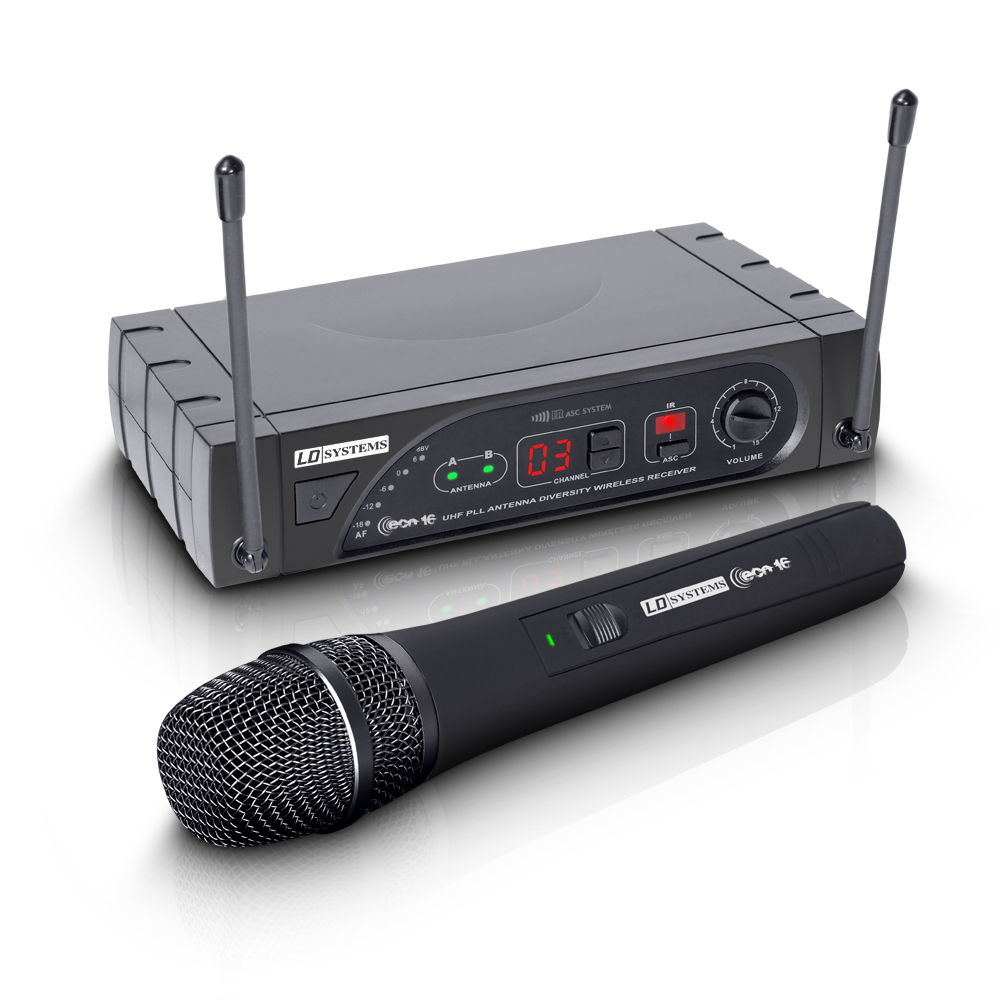

16 Channel PLL Diversity Wireless System
LD Systems ECO Sets are the perfect introduction to wireless audio transmission: All components guarantee optimal audio delivery via professional outputs. The extensive features of the LD WS ECO Series Sets are remarkable in this price category.
- UHF frequency range 863 - 865 MHz
- Available as handheld or headset
- ASC infrared frequency transmission
- Interference-free operation thanks to "pilot tone" squelch
- AF LED bar indicators
- Belt pack transmitter with sensitivity switch and battery status indicator
- Dynamic handheld microphone with soft-touch surface and ASC infrared frequency scanning
- Long battery life
Specifications
Product type
Wireless Microphone Systems
Type
Handhelds
Transmission frequency range
863 - 865
Items in this set
Channels
16
Controls
On / Off
Diameter
49
Directivity
Cardioid
Frequency response
60 - 16,000
Indicators
power/battery status
Length
245
Microphone type
Dynamic
Operating time
>10 h (with alkaline batteries)
Other features
IR frequency synchronisation, incl. batteries
Power supply
2 x AA battery
Product type
Wireless Microphone System Accessories
Rated HF output power
10
Transmission frequency range
863 - 865
Type
Microphones
Accessories (included)
Batteries, Power supply
Antenna connector
fixed to housing
Antenna inputs
2
Audio output, balanced
XLR
Audio output, unbalanced
6.3 mm jack
Channels
16
Controls
Channel up, volume, ASC, Power, Channel down
Depth
115
Frequency response
60 - 16,000
Height
44
Indicators
Antenna A/B, 5-Segment Level Meter, channel number
Max. output level
- 10
Modulation Type
FM
Other features
IR frequency synchronisation
Power supply
12 V DC - 18 V DC (300 mA), External Power Supply
Product type
Wireless Microphone System Accessories
Total Harmonic Distortion (THD)
< 1 %
Transmission frequency range
863 - 865
Transmission optimization
Pilot tone
Type
Receivers
Width
210
