ECO 16 BPL B 5

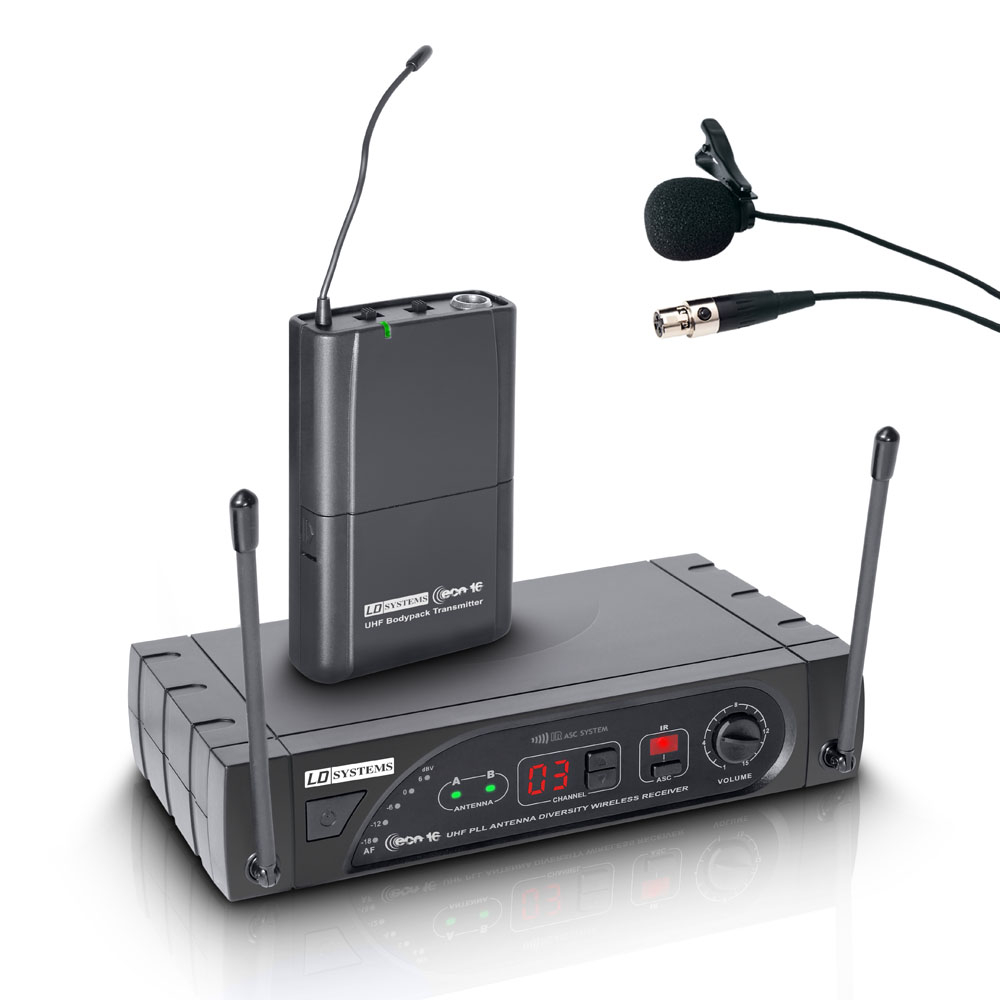

Wireless Microphone System with Belt Pack and Lavalier Microphone 16 Channel Band 5 584 - 607 MHz
A new model exists for this item:
LD Systems
U305 BPL
LDU305BPL
Item no.: LDWSECO16BPLB5
Guarantee: 24 months
EAN: 4049521203053
Sliding scale: 1
Unit: Piece
Packaging unit: 5
Series:WS ECO 16
Item highlights:
A 16-channel UHF PLL diversity wireless system
LD Systems ECO Sets are the perfect introduction to wireless audio transmission. All components guarantee optimal audio delivery via professional outputs.
- UHF frequency band 584 - 607 MHz
- Available with handheld microphone or headset
- ASC infrared frequency transmission
- Trouble-free operation thanks to pilot tone squelch
- AF LED indicators
- Belt pack transmitter with gain control and battery status indicator
- Dynamic handheld microphone with soft-touch surface and battery status indicator
- Long battery life
Specifications
Product type
Wireless Microphone Systems
Type
Lavalier
Transmission frequency range
584 - 607 MHz
Antenna gain
2.15 dBi
Items in this set
Directivity
Cardioid
Capsule type
Condenser
Nominal impedance
680 Ω
Phantom power
5 V
Output connector type
Mini XLR female
Material
Foam, Silicone
Frequency response (-6 dB, rel. Avg)
20 - 20,000 Hz
Colour
Black
Weight
26 g
Product type
Wireless Microphone System Accessories
Type
Belt Packs
Transmission frequency range
863 - 865 MHz
Channels
16
Inputs
Mini-XLR (3-pin) with phantom power (for headset)
Frequency response
60 - 16.000
Rated HF output power
10
Antenna gain
2.15 dBi
Controls
Gain (3-stage input sensitivity), On / Standby / Off
Indicators
power/battery status
Power supply
2 x AA battery
Operating time
>10 h (with alkaline batteries)
Width
65 mm
Height
105 mm
Depth
23 mm
Weight
0,09 kg
Other features
IR frequency synchronisation, incl. batteries
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Transmission frequency range
863 - 865 MHz
Channels
16
Antenna inputs
2
Antenna connector
fixed to housing
Frequency response
60 - 16.000
Transmission optimization
Pilot tone
Total Harmonic Distortion (THD)
< 1 %
Audio output, balanced
XLR
Audio output, unbalanced
6.3 mm jack
Max. output level
- 10 dBu
Controls
ASC, Channel down, Channel up, Power, volume
Indicators
5-Segment Level Meter, Antenna A/B, channel number
Power supply
12 V DC - 18 V DC (300 mA), External Power Supply
Width
210 mm
Height
44 mm
Depth
115 mm
Weight
0,4 kg
Accessories (included)
Batteries, Power supply
Other features
IR frequency synchronisation
