ECO 16 BPH B 6

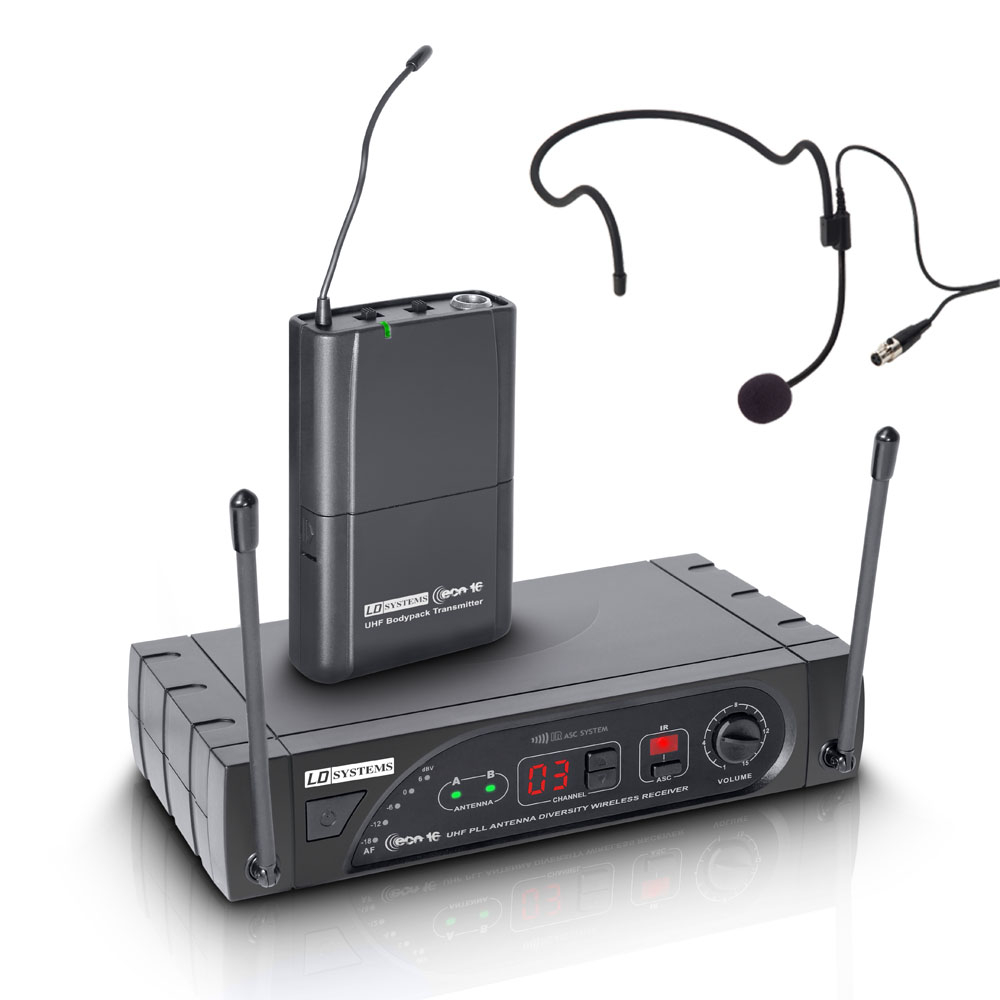

Wireless Microphone System with Belt Pack and Headset 16 Channel band 6 655 - 679 MHz
A new model exists for this item:
LD Systems
U306 BPH
LDU306BPH
Item no.: LDWSECO16BPHB6
Guarantee: 24 months
EAN: 4049521202902
Sliding scale: 1
Unit: Piece
Packaging unit: 5
Series:WS ECO 16
Item highlights:
A 16-channel UHF PLL diversity wireless system
LD Systems ECO Sets are the perfect introduction to wireless audio transmission. All components guarantee optimal audio delivery via professional outputs.
- UHF frequency band 655 - 679 MHz
- Available with handheld microphone or headset
- ASC infrared frequency transmission
- Trouble-free operation thanks to pilot tone squelch
- AF LED indicators
- Belt pack transmitter with gain control and battery status indicator
- Dynamic handheld microphone with soft-touch surface and battery status indicator
- Long battery life
Specifications
Product type
Wireless Microphone Systems
Type
Headsets
Transmission frequency range
655 - 679
Antenna gain
2.15 DBI
Items in this set
Accessories (included)
Batteries, Power supply
Antenna connector
fixed to housing
Antenna inputs
2
Audio output, balanced
XLR
Audio output, unbalanced
6.3 mm jack
Channels
16
Controls
Channel up, volume, ASC, Power, Channel down
Depth
118
Frequency response
60 - 16,000
Height
44
Indicators
Antenna A/B, 5-Segment Level Meter, channel number
Max. output level
- 10
Modulation Type
FM
Other features
IR frequency synchronisation
Power supply
12 V DC - 18 V DC (300 mA), External Power Supply
Product type
Wireless Microphone System Accessories
Total Harmonic Distortion (THD)
< 1 %
Transmission frequency range
655 - 679
Transmission optimization
Pilot tone
Type
Receivers
Width
235
Cable length
1
Capsule type
Condenser
Colour
Black
Directivity
Cardioid
Frequency response (-6 dB, rel. Avg)
100 - 12000
Material
ABS
Nominal impedance
680
Output connector type
Mini XLR female
Phantom power
5
Sensitivity (transfer factor)
6.31
Weight
49
Antenna gain
2.15
Channels
16
Controls
On / Standby / Off
Depth
23
Frequency response
60 - 16,000
Height
85
Indicators
power/battery status
Inputs
Mini-XLR (3-pin) with phantom power (for headset)
Operating time
>10 h (with alkaline batteries)
Other features
IR frequency synchronisation, incl. batteries
Power supply
2 x AA battery
Product type
Wireless Microphone System Accessories
Rated HF output power
10 mW
Transmission frequency range
655 - 679
Type
Belt Packs
Width
65
