DDQ 15

15" active PA Loudspeaker with DSP

Item no.: LDDDQ15

Guarantee: 24 months

EAN: 4049521162541

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:DDQ

Questions about the item?

Item highlights:

Touring class active PA speakers with Sharc DSP (24bit/48kHz)
Distortion free thanks to 1 millisecond predictive peak limiter
State of the art analog/digital converters (127dB/113dB dynamic range)
Max SPL (peak): 136dB
80° x 50° rotatable asymmetrical horn flare
38 – 20,000 Hz frequency response
2 x Hypex 700 Watt Class D amplifier modules
15“ Faital Pro neodymium woofer
1.4“ BMS compression driver
Switchable high-pass filter
50° monitor angle
13 x M10 flying points
Lightweight
Made in Germany

Specifications

Product type

PA loudspeaker

Type

Powered

Design

DSP controlled

Low/mid Woofer dimensions

15 "

Woofer dimensions (mm)

381 mm

Low/mid driver magnet

Neodymium

Low/mid driver brand

Faital Pro

Low/mid driver voice coil

3 "

Low/mid driver voice coil

75 mm

Tweeter dimensions

1.4 "

Tweeter dimensions (mm)

35.6 mm

Tweeter magnet

ceramic

Tweeter brand

BMS

Tweeter voice coil

1.75 "

Tweeter voice coil (mm)

44.4 mm

Amplifier

2 x Class D, Hypex Ucd700

Dispersion (H x V)

80 x 50 °

System Power (RMS)

1400 (2 x 700) W

Frequency response

38 - 20000

Crossover frequency

1300 Hz

Max. SPL (continuous)

124 dB

Max. SPL (Peak)

136 dB

Integrated media player

No

Protection circuits

DSP-based "look ahead" limiter, RMS speaker limiter, RMS power supply limiter, over-current, over voltage

Controls

Gain, ground lift, mains switch (on/off), X-Over Sub

Indicators

Operate, Peak Limiter, Signal, X-Over Sub

Line inputs

1

Line input connectors

XLR

Line outputs

1

Line output connectors

XLR

Power supply

Switching power supply

Operating voltage

180 - 264 V AC, 47 - 63 Hz

Cabinet material

15 mm Birch Plywood, 18 mm Birch Plywood

Cabinet surface

Polyurea

Cabinet construction

Bass Reflex

Monitor angle

50 °

Width

420 mm

Height

736 mm

Depth

488 mm

Weight

31,5 kg

Features

13 x M10 flying points, LD Systems "Evolutive" handles, switchable high-pass filter

Description

DDQ 15

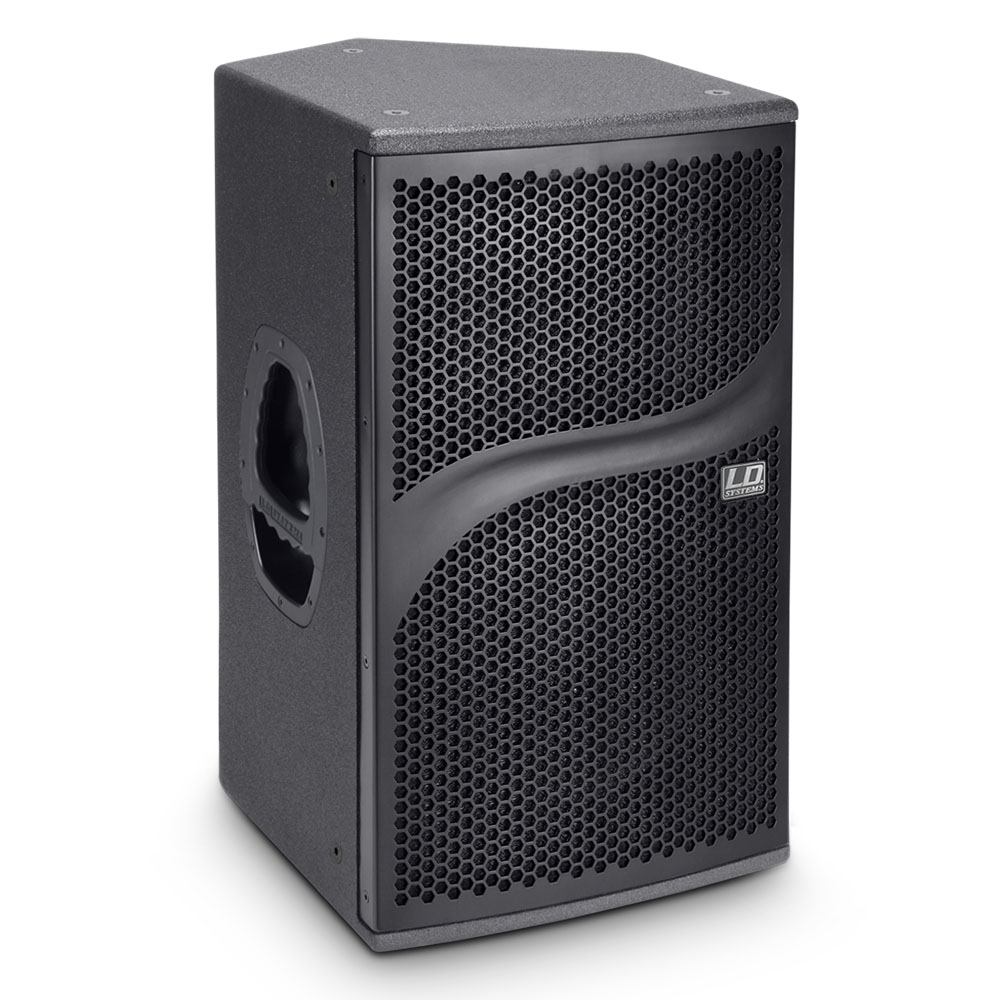

DDQ 15 2-Way Touring Class Powered Loudspeaker with DSP

The LD Systems DDQ 15 is an ultra high efficiency 2-way biamped loudspeaker for FOH and monitor applications, delay lines, portable PA systems and fixed installations delivering superior touring class performance.

A 24-bit/48 kHz custom Sharc DSP provides volume control, delay, EQ, crossover, phase alignment and comprehensive protection functions for precision adjustment and reliable operation while its 1ms look-ahead limiter ensures distortion-free audio at all levels. In addition, the DDQ features digital encoding, a high pass filter and ground lift switch.

The 15” FaitalPRO neodymium woofer and BMS compression driver complement is biamped by two Hypex UcD700 Class D modules with high efficiency SMPS and extremely low noise and THD. With 1.400 watts RMS output, 38 Hz – 20 kHz frequency response, 80° x 50° dispersion and a peak SPL of 136 dB the DDQ 15 provides superior high-power audio performance.

The 15 mm birch ply bass reflex enclosure with an extremely durable polyurethane finish incorporates a 50° angle and asymmetrical HF horn rotatable for floor monitor use. The hardware includes a steel grille, multiple flying points and the innovative Evolutive handles for easy portability.
