Item no.: LDCURV500WMB
Guarantee: 24 months
EAN: 4049521190957
Sliding scale: 1
Unit: Piece
Packaging unit: 20
Series:CURV 500
Versions:
Item highlights:

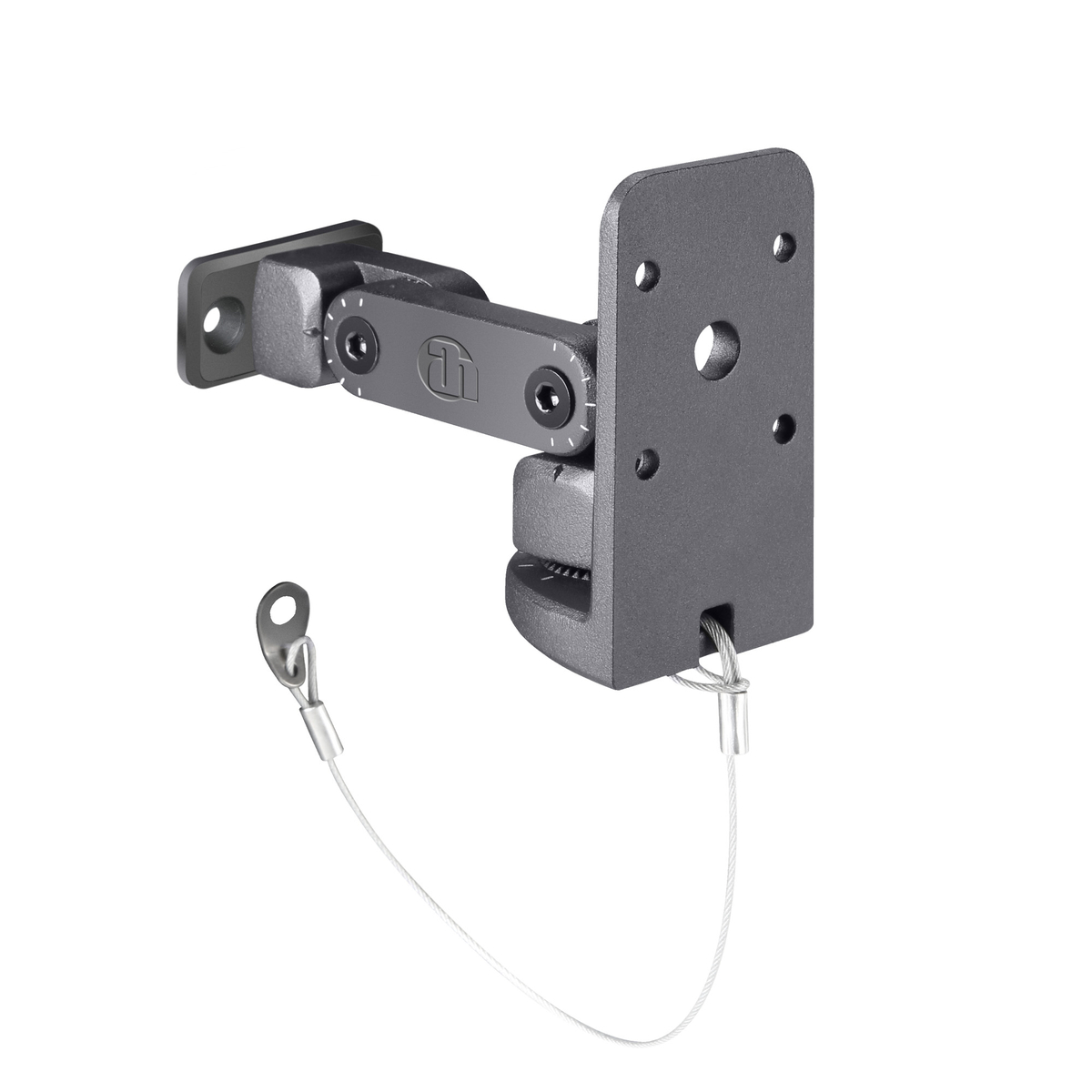

- CURV 500® satellite mounting bracket
- Fully adjustable on all axes
- Tough black powder coat finish
- Comes with safety rope
Specifications
Product type
PA Loudspeakers Accessories
Type
Speaker Wall Mount
Material
Die-cast aluminium
Surface
Powder coated
Color
Black
Max. load
10 kg
Weight
0,353 kg
Additional information
adjustable on all axes, including safety wire (length 20cm)
Description
CURV 500 WM B
The LD Systems CURV 500® mounting bracket is designed to mate with the CURV 500 SmartLink adapter. It is made of powder coated die cast aluminium, is fully adjustable on all axes and can therefore be individually aligned. It includes a 20 cm steel safety rope to secure the CURV 500® satellites attached to the SmartLink adapter in accordance with BGV C1.
Note:
Under the statutory provisions (BGV C1 § 7 "Protection against falling objects") speakers must additionally be secured for attachment to a wall bracket by means of a steel rope, for example.
Videos for this item
Downloads
Manuals
Images & Artwork
Catalogues & Publications
Service & Regulation Documents
Display all
Name | Type | Format | File size | ||
|---|---|---|---|---|---|
| LDCURV500WMB User Manual | User Manual | 308.17 KB | |||
| LDCURV500WMB Configuration Guide Power Set | Configuration Guide | 5.22 MB | |||
| LDCURV500WMB Configuration Guide Entertainer Set | Configuration Guide | 4.05 MB | |||
| LDCURV500WMB Configuration Guide Install Solutions | Configuration Guide | 13.06 MB | |||
| LDCURV500WMB Configuration Guide Audio Video Set | Configuration Guide | 3.01 MB | |||
| LD Systems REACh Declaration Adam Hall GmbH | REACh Declaration | 493.71 KB | |||
| LD Systems RoHS Confirmation Adam Hall GmbH | RoHS Confirmation | 197.63 KB | |||
| LD Systems Catalogue / Brochure Highlight Brochure Install | Catalogue / Brochure | 6.51 MB | |||
| LD Systems Catalogue / Brochure Adam Hall Group Product Highlights Spring/Summer 2025 | Catalogue / Brochure | 24.23 MB | |||
| LD Systems Catalogue / Brochure Highlight Brochure DJ & Music | Catalogue / Brochure | 22.07 MB | |||
| LD Systems Catalogue / Brochure Highlight Brochure DJ & Music | Catalogue / Brochure | 22.07 MB | |||
| CURV 500 Catalogue / Brochure CURV 500 Series | Catalogue / Brochure | 14.31 MB |
Nothing there?
You can find more downloads in our download centre.
