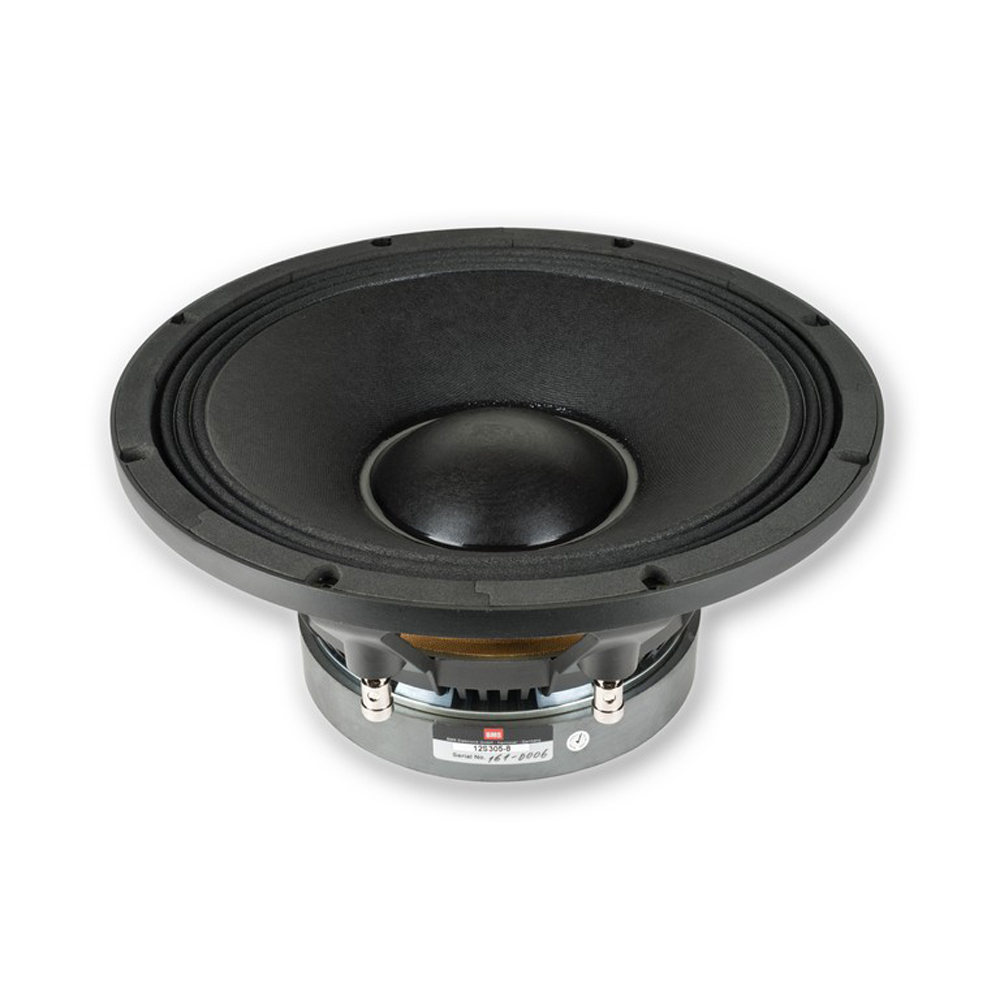

BMS 12S305
12" Bass Midrange Driver 4 Ohm - 800 W
Item no.: BMS12S305C
Guarantee: 24 months
EAN: 4049521218705
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
- 95 dB Sensitvity 1 W / 1 m
- 800 W Power Handling
- 3" Copper Sandwich Voice Coil for low Power Compression
- Double Treated Cone for Water Protection
- Triple Aluminum demodulating Rings for ultra low Distortion
- Optimal for compact Subwoofers
- Light weight Carbon Fiber Diaphragm
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
12 "
Nominal Diameter
304.8 mm
Voice Coil
3.0315 "
Voice Coil
77 mm
Overall diameter
318 mm
Pitch Circle Diameter
300 mm
Cut- out Measurement
284 mm
Diameter of fixing holes
8 mm
Depth
153 mm
Nominal Impedance
4 + 8 Ohm(s)
Nominal Load Capacity
800 W
Sensitivity (1 W / 1 m)
95 dB
Frequency response
35 Hz - 2500 Hz
Voice Coil Material
copper
Magnet
Ferrite
Fs (Resonance Frequency)
35 Hz
Re (DC resistance)
5.4 Ohm(s)
Weight
9 kg
