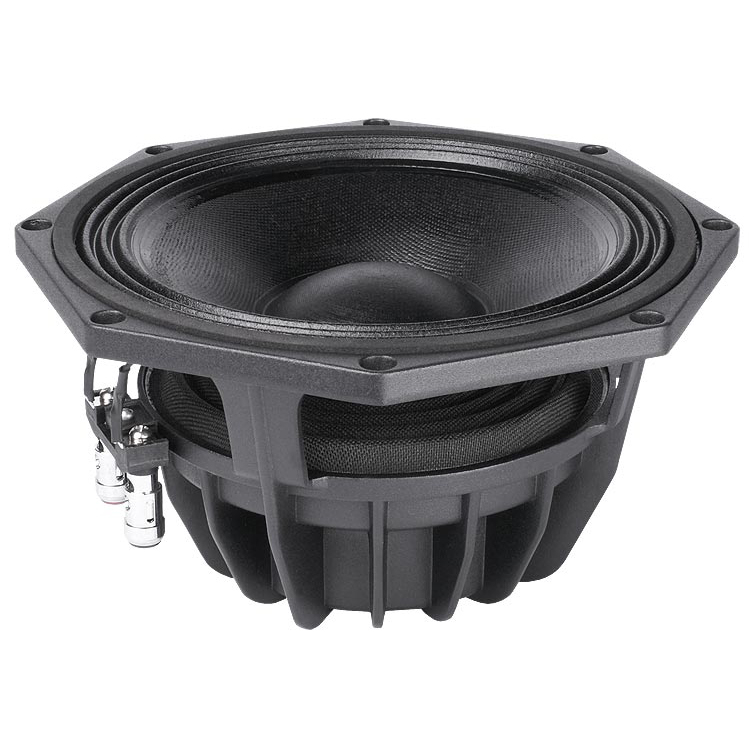

8 PR 200 B
8" Speaker 16 Ohms - 200 W
Item no.: FP8PR200B
Guarantee: 24 months
EAN: 4049521303920
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
8" Speaker 200 W 16 Ohms
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
8 Inch
Nominal Diameter
200 mm
Voice Coil
2 Inch
Voice Coil
52 mm
Overall diameter
203.9 mm
Pitch Circle Diameter
210 mm
Cut- out Measurement
184 mm
Mounting holes
8
Diameter of fixing holes
6 mm
Depth
116.7
Nominal Impedance
8
Nominal Load Capacity
200 W
maximum rated load
400 W
Sensitivity (1 W / 1 m)
94 dB
Frequency response
70 Hz - 5000 Hz
Voice Coil Material
Aluminium
Magnet
Neodymium
Depth of the magnetic gap
8 mm
Fs (Resonance Frequency)
60 Hz
Re (DC resistance)
11.8 Ω
Qms (mechanical quality)
8.8
Le (inductance of the voice coil)
0.87 MH
Qes (electrical quality)
0.49
Qts (overall quality)
0.47
Vas (equivalent volume)
14.4
Mms (moving mass)
26.7 g
BL (power factor)
15.5 T/M
Xmax (maximum displacement)
8.65 mm
Cms (elasticity of the suspension)
0.26 MM/N
Sd (membrane area)
196 CM²
Rms (mechanical loss resistance)
1.14 KG/S
