8 HX 230 A

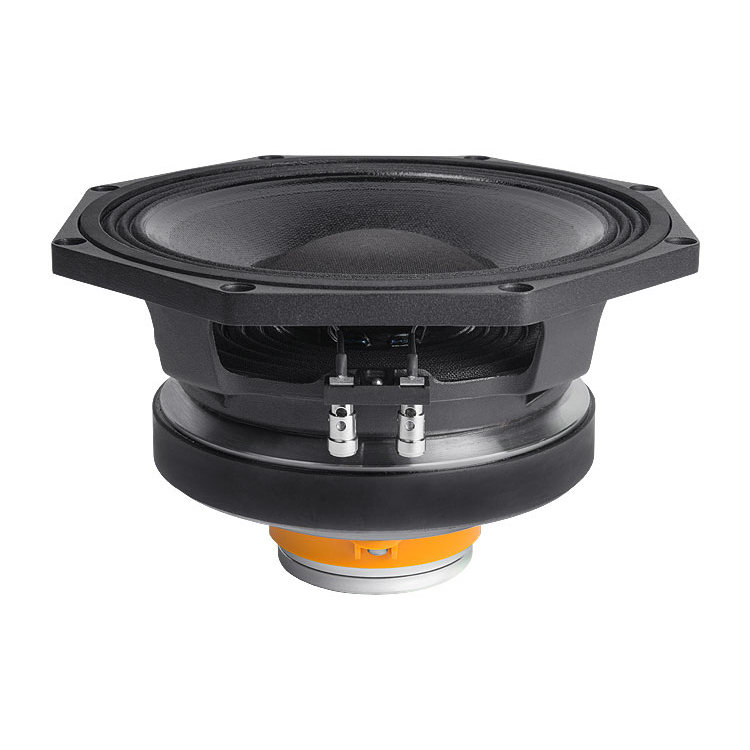

8" Coaxial Ferrite Speaker 8 Ohm - 250 W + 30 W
Item no.: FP8HX230A
Guarantee: 24 months
EAN: 4049521280849
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Item highlights:
8" Coaxial Ferrite Speaker 8 Ohm - 250 W + 30 W
Specifications
Product type
Loudspeaker Chassis
Type
PA
Loudspeaker dimensions
8 "
Loudspeaker dimensions (mm)
200 mm
Overall diameter
207.9 mm
Pitch Circle Diameter
210 mm
Cut- out Measurement
183 mm
Mounting holes
8
Diameter of fixing holes
6 mm
Total depth
126.5 mm
Weight
4,7 kg
Nominal impedance
8 Ohm(s)
RMS
250 W
Sensitivity (1 W / 1 m)
94 dB
Frequency response
70 - 20000 Hz
Woofer voice coil (inch)
2.5 "
Woofer voice coil (mm)
65 mm
Voice Coil Material Woofer
Aluminium
Woofer magnet
Ferrite
Magnetic gap depth Woofer
8 mm
Fs (Resonance Frequency)
70 Hz
Re (DC resistance)
6.5 / 5.5 Ohm(s)
Qms (mechanical quality)
7.4
Le (inductance of the voice coil)
0.57 mH
Qes (electrical quality)
0.38
Qts (overall quality)
0.36
Vas (equivalent volume)
8 l
Mms (moving mass)
23.6 g
BL (power factor)
15.1 T/m
Xmax (maximum displacement)
6.17 mm
Cms (elasticity of the suspension)
0.14 mm/N
Sd (membrane area)
205 cm²
Rms (mechanical loss resistance)
1.79 kg/s
HF driver voice coil
1.46 "
HF driver voice coil (mm)
37 mm
Nominal Impedance HF driver
8 Ohm(s)
Nominal Load HF driver
30 W
Maximum Load HF driver
60 W
Sensitivity HF driver (1 W / 1 m)
105 dB
Frequency range HF driver
1200 - 20000 Hz
Voice Coil Carrier HF driver
Kapton
Diaphragm material HF driver
Ketone Polymer
Dispersion (H x V)
100 °
