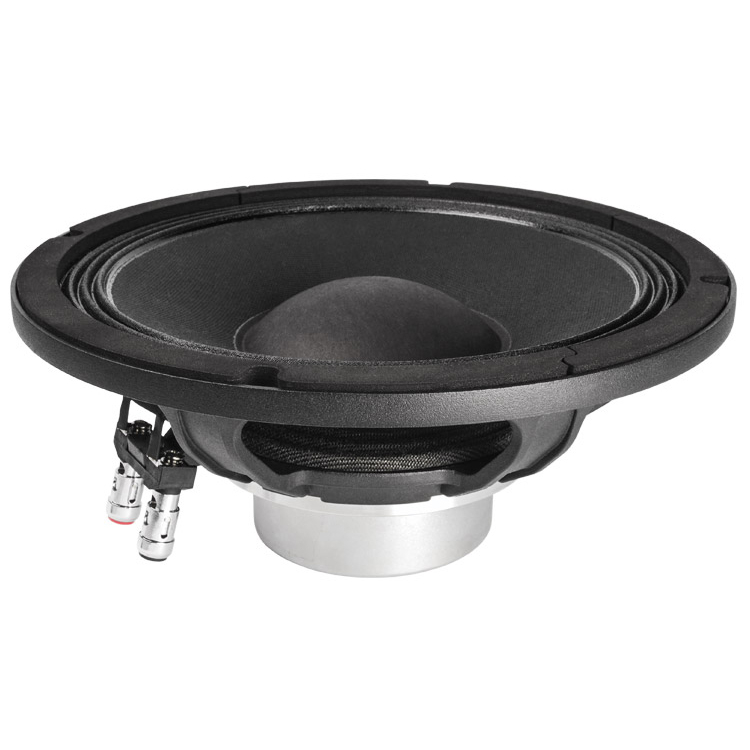

10 PR 320 A
10" Speaker 8 Ohm 300 W, Neodymium
Item no.: FP10PR320A
Guarantee: 24 months
EAN: 4049521303449
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:Professional
Item highlights:
10" Speaker 300 W 8 Ohm - Neodymium
Specifications
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
10 "
Nominal Diameter
250 mm
Voice Coil
2.56 "
Voice Coil
65 mm
Overall diameter
261 mm
Pitch Circle Diameter
246 mm
Cut- out Measurement
230 mm
Mounting holes
4
Diameter of fixing holes
6 mm
Depth
110 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
300 W
maximum rated load
600 W
Sensitivity (1 W / 1 m)
96 dB
Frequency response
50 - 4,000 Hz
Voice Coil Material
Aluminium
Magnet
Neodymium
Fs (Resonance Frequency)
48 Hz
Re (DC resistance)
5.3 Ohm(s)
Qms (mechanical quality)
4.6
Weight
2,55 kg
