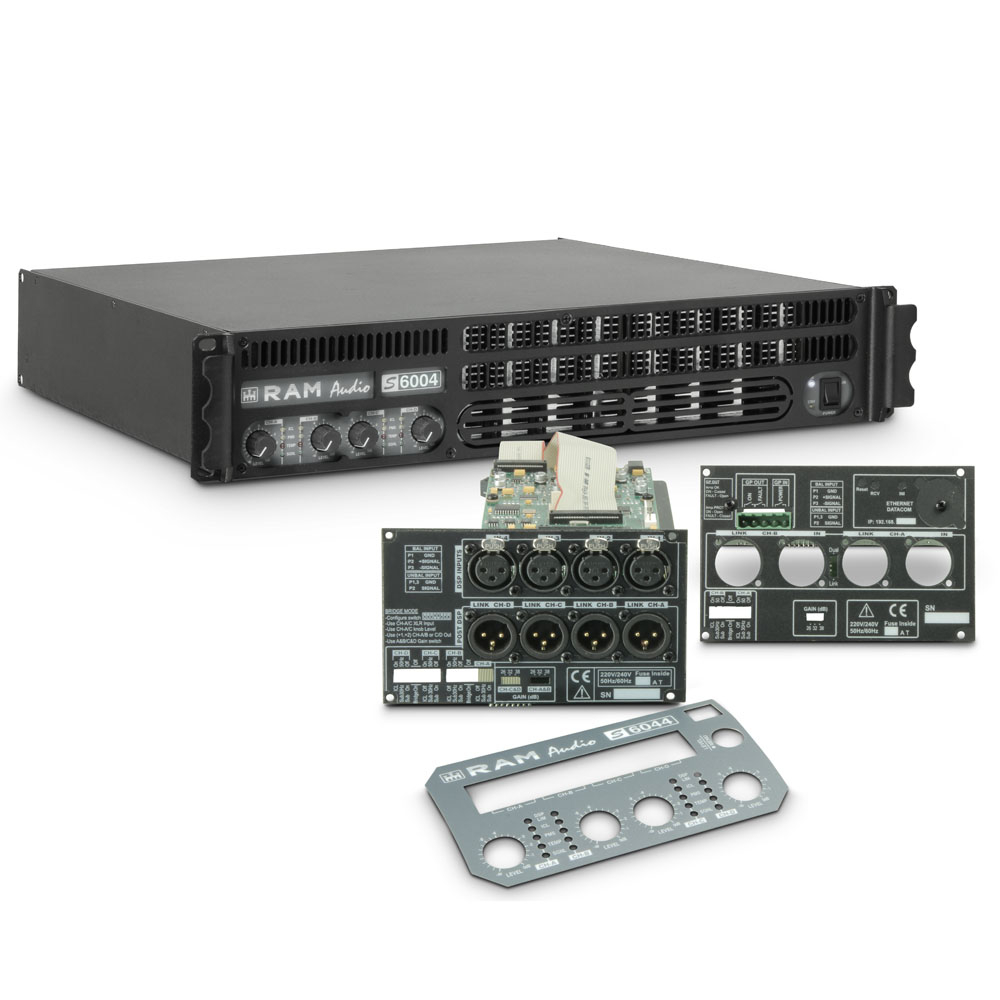

S 6004 DSP GPIO

The state-of-the-art QuantaPulse EVO switched-mode power supply of the new S Series amplifiers provides major benefits: it increases efficiency and reliability, generates less heat and keeps the weight down. While delivering high output power S series amplifiers tip the scales at around 8 kg only.

S Series power amplifiers are available with 2 and 4 channels and output ratings from 1.5 to 6 kW. Housed in 30 cm deep, 2U rackmountable chassis the S series uses surface-mount technology with high component density for maximum reliability.

• QuantaPulse™ EVO switched-mode power supply for maximum efficiency, increased output and reliability
• five 2-channel models with up to 4 kW output power
• very light weight (8 kg), 2U and 30 cm depth
• electronic protection circuits
• high component density surface-mount technology (SMT) provides mechanical strength and reliable operation
• Neutrik XLR and Speakon connectors

QuantaPulse™ Technology: The Soft Switching Resonant QuantaPulse Power Supply is designed to provide plenty of power when needed monitoring the necessary parameters of voltage and current for a controlled performance at all times. Bi-directional data flow between the power supply and power amp module. Two very important characteristics of the QuantaPulse power supply are the optimization against over-voltages and superior reliability.
