Item no.: RAMDSP22W
Guarantee: 60 months
EAN: 4049521161667
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:W
Item highlights:

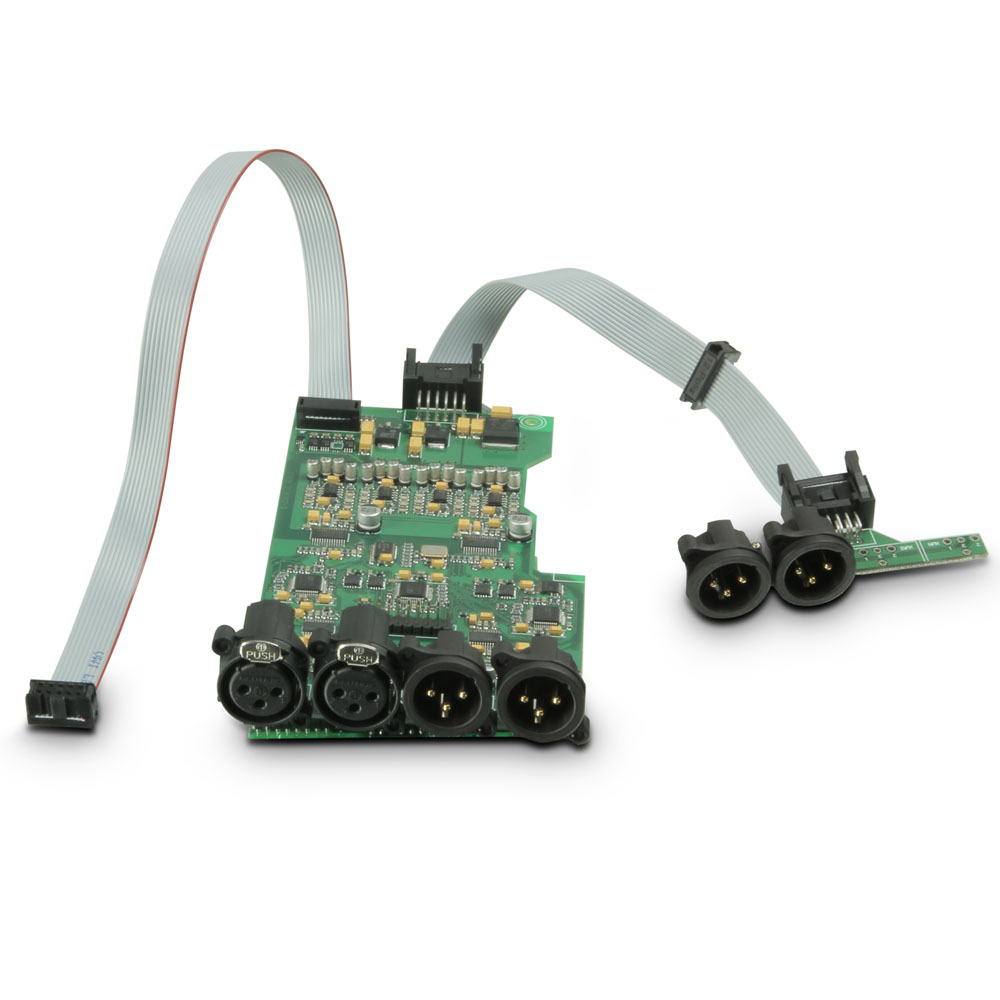

The W Series 2-Channel Digital Signal Processor is fully programmable in real time via USB, an optional Ethernet network or the front panel. The module features user configurable signal routing and post-processing XLR outputs to feed the processed signal to amplifiers without DSP. More than 50 presets can be saved and stored inside the amp.
Specifications
Product type
Power Amplifier Accessories
Version
2-channel
AD/DA converter
24 bit
Filter type
Bessel, Butterworth, Linkwitz-Riley
Filter slew rate
up to 48 dB/oct
Input EQ
29 x graphic or parametric per channel
Output EQ
20 filters per channel (parametric, shelving, LP, HP, BP, SB)
Input delay
up to 80 m (230 ms) per input
Output Delay
up to 18 m (50 ms) per channel
Limiter (per channel)
Peak Voltage Output (variable knee), RMS Power
Additionakl DSP functions (per input)
Gain, mute, Phase Inversion
Additionakl DSP functions (per channel)
Gain, mute, Phase Inversion
Line inputs
2
Line input connectors
XLR (balanced)
Line outputs
2
Line output connectors
XLR (balanced)
Programming
Ethernet (optional), via USB port
Other features
Signal Generator (pink and white noise, sinus 20 Hz - 20,000 Hz)
Weight
0,5 kg
