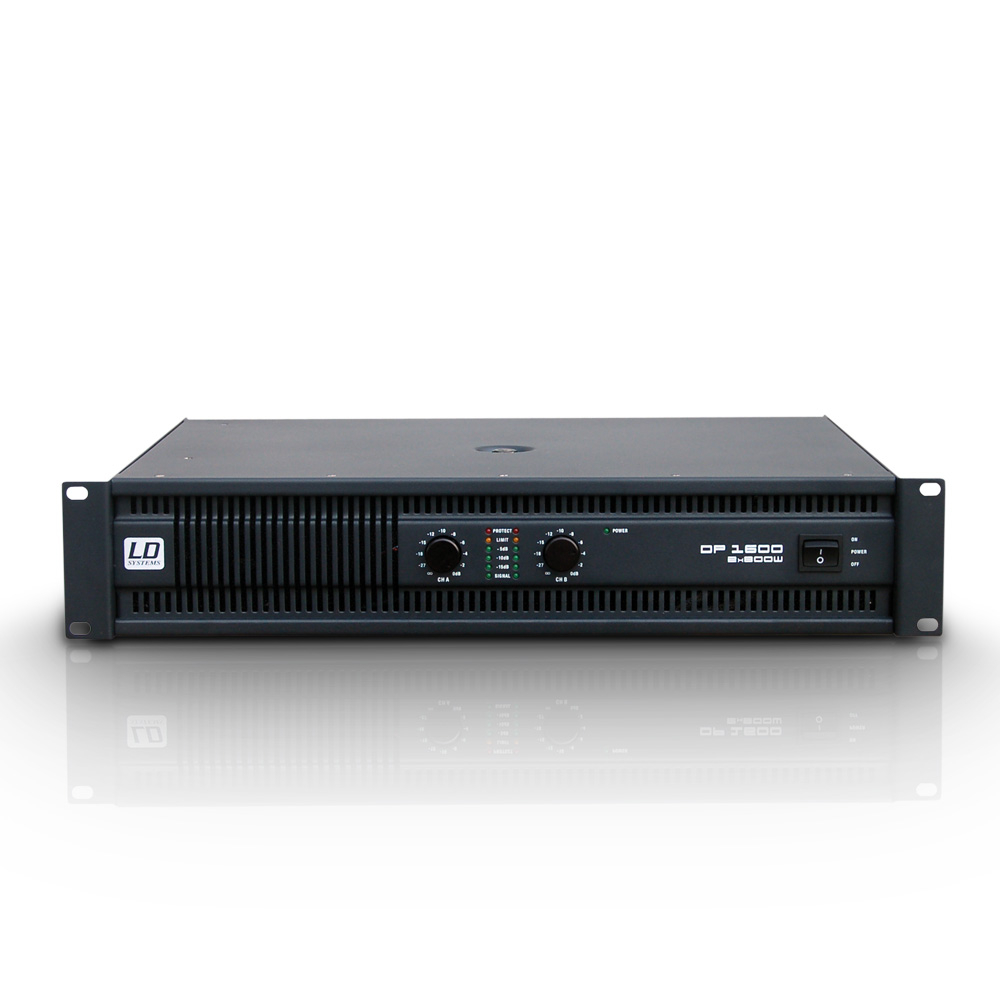

DEEP2 1600

DEEP2 1600

PA Power Amplifier 2 x 800 W 2 Ohms

Item no.: LDDP1600

Guarantee: 24 months

EAN: 4049521087264

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:DEEP2

Versions:

Item highlights:

The new DEEP2 amp series features four class-H power amplifiers with toroidal core offering amplifying levels from 2 x 400 W till 2 x 810 W at 4 Ohm. During the development of this series we attached a great importance to the reliability and the durability of the amps in continuous operation, this is why we used exclusively high end and selected components for the construction of these products.

The DEEP2 series features a Clip Limiter as well as every common protection circuits. These amps are 2 Ohm and 4 Ohm (bridge) stable in continuous operation. On the rear panel you will find all the common In- and Outputs.

The DEEP2 series will convince every user thanks to a dynamic and very clear sound which is perfectly adapted for Subbass applications as well as for multifunctional speakers. All models are lightweight and feature a robust steel plate housing and a very user friendly and compact design.

The DEEP2 series will prove to be a profitable and reliable choice for bands, renting companies and professional users thanks to its excellent price/performance ratio.

Specifications

Product type
Power Amplifiers
Type
PA Power Amplifiers
Rated ouput power (1kHz @ 2 Ohms)
2 x 800 W
Rated ouput power (1kHz @ 4 Ohms)
2 x 650 W
Rated ouput power (1kHz @ 8 Ohms)
2 x 450 W
Rated ouput power (1 kHz @ 4 Ohms, bridged)
1600 W
Rated ouput power (1kHz @ 8 Ohms, bridged)
1300 W
Output circuitry
Class H
Frequency response
20 - 20000
Total Harmonic Distortion (THD)
< 0.1 %
Signal-to-noise ratio
106 dB
Damping factor (20Hz-500Hz @8ohm)
>400
Crosstalk
>80 dB
Gain
39 dB
Input sensitivity
0.775 V
Protection circuits
clip limiter, Short circuit, DC protection, thermal overload
Controls
2 x volume, ground lift, mains switch (on/off), bridge/stereo mode selector
Indicators
Limit, level, Power, Protect (protection circuit engaged), Signal
Loudspeaker outputs
2
Speaker output connections
Terminal posts, Speakon compatible
Cooling
highly efficient, automatic
Power supply
transformer
Operating voltage
230 V AC / 50-60 Hz
Weight
15,9 kg
Features
Volex mains socket
