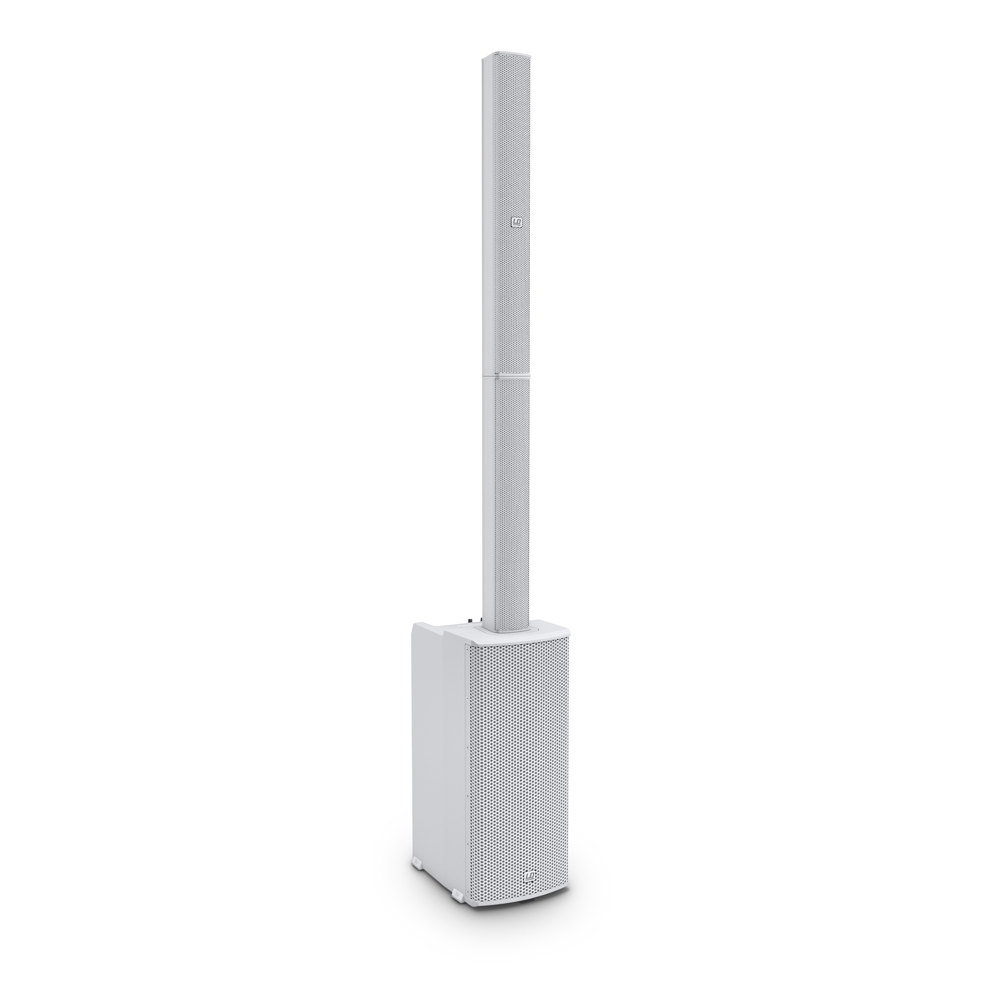

MAUI 11 G2 W

MAUI 11 G2 W

Portable Column PA System with Mixer and Bluetooth white

Item no.: LDMAUI11G2W

Guarantee: 24 months

EAN: 4049521206504

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:MAUI

Versions:

Item highlights:

  • All-in-one column speaker for PA and monitor applications
  • 1,000 watts peak Class-D system power offer high performance with a low weight
  • Powerful bass reproduction with 3 x 6.5" woofers
  • Balanced mids thanks to the 8 x 3" full-range speakers
  • Precise and silky highs with 2 x 1" high-frequency drivers
  • Increased range and wider coverage through the array arrangement
  • Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
  • Distortion-free sound even at the highest volume thanks to LD Systems DynX® DSP technology
  • Full control through a 4-channel mixer including Bluetooth® Stereo Audio Streaming
  • Two-piece column for compact transport
  • Secure plug-and-play connection thanks to the wireless multi-pin mechanism
  • A wide range of application options through dismountable columns
  • Easy operation with presets for mono or stereo configuration
  • Extensive and smart accessories for installation and transport

Specifications

Weight
24,9 kg
Product type
PA Complete Systems
Type
active
Color
white
Max. SPL (Peak)
124 dB
Frequency response
50 - 20000
Dispersion (H x V)
120° x 20 °
Overall height
2030 mm
Low/mid Woofer dimensions
3 x 6.5 "
Woofer dimensions (mm)
3 x 165.1 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil (inch)
1.5 "
Woofer voice coil (mm)
38.1 mm
Cabinet construction
Bass Reflex
Cabinet material
15 mm Plywood
Cabinet surface
texture paint
Subwoofer width
285 mm
Subwoofer height
650 mm
Subwoofer depth
373 mm
Subwoofer weight
16.9 kg
Midrange dimensions
8 x 3 "
Midrange dimensions (mm)
8 x 76.2 mm
Midrange magnet
Ferrite
Midrange brand
Custom-made
Midrange voice coil
1 ", 25.4 mm
Horn
Waveguide
Tweeter dimensions
2 x1 "
Tweeter dimensions (mm)
25.4 mm
Tweeter magnet
Neodymium
Tweeter brand
Custom-made
Tweeter voice coil
1 "
Tweeter voice coil (mm)
25.4 mm
Loudspeaker inputs
1
Speaker input connections
Custom-made multipin
Cabinet construction mid/high
Closed
Mid/Hi system cabinet material
Aluminium
Mid/Hi system cabinet surface
HD coating
Mid/Hi system width
96 mm
Mid/Hi system height
620 / 730 mm
Mid/Hi system depth
104 mm
Mid/Hi system weight
5.4 / 2.6 kg
Amplifier
Class D
Amplifier output system (RMS)
500 W
Amplifier output system (peak)
1000 W
Protection circuits
DC protection, thermal overload, Short circuit, Multiband limiter
Cooling
Convection
Operating Temperature
0 - 40 °C
Humidity Range
10% to 80%, (non-condensing)
Controls
Hi-Z Level, MP3/Bluetooth Level, Mono/stereo switch, Power, Line level, Main level, Bluetooth switch, Sub level
Indicators
Limit, mono, On, Signal, Setup, Protect (protection circuit engaged), stereo
Power supply connector
IEC power cable (included)
Power supply
100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Power consumption Off / On / Max.
0/11/600 W
Line inputs
2 x stereo
Line input connectors
RCA, XLR/6.3 mm jack
Line outputs
1 x direct out
Line output connectors
XLR
Mic inputs
1, XLR/6.3 mm jack
MP3 inputs
1
MP3 input connectors
3.5 mm jack
Hi-Z inputs
1
Hi-Z input connectors
6.3 mm jack
Loudspeaker outputs
1
Speaker output connections
Custom-made multipin
Bit depth AD/DA converter
24 bit
Internal sampling frequency
48 kHz
Signal/noise ratio
100 dB

Description

MAUI 11 G2 W

A complete sound system that you can carry together with your instrument: introducing the MAUI 11 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as a PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 11 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed after years of experience in the design of the column systems as a user-friendly solution for small to medium-sized gigs and fixed installations.

The MAUI 11 G2 is equipped with three 6.5" woofers, eight 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier boasting 1,000 watts of peak power and producing a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides top-class performance each time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way-crossover with run time correction.

The design of the MAUI 11 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.

With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer or DJ, you will be thrilled with the extraordinary sound and portability of the MAUI 11 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 11 G2 is a well thought out overall solution, down to the last details.
