MONICON S G2

MONICON S G2

Passive Volume Controller

Item no.: PMONICONSG2

Guarantee: 60 months

EAN: 4049521980442

Sliding scale: 1

Unit: Piece

Packaging unit: 20

Series:Monicon Series

Versions:

Item highlights:

  • Input: 1x Stereo (RCA)
  • Output: 1x Stereo (RCA)
  • Large precision volume control
  • MONO switch to check the mono compatibility
  • Ultra-compact design for space-saving integration
  • latency-free analogue audio signal path
  • Engineered in Germany

Specifications

Type
Passive
Material
Plastic, Steel sheet
Coating
Powder coated
Colour
Black
Number of channels
1
Input signal type
Unbalanced
Balanced Line-In connector type
2 x RCA female (Stereo)
Number of unbalanced line inputs
1
Input impedance (balanced)
10 kΩ
Min. SNR (< 1% THD, 1 kHz, unity, A-weighted)
112 dB
Output signal type
Unbalanced
Number of unbalanced line outputs
1
Unbalanced line outputs connector type
2 x RCA female (Stereo)
Max. output level (<1 % THD, 20 Hz - 20 kHz)
20 dBu
Unbalanced output impedance (1 kHz)
600 Ω
Maximum air humidity (non-condensing)
80 %
Width
86 mm
Height
39 mm
Depth
66 mm
Weight
120 g

Description

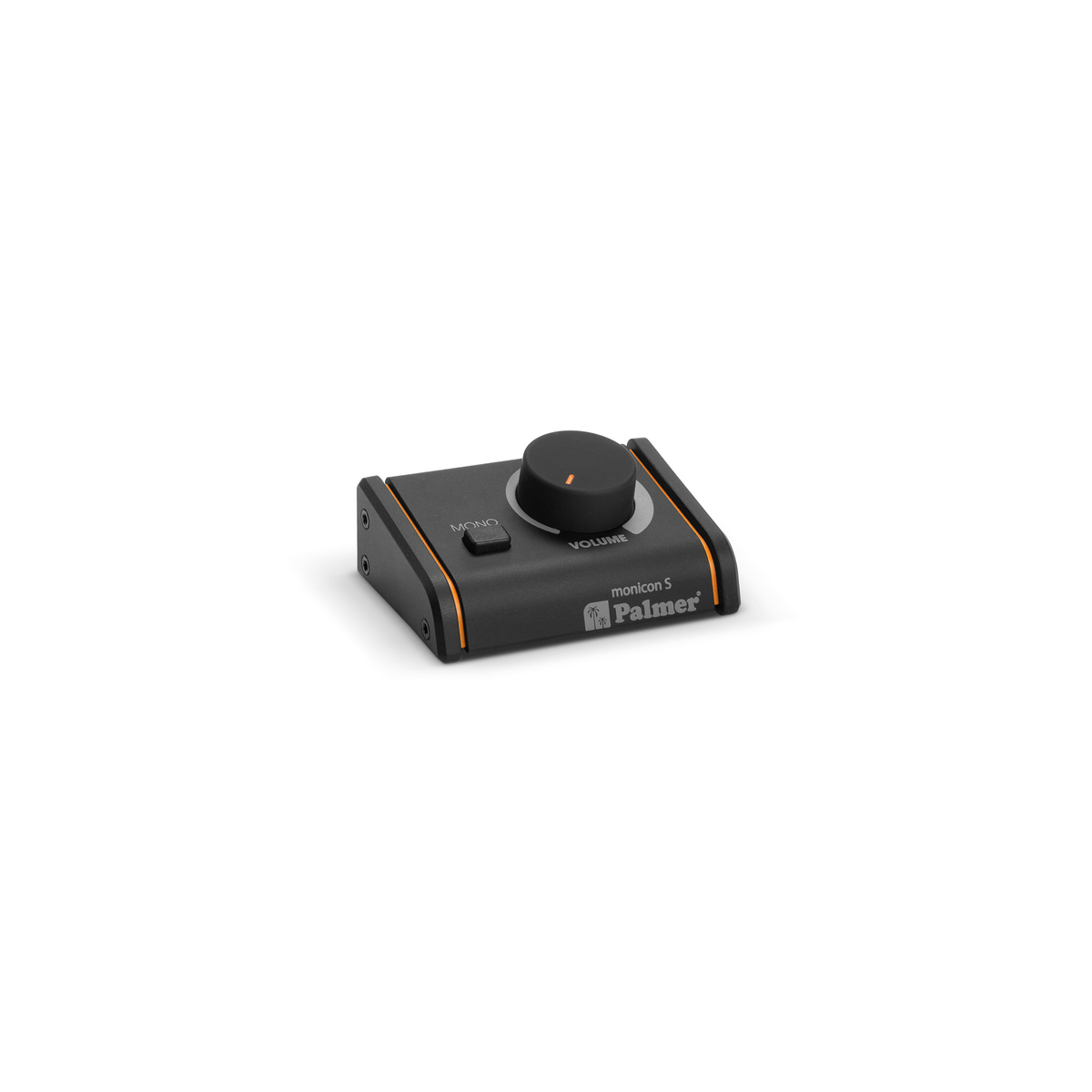

MONICON S G2

The MONICON S is an extremely compact volume controller for any set-up. Digital volume controls on laptops or audio interfaces are often imprecise or cumbersome. The MONICON S offers a precise, hands-on, and convincingly touch-responsive solution. It is easily connected between the audio interface and active speakers via RCA inputs and outputs, where it takes over the central level control.

The large analogue rotary control allows the volume to be carefully and accurately adjusted. Its completely passive design means it requires no power supply and guarantees latency-free, pristine sound.

Thanks to its robust design and straightforward operation, the MONICON S is the ideal addition for small studios or mobile set-ups where sound fidelity and direct operability are required.
