MONICON L G2

MONICON L G2

Active / Passive Studio Monitor Controller

Item no.: PMONICONLG2

Guarantee: 60 months

EAN: 4049521980480

Sliding scale: 1

Unit: Piece

Packaging unit: 20

Series:Monicon Series

Versions:

Item highlights:

  • Inputs: 3× Stereo (balanced XLR/TRS Combo, AUX and Bluetooth)
  • Outputs: 2× Stereo, 1× Mono outputs (balanced XLR)
  • Latency-free analogue audio signal path
  • Supports both passive and active operation
  • Large precision volume control
  • AUX/Bluetooth input with dedicated volume control
  • Stereo Phones output with independent volume control
  • Input and output source selectors with Status LEDs
  • Dedicated switches for MONO, DIM, MUTE and PFL source
  • Robust and ergonomic desktop housing
  • Engineered in Germany

Specifications

Type
Passive
Material
Aluminium, Steel sheet
Frequency response (±0.2 dB, rel. Avg)
20 - 20,000 Hz
Colour
Black
Bluetooth® version
Bluetooth® 5.3
Features
Audio Streaming (A2DP)
Supported audio codecs
SBC
Input signal type
Balanced & Unbalanced (parallel)
Number of balanced line inputs
2
Balanced Line-In connector type
XLR combo socket
Number of unbalanced line inputs
2
Unbalanced Line-In connector type
2 x RCA female (Stereo)
Nom. input clipping, balanced (< 1% THD, 1 kHz, unity)
20 dBu
Nom. input clipping, unbalanced (< 1% THD, 1 kHz, unity)
15 dBu
Input impedance (balanced)
20 kΩ
Input impedance (unbalanced)
10 kΩ
THD+N
≤ 0.001 % (+4 dBu)
Min. CMRR (0 dB below clip, 1 kHz, unity)
55 dB
Min. SNR (< 1% THD, 1 kHz, unity, A-weighted)
112 dB
Output signal type
Headphone, Balanced
Number of balanced line outputs
5
Balanced line outputs connector type
XLR 3-pole male
Number of Headphone outs
1
Headphone out connector type
6.3 mm Jack TRS female
Min. headphone impedance
10 Ω
Max. headphone out power
100 mW
Max. output level (<1 % THD, 20 Hz - 20 kHz)
20 dBu
Balanced output impedance (1 kHz)
600 Ω
Dynamic range (AES17)
> 115 dB
Power supply type
External switched-mode power supply (SMPS)
Ambient temperature
0 - 40 °C
Maximum air humidity (non-condensing)
80 %
Width
218 mm
Height
76 mm
Depth
124 mm
Weight
910 g
Crosstalk
-79 dB

Description

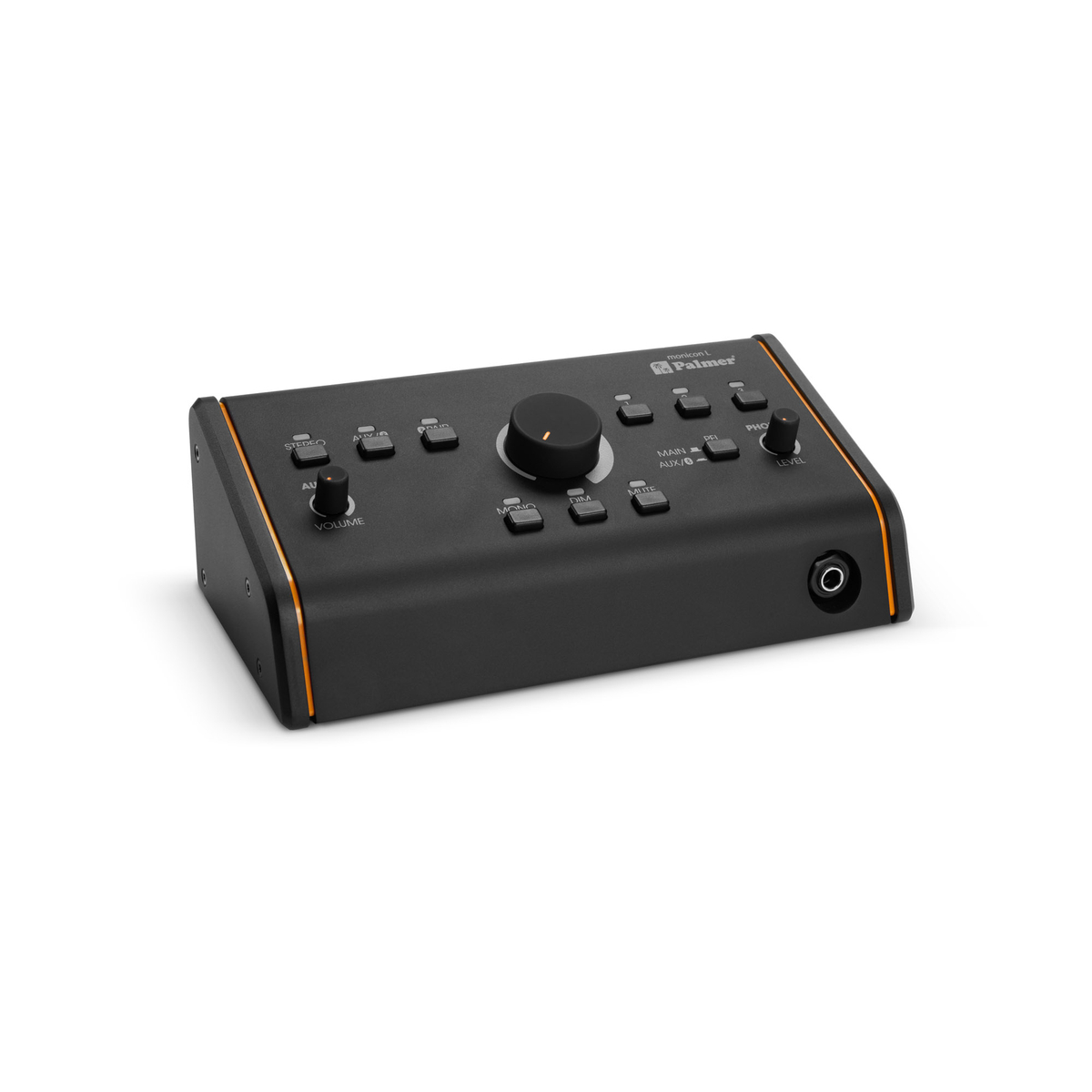

MONICON L G2

The MONICON L is a versatile, compact studio monitor controller for professional project studios and ambitious home set-ups. It features three inputs for different signal sources: balanced via XLR/TRS combo sockets as well as AUX and Bluetooth for mobile or digital devices. The inputs and outputs can be switched on/off via dedicated buttons with LED status display.

Two stereo outputs and an additional mono output allow flexible control of the speakers, for example, for main monitors, nearfield systems, or subwoofers. The large analogue volume control allows precise control of the output level.

Functions such as “Mono,” “Dim,” and “Mute” support practical monitoring conditions and facilitate quick adjustments in everyday studio life.

With its own volume control and PFL function, a separate headphone output allows isolated pre-listening to input signals without affecting the main mix.

The integrated power supply provides power to the Bluetooth, the headphone amplifier, and output three. The signal path itself stays entirely analogue, which makes latency-free and pristine audio playback possible. MONICON L stands for reliable signal management, transparent sound control, and intuitive operation.
