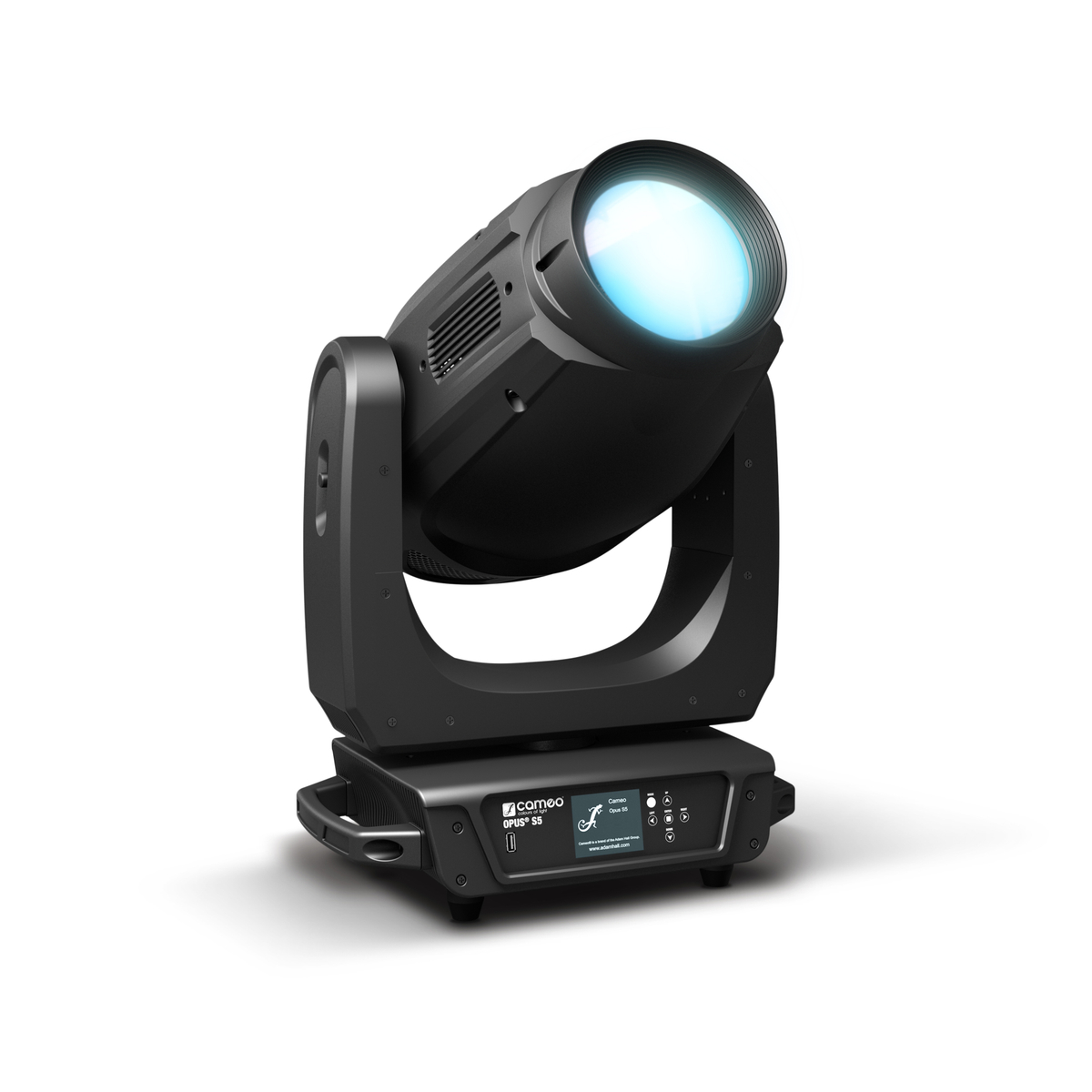

OPUS® S5

Spot Moving Head

Item no.: CLOS5

Guarantee: 24 months

EAN: 4049521338571

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:OPUS® Series

Versions:

Questions about the item?

Item highlights:

Compact super bright Spot Moving Head with 17.500 lm output and huge illuminance of 39,000 lux @ 5 m
Advanced CMY colour mixing system plus colour wheel with 7 dichroic filters
Linear CTO correction from 6,500 - 2,600 K
Highly efficient optics with extra wide 6° - 46° zoom range
Even and flat projection field without hot spots at any zoom angle
Rotating animation wheel
Rotating gobo wheel with 7 interchangeable indexable glass gobos + open
Static gobo wheel with 8 interchangeable glass gobos + open
Rotatable and indexable 3-facet circular prism plus 6-facet linear prism
Variable frost for wash-like effects plus stepless iris
Ultra smooth 16-bit dimming with 4 selectable curves
Flicker-free operation thanks to selectable PWM frequencies up to 25 kHz
Battery powered touchscreen display plus 6 touch buttons for offline configuration
Flexible control via built-in W-DMX™ Transceiver, DMX, RDM, Art-Net or sACN

Features

This product is ETL certified.

The W-DMX™ feature facilitates the wireless transmission of DMX control data.

(Gobo wheel)
Gobo wheels are fitted with static or rotating gobos made of metal or glass. Gobos are essentially templates that allow the projection of patterns, shapes and graphics.

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Linear CTO
This spotlight has a continuously variable CTO correction function (colour temperature orange) which enables settings from cold white to tungsten and warm white.

Circular prism
A circular prism multiplies the beam or the gobo projection, placing the result inside a circle.

Colour wheel
Turning the colour wheel, which is fitted with various filters, enables very fast changes of colour.

Linear prism
A linear prism multiplies the beam or the gobo projection, placing the result inside a row.

Focus
The focus function serves to focus the light beam and the gobo projection at any distance.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

RDM
This device has full RDM capability. The RDM protocol supplements the DMX protocol and enables bidirectional communication via a standard DMX network. It simplifies configuration, administration and monitoring of RDM devices connected to an RDM controller.

Cold white
According to the colour temperature scale in Kelvin (K), “cold white” is a very bright, clear light in the colour temperature range between 5,000 and 10,000 K; it is slightly artificial in character and goes well with rich primary colours.

ARTNET compatible
The device is ArtNet compatible. ArtNet is a network protocol for transmitting DMX-512 or RDM data via an ethernet connection.

CMY
This spotlight uses a white light source and subtractive CMY colour blending (cyan, magenta, yellow) for an extremely large palette of colours.

Animation wheel
The rotating animation wheel provides three-dimensional effects and is especially effective when used in combination with gobos.

The high-frequency control of the LEDs while dimming ensures flicker-free operation, including for filming purposes.

sACN compatible
This spotlight is compatible with the sACN protocol (streaming ACN) for transporting DMX data via a network.

Specifications

Product type

LED Moving Lights

Type

Profiles

Colour spectrum

Cold white

Number of LEDs

1

Color temperature

6700 K

Average LED lifetime

> 20000 hours

LED type

380 W

Dispersion

6 - 48 °

Effects

Focus, Heavy Frost, Iris, Prism, Zoom

Colour mixing function

CMY + CTO

LED PWM Frequency

650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 25000 Hz (adjustable)

Color wheel

1

Number of gobos

15 + open (8 fixed + 7 rotating)

DMX input

XLR 3-pin male, XLR 5-pin male

DMX output

XLR 3-pin female, XLR 5-pin female

DMX mode

27-channel, 33-channel

DMX Functions

Animation Wheel, Auto Movement, CTO, CTO Fine, Cyan, Cyan Fine, Dimmer, Dimmer Fine, Colour wheel, Focus, Focus Fine, Frost, Device Settings, Gobo wheel, Gobo Wheel 1, Gobo Wheel 2, Iris, Magenta, Magenta Fine, PAN, PAN FINE, Prism, Rotation Fine, Rotation Gobo Wheel 1, Rotation Prism, Set Dimmer Curve, Strobe, TILT, TILT FINE, Yellow, Yellow Fine, Zoom, Zoom Fine

PAN movement

540°

TILT movement

270°

High Speed Strobe

> 20 Hz

Standalone modes

Master/Slave Mode, Static Mode

Control

ArtNet, DMX, Master/Slave Signal, RDM, Wireless DMX, sACN

Controls

Down, Enter, Left, Mode, Right, Up

Indicators

Graphic Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz, Neutrik True 1 IN / OUT

Power consumption

650 W

Power supply connector

Neutrik powerCON TRUE1 TOP

Housing material

ABS plastic, Metal

Cabinet colour

Black

Protection class IP

IP20

Cooling

Silent, temperature controlled fan

Luminous flux

17500 lm

Maximum Ambient Temperature

-10 - 45 °C

Width

400 mm

Height

630 mm

Depth

250 mm

Weight

24 kg

Accessories (included)

2 x omega mounting, User's manual, Power cord, Power Cord with Neutrik powerCON TRUE1 Connector

Description

OPUS® S5

Illuminating stages with brilliant, lively colours, the Cameo OPUS® S5 is a compact super bright spot moving head with a powerful 380 W white LED engine, CMY mixing system and linear CTO correction. It is highly effective in venues of all sizes thanks to its wide zoom range. An additional colour wheel with 7 dichroic filters enables instant colour changes and split colour projection. The fixture has an enormous 17,500 lm output, huge illuminance of 39,000 lux at a distance of 5 meters and rapid 540° pan and 270° tilt movement. Permitting extensive beam control, the highly efficient optics feature an extra wide zoom range from 6° to 46° and stepless iris. A continuously variable frost filter provides soft, wash-like diffusion.

Generating spectacular morphing effects when used simultaneously, the OPUS® S5 has two gobo wheels with 7 rotating and 8 static glass gobos which can also be used in combination with the rotating animation wheel for amazingly vivid projections. In addition to a rotatable and indexable 3-facet circular prism and a 6-facet linear prism to multiply gobo projection, the luminaire includes 16-bit dimming with a choice of 4 curves.

The OPUS® S5 offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver. It has a rugged ABS and metal housing with Neutrik® DMX and powerCON TRUE1 connectors and super efficient heat pipe cooling system with temperature controlled fans to ensure optimal cooling. A battery-powered touchscreen display with 6 additional touch buttons permits convenient offline configuration and two modes of menu navigation. The luminaire comes with two omega brackets and power cord.
