OCTAFLY RGBW

8 x 10W RGBW CREE LED Moving Effect Light

Item no.: CLOFRGBW

Guarantee: 24 months

EAN: 4049521179747

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Questions about the item?

Item highlights:

Quick sweeping 8-zone chase effect
Dual LED bars with independent tilt and 4 lenses each
8 x 10 watt Cree LEDs
Tightly focused 4.5° beam spread
4 modes of DMX control plus master, slave and standalone operation
4-button LED display for easy menu navigation
Master dimmer and strobe functions plus sound activation
Black metal enclosure with quiet fan cooling
Multi-voltage operation 100 - 240 V AC, 50 - 60 Hz
Easy-mount omega bracket included

Features

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

RGB additive colour system plus white LEDs
Additional white LEDs create more contrast and clearer colour boundaries. What is more, they improve the creation of white and pastel colours.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

Standalone mode
In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

Strobe
Strobes emit fast flash sequences, which makes movements appear “frozen” and creates a kind of slow-motion effect.

Specifications

Product type

LED Lighting Effects

Type

LED Effect Lights

Colour spectrum

8-channel multi colour

Number of LEDs

8

LED type

10 W Cree

Dispersion

4.5

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX mode

14-channel, 3-channel, 6-channel

DMX Functions

master dimmer, TILT 1, PIXEL CONTROL 1-8, PROGRAMM SPEED, TILT 2, Strobe, PROGRAMMS (CHASE)

Standalone modes

Show 1-24, Master / Slave mode

Controls

Value Up, Value Down, Mode, Enter

Indicators

LED Display, sound control

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

120 W

Power supply connector

Blue and white power I/O

Housing material

Metal

Cabinet colour

Black

Cooling

Convection

Width

395 mm

Height

138 mm

Depth

234 mm

Description

OCTAFLY RGBW

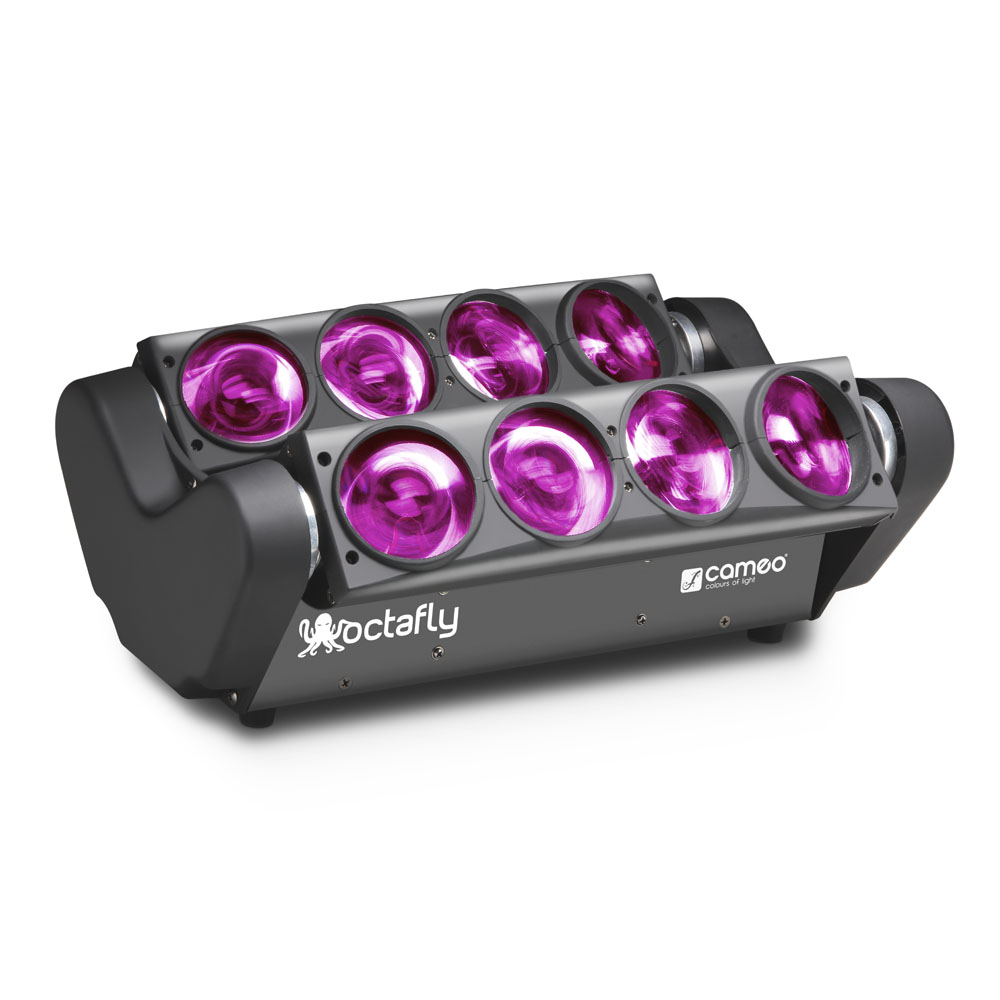

The Cameo Octafly RGBW is a quick sweeping 8-zone chase effect with dual LED bars that are individually tiltable. They feature four 10 watt quad-color Cree LEDs each with a tightly focused 4.5° beam spread and single pixel control.

Besides sound activation and Master, slave or standalone operation, the Octafly RGBW sports 3-channel, 7-channel, 10-channel and 36-channelmodes of DMX control. It includes master dimmer and strobe functions as well as 24 pre-programmed show modes. A 4-button LED display facilitates menu navigation.

The Octafly's durable, rugged metal enclosure integrates 3-pin and IEC connectors for DMX and mains input and output plus a low-noise fan for quiet operation on 100 - 240 V AC. The chase effect fixture comes with an omega bracket for multiple mounting options.
