NANOSPOT 300

VIDEO

Archive

NANOSPOT 300

LED Mini Moving Head 30 W

Item no.: CLNS300

Guarantee: 24 months

EAN: 4049521216848

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:NANO

Versions:

Questions about the item?

Item highlights:

Miniature moving head with single 30W LED
540 x 230 pan and tilt
Colour wheel with red, orange, yellow, green, blue, cyan and purple filters
Gobo wheel with 7 gobos
7 lightshow presets
Dimmer and strobe effects
3 DMX modes plus standalone, master and slave operation
4 function keys + display for manual control
Built-in microphone for sound control
IR remote control included
Comes with omega bracket for multiple mounting options

Features

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

Standalone mode
In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Infrared remote control
The device is fitted with an infrared sensor and can be controlled wirelessly using the IR remote control unit included.

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

Strobe
Strobes emit fast flash sequences, which makes movements appear “frozen” and creates a kind of slow-motion effect.

Specifications

Product type

LED Moving Lights

Type

LED Moving Effects

Colour spectrum

white

Number of LEDs

1

LED type

30 W

Dispersion

Beam 10° / Field 12

Number of gobos

7 + open

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX mode

9-channel, 11-channel, 5-channel

DMX Functions

Dimmer, Colour wheel, sound programs, Gobo wheel, Moving Speed, Auto programs, Strobe, Pan/Tilt, Pan/Tilt fine

PAN movement

540

TILT movement

230°

Standalone modes

Auto programs, sound programs

Controls

Value Up, Value Down, Mode, Enter

Indicators

LED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

100 W

Fuse

F2AL / 250 V

Power supply connector

IEC socket

Housing material

Metal, ABS plastic

Cabinet colour

Black

Cooling

fan

Illuminance

24500lx @ 1m

Luminous flux

650 lm

Width

165 mm

Height

280 mm

Depth

155 mm

Description

NANOSPOT 300

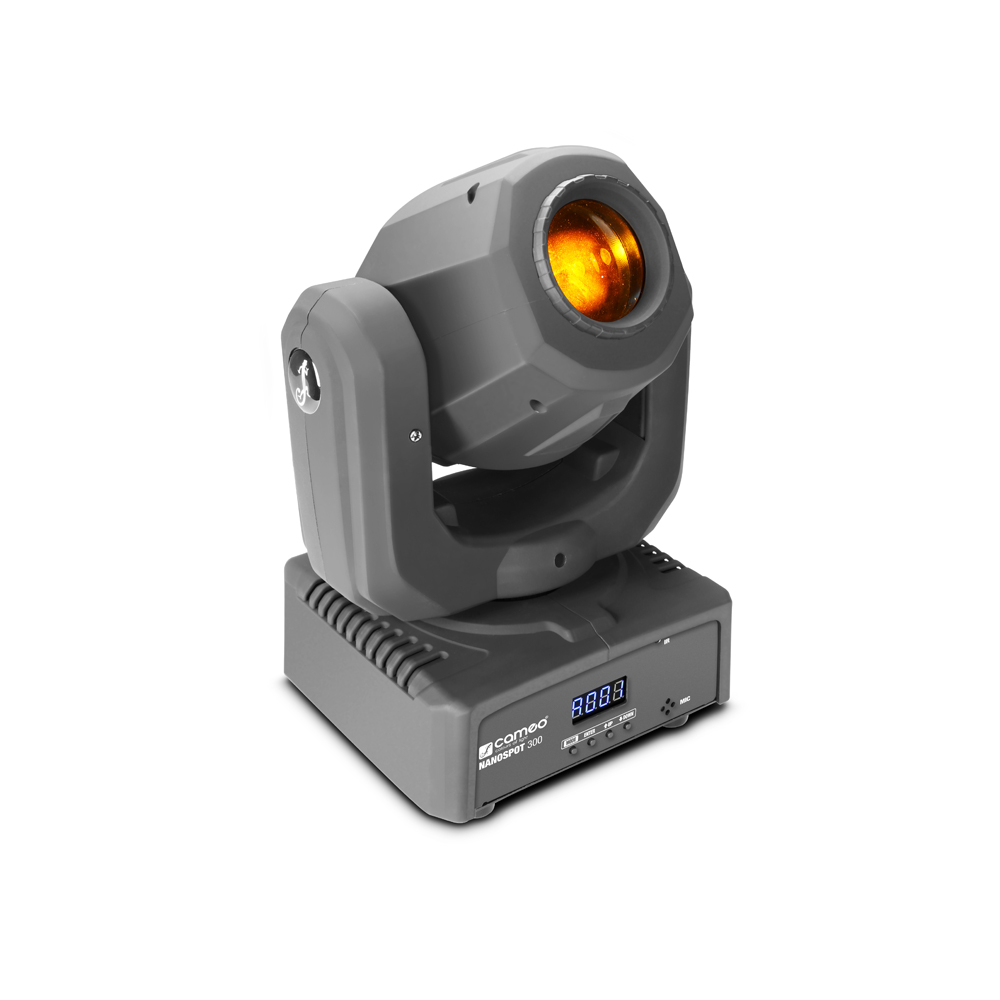

The Cameo NanoSpot 300 is a miniature moving head with 540° pan and 230° tilt that is powered by a single 30W LED. It sports a color wheel with red, orange, yellow, green, blue, cyan and purple filters, 7 attractive gobos plus 7 stunning lightshow presets.

The NanoSpot 300 includes all the features of larger moving head models such as 3 DMX modes, an integrated microphone for sound activation as well as master, slave and standalone operation. Setting is easy and intuitive via the bright 4-button display.

The Cameo NanoSpot 300 comes with an infrared handset for convenient remote control and an omega bracket which provides multiple mounting options.
