NanoRoll 200

Double LED Mini Barrel Scanner 10 W

Item no.: CLNROLL200

Guarantee: 24 months

EAN: 4049521217098

Sliding scale: 1

Unit: Piece

Packaging unit: 4

Series:NANO

Questions about the item?

Item highlights:

Miniature Double Barrel Scanner with 2 high-power 10W LEDs
2 independently controllable stepper motors for accurate positioning
Extremely fast 180° pan and unlimited tilt
5 DMX modes plus Standalone, Master and Slave operation
Sound Activation and Auto Mode with amazing built-in programs
High-speed strobe and dimmer functions
Convection Cooling
4-button LED display for easy configuration

Features

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

RGB additive colour system plus white LEDs
Additional white LEDs create more contrast and clearer colour boundaries. What is more, they improve the creation of white and pastel colours.

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

Quad colour RGBA/RGBW LEDs
Quad colour LEDs, also referred to as 4-in-1 LEDs, offer RGB colours but also an additional amber-coloured emitter for richer colours and an additional white emitter for improved contrast and greater definition.

Strobe
Strobes emit fast flash sequences, which makes movements appear “frozen” and creates a kind of slow-motion effect.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

Standalone mode
In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

Specifications

Product type

LED Moving Lights

Type

LED Scanners

Colour spectrum

RGBW

Number of LEDs

2

LED type

10 W

Dispersion

4 °

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

Protocols

USITT DMX 512 protocol

DMX mode

11-channel, 16-channel, 19-channel, 2-channel, 4-channel

DMX Functions

Auto programs, Dimmer, PAN, sound programs, Strobe, TILT

Wireless DMX

No

PAN movement

180°

TILT movement

unlimited

High Speed Strobe

1 - 20 Hz

Standalone modes

Auto programs, sound programs

Controls

Enter, Mode, Value Down, Value Up

Indicators

LED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

40 W

Fuse

F3AL / 250 V

Power supply connector

IEC power input and output

Max. output current

4 A

Housing material

ABS plastic, Metal

Cabinet colour

Black

Protection class IP

IP20

Cooling

Convection

Maximum Ambient Temperature

32 °F - 40° °C

Width

275 mm

Height

300 mm

Depth

143 mm

Weight

3,7 kg

Description

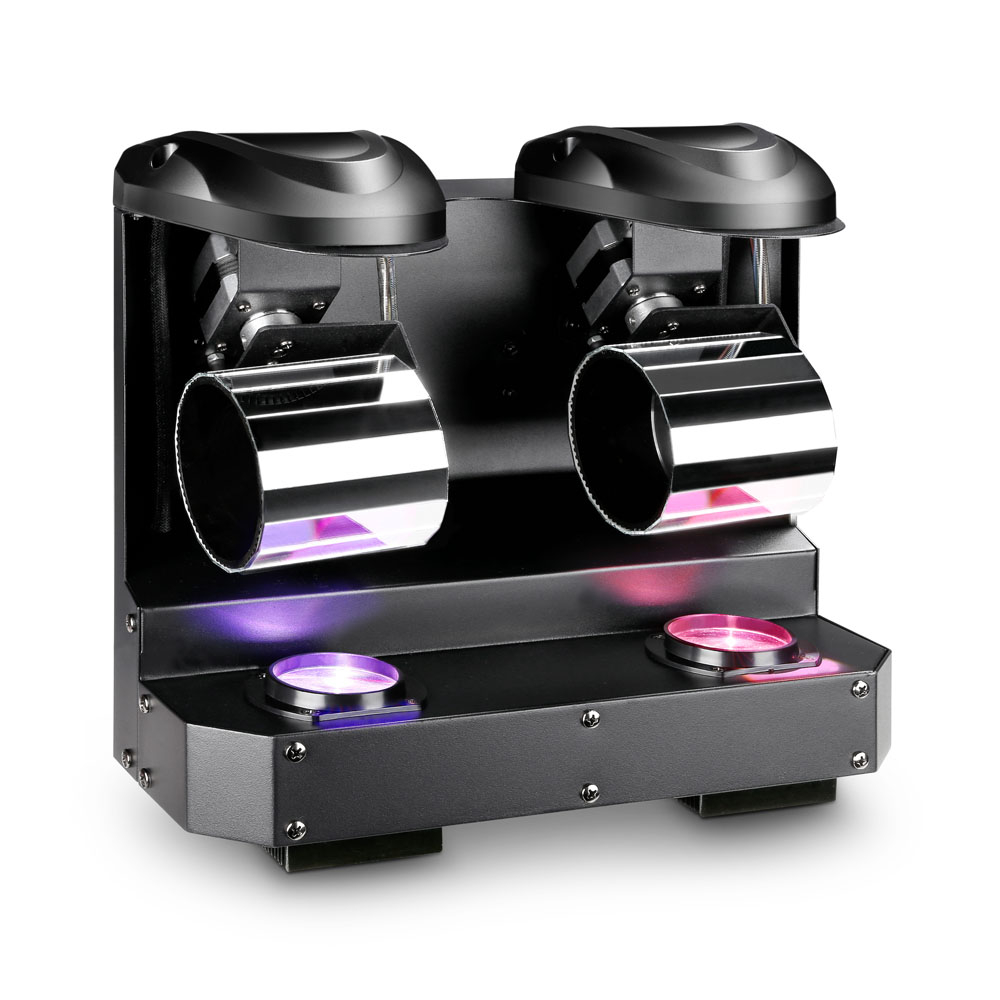

NanoRoll 200

With dual scanning barrel mirrors and a powerful 10 W RGBW LED source each side, the Cameo Nanoroll 200 produces intense lighting with twice the excitement and motion. Sweeping colourful beams with a tight 4° spread across the room, the fixture’s high-speed precision motors and colour mixing are independently controllable. With adjustable direction and speed, the motors are capable of 180° pan and continuous tilt, and beams can easily be synchronized or crisscrossed to achieve stunning effects. In addition, the Nanoroll 200 includes a rapid strobe and dimmer functions.

This compact-sized twin barrel scanner features a selection of 12 awesome built-in programs for automated or sound-activated operation and 5 modes of DMX control. A clear 4-button LED display provides easy configuration and menu navigation while 3- pin DMX and IEC power inputs and outputs enable linking multiple units. With its light weight and reduced dimensions, the Cameo Nanoroll 200 is easily portable and the ideal choice for energetic lighting where space is limited.
