NANO ROLL 100
Archive

NANO ROLL 100

Barrel Scanner with 7 Gobos

Item no.: CLNROLL100

Guarantee: 24 months

EAN: 4049521257711

Sliding scale: 1

Unit: Piece

Packaging unit: 4

Series:Scanner

Item highlights:

  • Miniature barrel scanner with gobo wheel
  • Single high-power 10W Cree LED
  • Precision high-speed rotation and pan for vibrant effects
  • Gobo wheel with 7 gobos + open
  • Colour wheel with red, orange, yellow, green, cyan, magenta and blue filters + open
  • Gobo and colour wheels individually controllable
  • Dimming, high-speed strobe, shutter and gobo shake functions
  • 3 DMX modes plus master and slave operation
  • 17 auto run programs and built-in microphone for sound activation
  • 4-button display for easy configuration and manual control
  • Convection cooling

Features

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

Specifications

Product type
LED Moving Lights
Type
LED Scanners
Colour spectrum
8-channel multi colour
Number of LEDs
1
LED type
10 W
Number of gobos
7 + open
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
Protocols
USITT DMX 512 protocol
DMX mode
10-channel, 2-channel, 8-channel
DMX Functions
Auto programs, Colour wheel, Dimmer, Adjustable audio sensitivity, Gobo wheel, PAN, Pan speed, reset, Roll, sound control, Speed, Strobe
PAN movement
180°
TILT movement
unlimited
High Speed Strobe
1 - 20 Hz
Standalone modes
Auto run, Show, sound control
Controls
+, -, Enter, Mode, Value Down, Value Up
Indicators
LED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
25 W
Fuse
F3AL / 250 V
Power supply connector
IEC power input and output
Max. output current
3 A
Housing material
ABS plastic, Metal
Cabinet colour
Black
Protection class IP
IP20
Cooling
Convection
Maximum Ambient Temperature
32 °F - 40° °C
Width
130 mm
Height
339 mm
Depth
129 mm
Weight
2,3 kg

Description

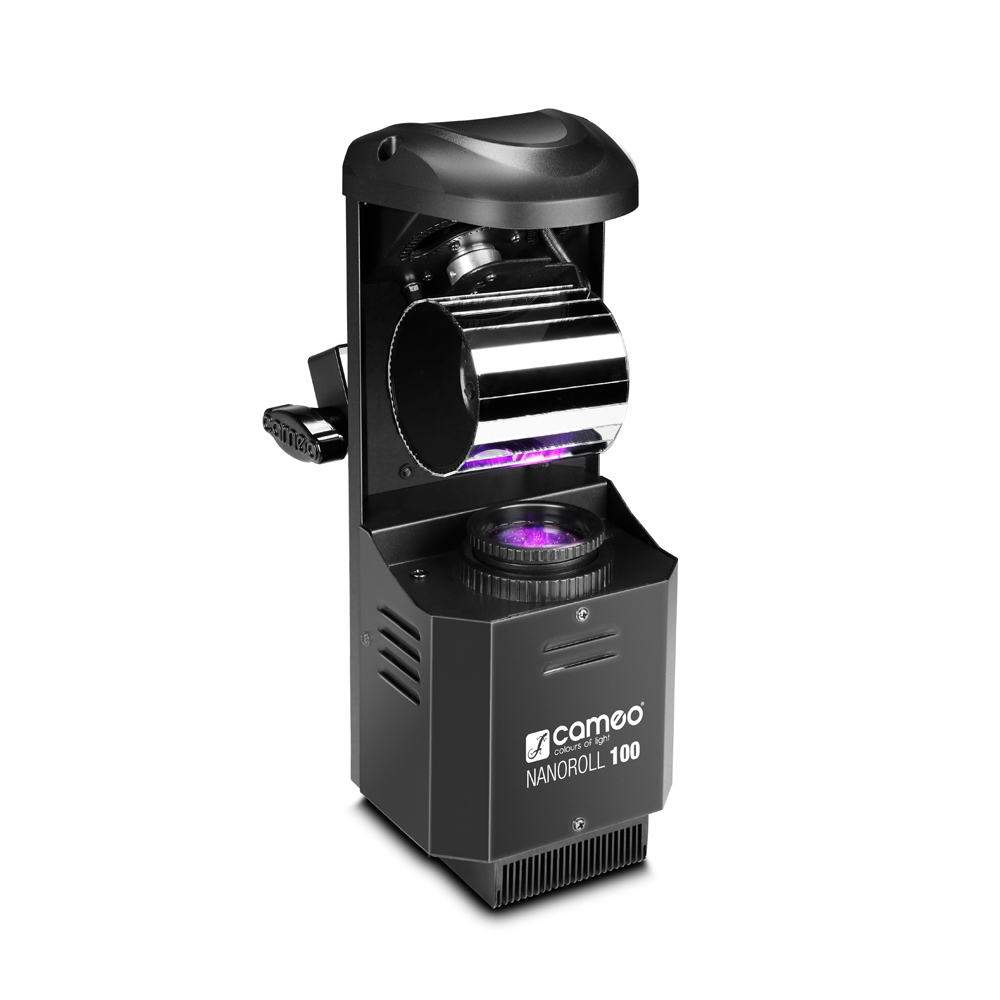

NANO ROLL 100

Sporting individually controllable gobo and colour wheels and a long life high-power 10 W LED by Cree, the Cameo Nanoroll 100 generates spectacular moving light effects. This compact barrel scanner offers a selection of 7 detailed gobos and 7 intense colours plus 20 Hz strobe, dimming, shutter and gobo shake functions for additional flexibility. The mirrored barrel moves with smooth precision and speed providing 180° pan and continuous 360° rotation.

The Nanoroll 100 comes in a rugged metal and ABS housing that features convection cooling for silent operation and a 4-button LED display for easy configuration. 3-pin DMX and IEC power inputs and outputs enable easy daisy chaining and power linking. With 3 modes of DMX control, 17 exciting automated programs and a built-in microphone for sound activation, the Cameo Nanoroll 100 is a versatile fixture that is ideal for mobile DJs, bars, clubs and entertainment centres.
