LED DROPIX SET

VIDEO

Archive

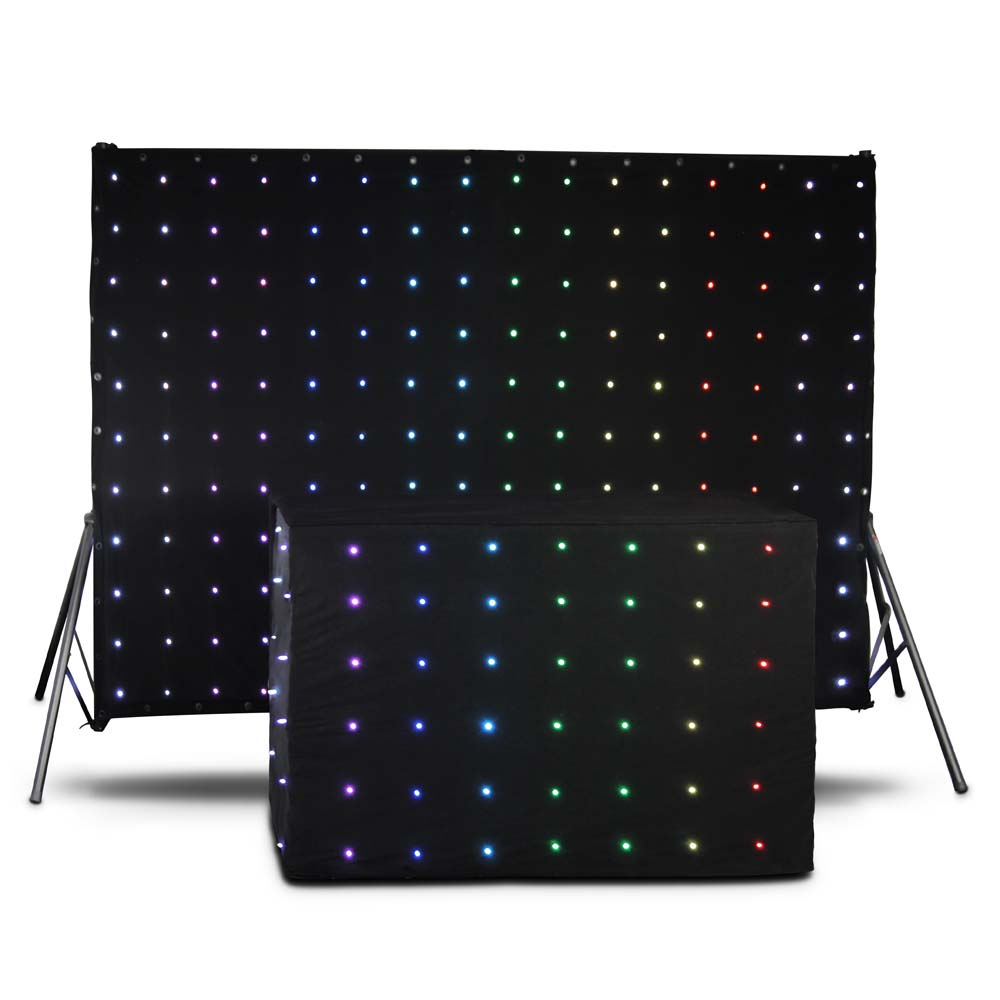

LED DROPIX SET

Set consisting of 2 professional LED curtains with matrix effects, controller and extension cable

Item no.: CLDROPIXSET

Guarantee: 24 months

EAN: 4049521175893

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Questions about the item?

Item highlights:

The Mobile LED curtains LED DROPIX 66 and LED DROPIX 176 from Cameo Light generate 30 impressive matrix effects with RGB colour mixing and a wide viewing angle. The particularly bright and durable tri-colour SMD LEDs are arranged at 18 cm intervals on opaque Molton fabric with eyelets all around for easy suspension and are certified according to DIN4102 B1.

The animated lighting effects provide the perfect backdrop for bands, clubs and mobile DJs, and can be controlled via the corresponding controller, 8 DMX channels, external sound sources and the integrated automatic control.

The professional LED curtains can be easily combined and operated synchronously. They are supplied with connection and power cord, controller and reusable cable ties in a handy carrying bag and are also available as a set (Art. No. CLDROPIXSET).

Features

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

RGB additive colour system
With additive colour blending, all colours and white are created by blending different amounts of red, green and blue light. The RGB system is used in televisions, computer monitors and digital cameras, for example.

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

Strobe
Strobes emit fast flash sequences, which makes movements appear “frozen” and creates a kind of slow-motion effect.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

Standalone mode
In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

Specifications

Product type

LED Lighting Effects

Type

LED Effect Lights

Other features

travel bag included

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

Output for Curtain

XLR 4-Pol female (LED DROPIX 176), XLR 4-Pol female (LED DROPIX 66)

DMX Functions

30 matrix auto programs, master dimmer, RGB, Strobe

DMX mode

3-channel, 5-channel, 8-channel

Standalone Functions

30 matrix auto programs, 30 matrix sound programs, Master / Slave mode

Controls

Down, Enter, Microphone sensitivity, Mode, Power On/Off, Up

Indicators

backlit, 2-line LC display

Power supply connector

IEC power connector male

Operating voltage

220 V - 240 V AC / 50 Hz

Power consumption

50 W

Fuse

F2AL / 250 V

Housing material

Metal

Cabinet colour

Black

Housing Cooling

Convection

Dimensions (W x H x D)

246 x 55 x 150 mm

Controller Weight

1.1

Controller Accessories

Power cord

Colour spectrum

RGB

Number of LEDs

66 + 176

LED type

SMD 3in1 LED

Curtain Fabric

B1 curtain fabric, flame resistant according to DIN 4102-1, hemmed curtain fabric with eyelets on all 4 sides, eyelet interval 20 cm

Curtain Colour

black, opaque

Curtain Dimensions (W x H)

2 m x 1.3 m, 3.1 m x 2 m

Curtain Weight

6.3 kg

Curtain Accessories

2 sets of replacement LEDs, 2 replacement cable sets, 2 sets of reusable cable ties for mounting
