HYDRABEAM 300 RGBW
Archive

HYDRABEAM 300 RGBW

Lighting System with 3 ultra-fast 10 W CREE RGBW Quad LED Moving Heads

Item no.: CLHB300RGBW

Guarantee: 24 months

EAN: 4049521196409

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Item highlights:

  • Triangular moving head fixture
  • 3 individually controllable ultra fast heads
  • 10W high power Cree RGBW Quad-LEDs
  • Universal mounting options
  • Omega bracket and detachable pole mount included
  • 16 effective automated operating modes
  • 5 DMX modes
  • 4 button LED display for easy manual control

Features

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

Specifications

Product type
LED Moving Lights
Type
LED Moving Effects
Colour spectrum
RGBW
Number of LEDs
3
LED type
10 W
Dispersion
4.5
DMX input
XLR 3-pin male
DMX output
XLR 3-pin female
DMX mode
16-channel, 10-channel, 26-channel, 6-channel, 36-channel
DMX Functions
TILT, Dimmer, PAN, colour change, Strobe
PAN movement
540°
TILT movement
270
High Speed Strobe
20 Hz
Standalone modes
sound control, Auto run
Controls
Value Up, Value Down
Indicators
LED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
60 W
Fuse
T1.5AL / 250 V
Power supply connector
IEC power connector male
Housing material
Metal, ABS plastic
Cabinet colour
Black
Cooling
low-noise fan
Illuminance
green 22,400lx @ 1m, red 9,600lx @ 1m, blue 4,650lx @ 1m, white 31,000lx @ 1m
Width
380 mm
Height
240 mm
Depth
380 mm

Description

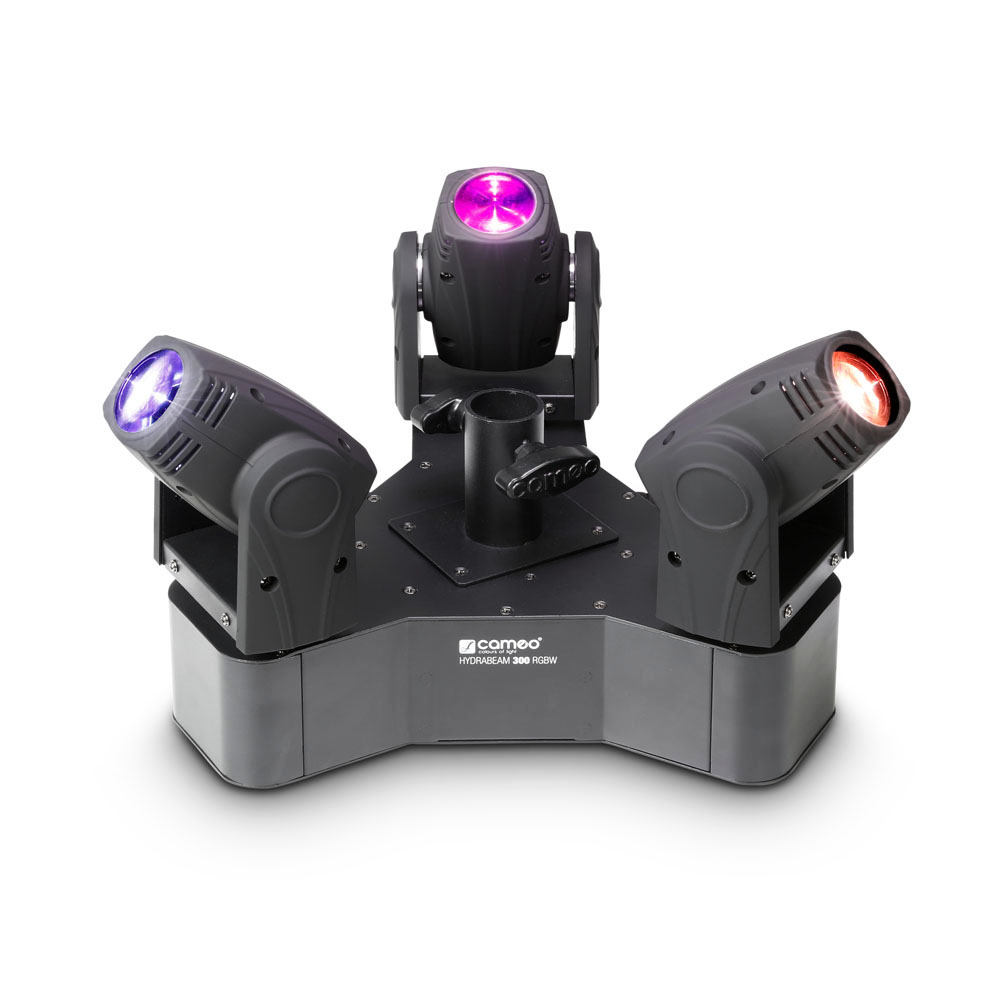

HYDRABEAM 300 RGBW

The Cameo HydraBeam 300 RGBW combines 3 ultra fast, individually controllable moving heads with 540° pan and 270° tilt in a single triangular fixture. They are equipped with high power 10W quad LEDs by Cree providing a beam width of 4.5° each. A low-noise fan keeps the fixture cool.

The HydraBeam 300 RGBW features 5 modes of DMX control plus sound activation. It can be used as standalone, master or slave and includes 16 automated operating modes, the strobe function fires up to 30 flashes per second.

The rugged black construction of steel and ABS sports a backlit display with four buttons for easy manual control. The Cameo HydraBeam 300 RGBW operates on 100 – 240 volts AC and comes with an omega bracket and detachable pole mount for universal mounting options.
