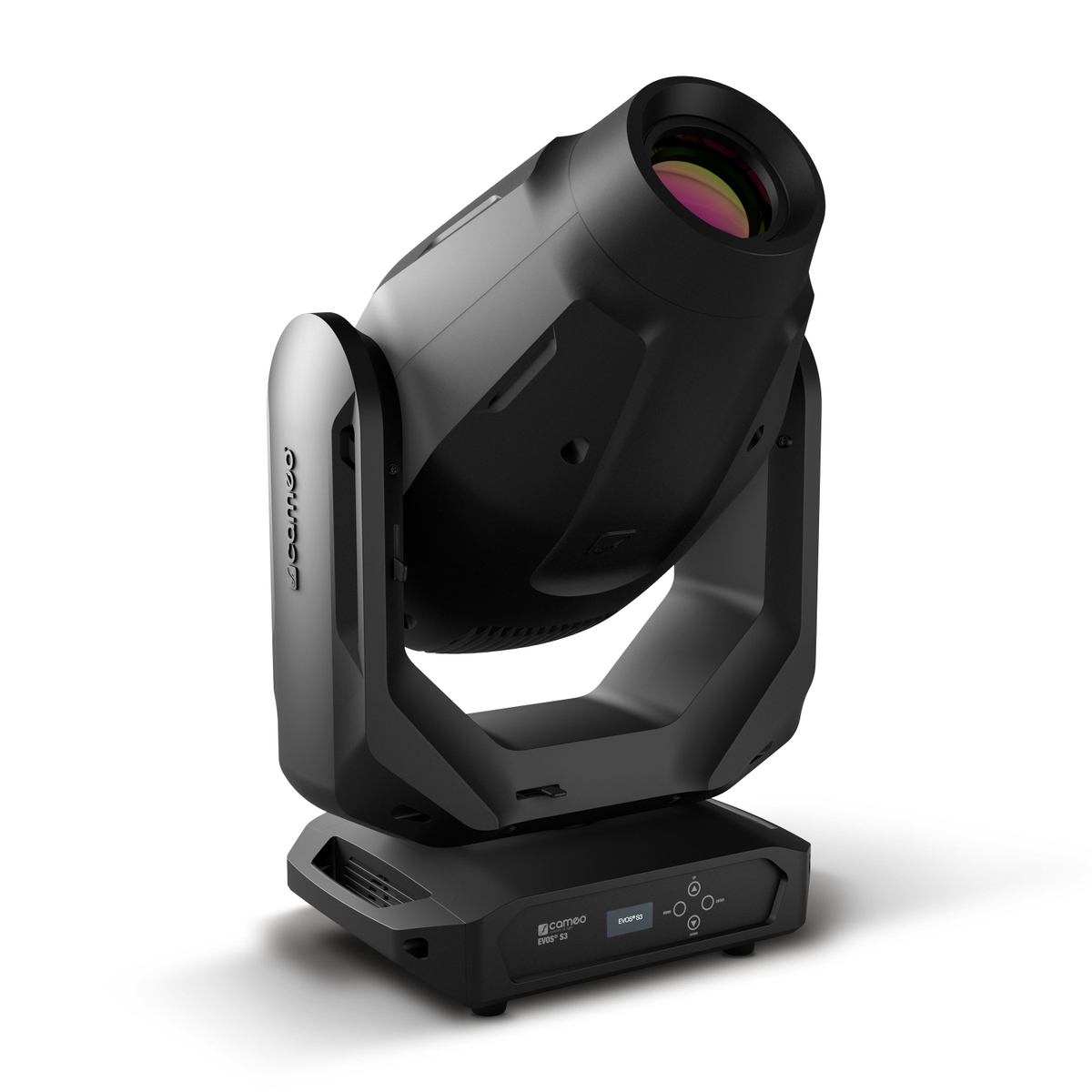

EVOS® S3

Spot Moving Head

Item no.: CLES3

Guarantee: 24 months

EAN: 4049521336676

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:EVOS® Series

Questions about the item?

Item highlights:

Super-bright LED spot moving head with 12,000 lm light output
Even, homogenous 1.5:1 ratio light distribution
CMY colour blending with linear CTO and additional colour wheel with 7 dichroic filters
Motorised zoom 10° to 38°
Motorised focusing
Rotating gobo wheel with 7 indexable and replaceable glass gobos + open
Static gobo wheel with 8 replaceable metal gobos + open
Rotatable and indexable circular 3-facet prism
Linear frost filter and continuously variable iris diaphragm with pulse effects of up to 2 Hz
Flexible control options via built-in W-DMX™ transceiver, DMX, RDM, Art-Net or sACN

Features

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Cold white
According to the colour temperature scale in Kelvin (K), “cold white” is a very bright, clear light in the colour temperature range between 5,000 and 10,000 K; it is slightly artificial in character and goes well with rich primary colours.

The W-DMX™ feature facilitates the wireless transmission of DMX control data.

RDM
This device has full RDM capability. The RDM protocol supplements the DMX protocol and enables bidirectional communication via a standard DMX network. It simplifies configuration, administration and monitoring of RDM devices connected to an RDM controller.

ARTNET compatible
The device is ArtNet compatible. ArtNet is a network protocol for transmitting DMX-512 or RDM data via an ethernet connection.

sACN compatible
This spotlight is compatible with the sACN protocol (streaming ACN) for transporting DMX data via a network.

The high-frequency control of the LEDs while dimming ensures flicker-free operation, including for filming purposes.

CMY
This spotlight uses a white light source and subtractive CMY colour blending (cyan, magenta, yellow) for an extremely large palette of colours.

Linear CTO
This spotlight has a continuously variable CTO correction function (colour temperature orange) which enables settings from cold white to tungsten and warm white.

Colour wheel
Turning the colour wheel, which is fitted with various filters, enables very fast changes of colour.

Focus
The focus function serves to focus the light beam and the gobo projection at any distance.

Iris
The iris is a continuously variable opening for altering the diameter of the beam.

Gobo wheel
Gobo wheels are fitted with static or rotating gobos made of metal or glass. Gobos are essentially templates that allow the projection of patterns, shapes and graphics.

Circular prism
A circular prism multiplies the beam or the gobo projection, placing the result inside a circle.

This product is ETL certified.

Specifications

Product type

LED Moving Lights

Type

Moving Head

Colour spectrum

Cold white

Number of LEDs

1

Color temperature

6800

LED type

350 W

Refresh rate

adjustable to 25000

Dispersion

10 - 38

DMX input

XLR 3-pin male, XLR 5-pin male, RJ45 Ethernet In (ArtNET)

DMX output

XLR 5-pin female, RJ45 Ethernet Out (ArtNET), XLR 3-pin female

DMX mode

22-channel, 32-channel

DMX Functions

Yellow Fine, TILT FINE, Yellow, TILT, Dimmer, Focus Fine, Set Dimmer Curve, Colour wheel, Pan/Tilt Macros, Magenta Fine, CTO Fine, Frost, CTO, Gobo wheel, Magenta, Gobo Wheel 1, PAN, Iris, PAN FINE, Auto programs, Cyan Fine, Gobo Wheel Fine Index, Focus, Zoom Fine, Cyan, Prism, Strobe, Dimmer Fine, Zoom, Gobo Wheel Rotation & Index, Device Settings, Gobo Wheel 2

PAN movement

540°

TILT movement

270

High Speed Strobe

> 20 Hz

Standalone modes

Auto Mode, Device Settings, Static

Controls

Value Up, Value Down, Mode, Enter

Indicators

OLED Display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

460 W

Efficiency

26 lm/W

Housing material

Metal, ABS plastic

Cabinet colour

Black

Protection class IP

IP20

Cooling

Advanced heatpipe-liquid cooling system with temperature controlled fans

Illuminance

41,000 lx @3 m, (narrow), 14,760 lx @ 5 m (12°)

Luminous flux

12,000 lm

Maximum Ambient Temperature

-15 °C - 45 °C

Width

403 mm

Height

663 mm

Depth

257 mm

Features

Power cord, 2 x Omega Clamp

Description

EVOS® S3

The Cameo EVOS® S3 is a super-bright spot moving head with a powerful 350-watt cool white LED and specially developed optics for even light distribution. It offers an impressive light performance of 12,000 lm, fast 540° panning and 270° tilting and produces brilliant and vibrant colours with its CMY colour blending and linear CTO-correction. The spotlight also features a colour wheel with 7 dichroic filters and a motorised zoom changes the beam angle from a tight 10° to an expansive 38°. It is equipped with a motorised focus and a continuously variable iris diaphragm that facilitates pulse effects of up to 2 Hz, and a continuously adjustable frost filter supplies a soft, washlight-like spread.

With two gobo wheels and a circular 3-facet prism, the EVOS® S3 is equipped for impressive projections and effects. The rotating gobo wheel is fitted with 7 indexable glass gobos, the static gobo wheel is fitted with 8 metal gobos. All the gobos can easily be switched out and combined with the rotating and indexable prisms for maximum effect.

The EVOS® S3 offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver. It features robust metal and ABS housing with a silent, temperature-controlled fan, 3 and 5-pin DMX inputs and outputs and powerCON TRUE1-compatible power sockets. The spot moving head is supplied with two Omega brackets and power cable.
