AZOR® SP2

VIDEO

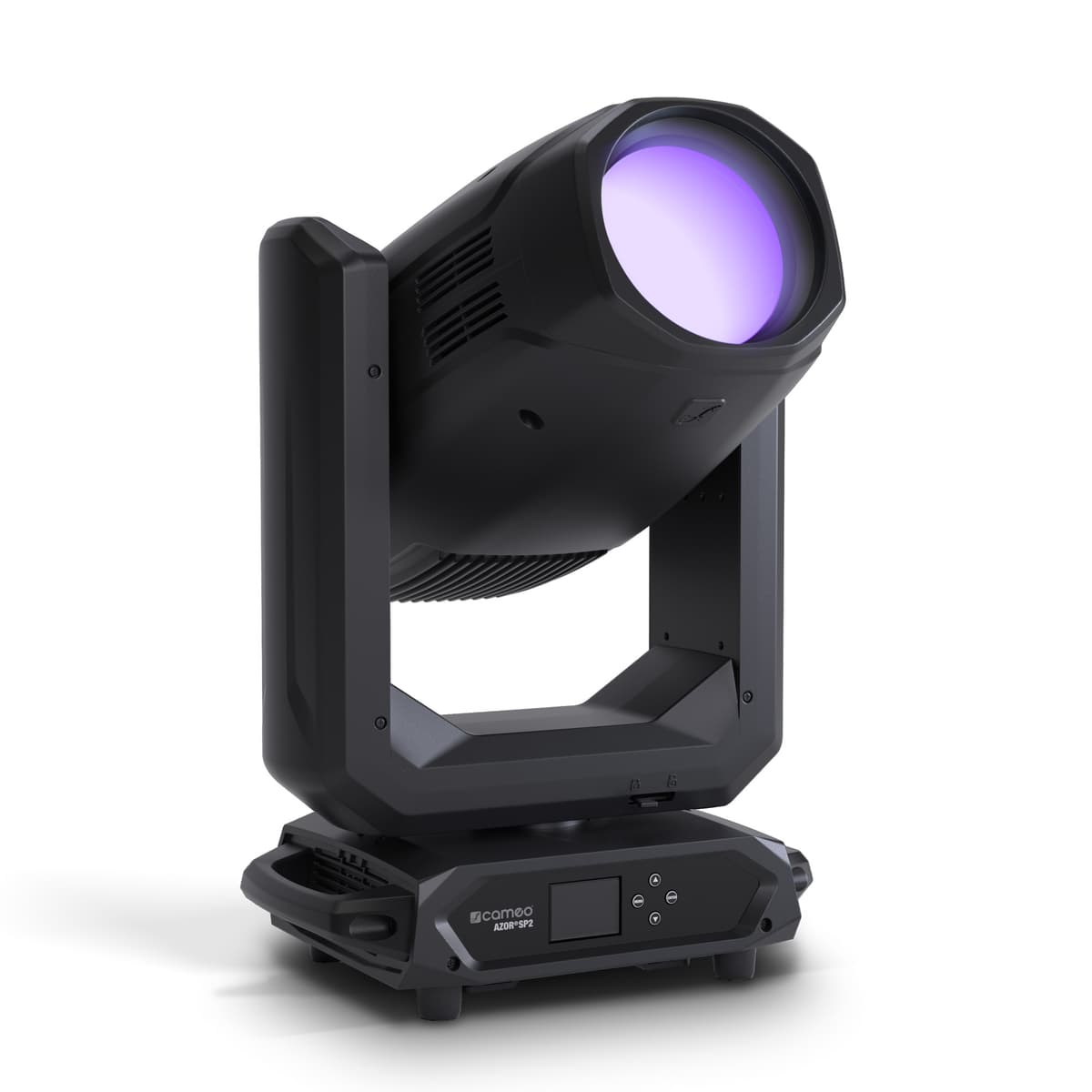

AZOR® SP2

Compact Spot Profile Moving Head

Item no.: CLAZORSP2

Guarantee: 24 months

EAN: 4049521902444

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:AZOR® Series

Versions:

Questions about the item?

Item highlights:

300 W LED with 13,000 lm luminous flux
Motorized framing blades on 4 layers (+/- 60° roatable)
Zoom range: 3° - 50°
CMY colour mixing and additional colour wheel with 8 dichroic colour filters
Rotating gobo wheel with 7 indexable/rotatable, exchangeable glass gobos + open
Overlapping prisms (circular)
Linear CTO for colour temperature modulation in lighting setups
Selectable PWM frequencies up to 25 kHz for flicker-free operation
Silent operation in 3 noise-modes

Features

4 framing shutter blades
Like wing limiters, but significantly more flexible, there are four diaphragm sliders here that enable the light beam to be shaped. Each diaphragm slider can be individually angled and inserted all the way for complete shading. The diaphragm slider system can be rotated by 45° in both directions for exact positioning.

This product is ETL certified.

(Gobo wheel)
Gobo wheels are fitted with static or rotating gobos made of metal or glass. Gobos are essentially templates that allow the projection of patterns, shapes and graphics.

Circular prism
A circular prism multiplies the beam or the gobo projection, placing the result inside a circle.

Colour wheel
Turning the colour wheel, which is fitted with various filters, enables very fast changes of colour.

Frost Filter
Contains an integrated frost filter that ensures soft edges on the light source.

iDMX Stick compatible
This product includes an input for the iDMX Stick, enabling an upgrade to W-DMX functions.

Focus
The focus function serves to focus the light beam and the gobo projection at any distance.

Cold white
According to the colour temperature scale in Kelvin (K), “cold white” is a very bright, clear light in the colour temperature range between 5,000 and 10,000 K; it is slightly artificial in character and goes well with rich primary colours.

The PAN & TILT feature moves light emission along the X and Y axes.

CMY
This spotlight uses a white light source and subtractive CMY colour blending (cyan, magenta, yellow) for an extremely large palette of colours.

Iris
The iris is a continuously variable opening for altering the diameter of the beam.

The high-frequency control of the LEDs while dimming ensures flicker-free operation, including for filming purposes.

Various dispersion angles possible

Specifications

LED data

300 W White COB-LED

Luminous flux

13,000 lm

Zoom range

3 - 50 °

Focusing type

Driven

Dimmer resolution

16 Bit

Dimmer curves

Linear, Exponential, Logarithmic, S curve

Colour mix functions

CMY + CTO

Correlated colour temperature (CCT)

3,200 - 6,800 K

CTO function

Linear (continuous)

Colour rendering index (CRI)

> 70

Pan

630 °

Tilt

270 °

Gobo wheels

1

Gobo wheel 1 – gobos

7

Iris

Yes

Frost

2

Animation

Yes

Framing blades

Yes

Framing blades rotation

-60 - 60 °

Module rotation

60 °

Controller protocols

DMX512, RDM

Number of DMX control modes

3

Data in connector

XLR 5-pole male

Data out connector

XLR 5-pole female

Rated power

550 W

Mains connector

Mains plug device outdoor male & TRUE1®

Mains fuse

T6.3A/250 V

Power out connector

Mains plug device outdoor female & TRUE1®

Max. output current

9 A

Cabinet material

ABS, Metal

Colour

Black

Cooling system

Fan cooling

Protection class

IP20

Ambient temperature

0 - 40 °C

Maximum air humidity (non-condensing)

90 %

Width

371 mm

Height

647 mm

Depth

238 mm

Weight

24 kg

Included Accessories

Mains cable, Mounting bracket

Description

AZOR® SP2

Compact designed from small to medium stages. The AZOR® SP2 is made for artists, bands and actors on stages and theaters. The benefits of a classic spot with the addition of motorized framing blades on 4 layers, rotatable by +/- 60°. An ideal partner for lighting designers and event service providers who are looking for a powerful and versatile LED show light - all of that in a compact housing.

The AZOR® SP2 is based on a 300 W LED light source with 13,000 lumens of luminous flux and a wide zoom range of 3°-50° for precise adjustment of the light beam on any stage. The integrated rotating CMY colour mixing system is complemented by an additional colour wheel with 8 dichroic filters to perform lightning-fast colour changes and split colours in conjunction with the 630° pan and 270° tilt movement.

Providing a spectrum of dynamic patterns and precise color temperature control for lighting designers, the compact spot profile moving head features a gobo wheel with 7 rotating gobos and a linear CTO to create remarkable visual effects and achieve a unique atmosphere.

Thanks to the adjustable PWM frequency (650 Hz - 25 kHz), the AZOR® SP2 is also suitable for use in TV and broadcast applications as well as wherever a camera transmits the action and is dependent on flicker-free LEDs in the picture. It can be controlled via DMX512, RDM or wirelessly via W-DMX using the optional Cameo iDMX adapter. On the fixture itself, buttons and an OLED display provide a convenient basic setup.
