AURO® SPOT 200

VIDEO

AURO® SPOT 200

LED Moving Head

Item no.: CLAS200

Guarantee: 24 months

EAN: 4049521198038

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:AURO® Series

Versions:

Questions about the item?

Item highlights:

RDM enabled moving head
130,000 lx @ 1 m, LED lifetime >20,000 hours
High speed 3-phase motors
16-bit resolution
Motor Focus
Automated positioning correction
Battery powered display for offline operation
8 intense colours, white and split colours
6 rotating and interchangeable gobos + open
All gobos replaceable with metal or glass gobos
Rotating 3-facet prism
Smooth dimming from 100 - 0% with 4 selectable curves
0 - 20 Hz strobe
Temperature controlled low noise fan
Professional connectivity with 3 and 5-pin DMX and Neutrik powerCON I/O

Features

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

Strobe
Strobes emit fast flash sequences, which makes movements appear “frozen” and creates a kind of slow-motion effect.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

RDM
This device has full RDM capability. The RDM protocol supplements the DMX protocol and enables bidirectional communication via a standard DMX network. It simplifies configuration, administration and monitoring of RDM devices connected to an RDM controller.

Standalone mode
In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

Specifications

Product type

LED Moving Lights

Type

LED Moving Heads

Colour spectrum

8-channel multi colour, Split colours, white

Number of LEDs

1

Color temperature

10000 K

LED type

100 W

Dispersion

(manually adjustable) 12° - 16 °

Number of gobos

6 + open

Gobo Size

Outer diameter 22.90 mm, Image diameter: 19.50 mm mm

DMX input

XLR 3-pin male, XLR 5-pin male

DMX output

XLR 3-pin female, XLR 5-pin female

DMX mode

13-channel, 22-channel, 5-channel

DMX Functions

Auto programs, Dimmer, Dimmer Curve, Gobo Shake, Gobo wheel, PAN, TILT

PAN movement

630°

TILT movement

235°

High Speed Strobe

1 - 20 Hz

Standalone modes

Auto run, Show, sound control

Controls

+, -, Enter, Mode, Value Down, Value Up

Indicators

colour LC display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

220 W

Power supply connector

Neutrik powerCON IN / OUT

Housing material

ABS plastic, Metal

Cabinet colour

Black

Cooling

Silent, temperature controlled fan

Illuminance

130000lx @ 1m

Luminous flux

3250 lm

Width

285 mm

Height

480 mm

Depth

180 mm

Weight

8,8 kg

Description

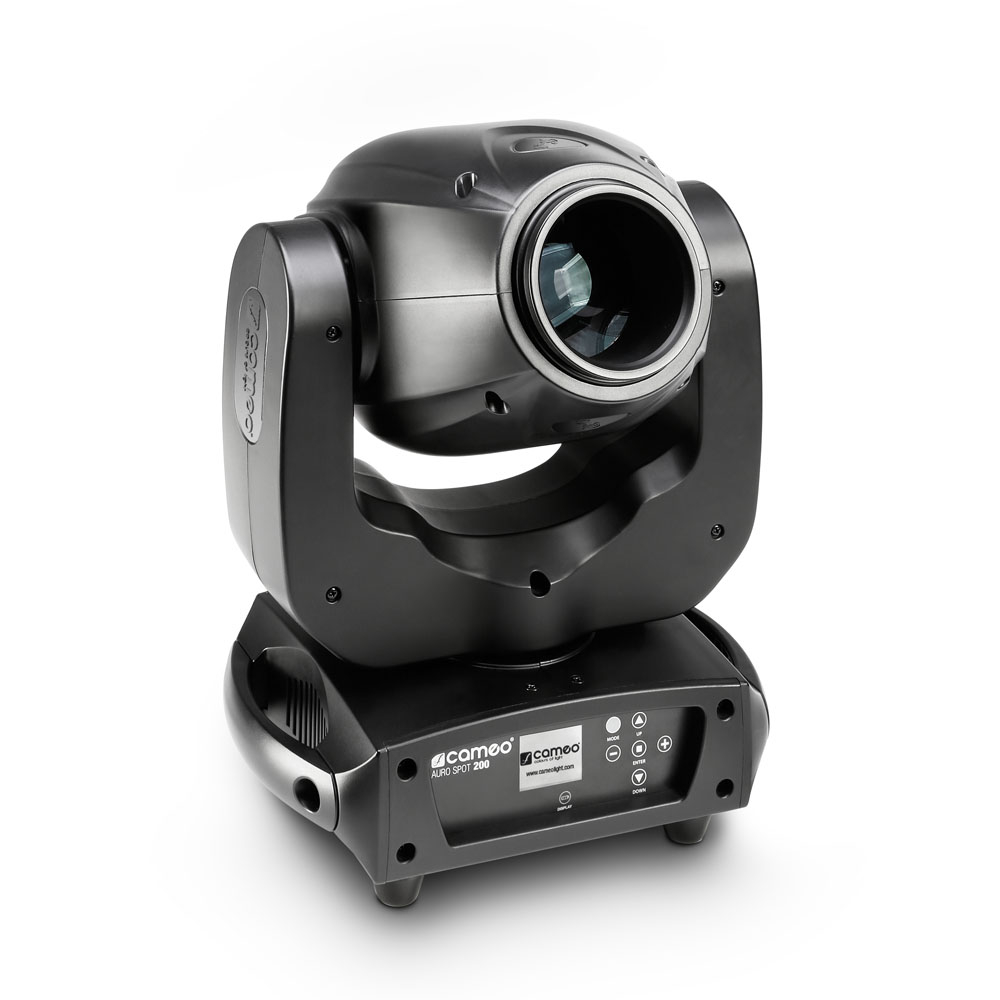

AURO® SPOT 200

The Cameo AURO® SPOT 200 is an RDM-capable moving head with 16-bit resolution, 630° pan and 235° tilt, driven by fast 3-phase motors and equipped with an extremely bright, 100-watt LED with a lifetime of over 20,000 hours. It is powered by a single 100 watt LED and sports 8 intense colours plus white and split colours, 6 replaceable gobos and a rotating 3-facet prism for awesome effects.

The AURO® SPOT 200 features 5-channel, 13-channel, 22-channel DMX control modes, auto run programs and sound activation as well as master, slave and standalone capabilities. Functions include a choice of 4 smooth dimming curves, shake effects and a 0 - 20 Hz cycle strobe.

The heavy-duty housing integrates a temperature controlled low noise fan, 3-pin and 5-pin DMX inputs and outputs, Neutrik powerCON mains connectors and a 4-button LCD control display. The multi-voltage AURO® SPOT 200 operates on 100 - 240 V AC.
