AURO® BEAM 150

VIDEO

Archive

AURO® BEAM 150

7 x 15 W RGBW LED Unlimited Moving Head

A new model exists for this item:

EVOS® W3

CLEW3

Item no.: CLABEAM150

Guarantee: 24 months

EAN: 4049521181375

Sliding scale: 1

Unit: Piece

Packaging unit: 2

Series:AURO® Series

Questions about the item?

Item highlights:

7 x high power 15 W RGBW LEDs
RGBW spectrum for saturated primary colours, subtle pastel shades and natural shades of white
Single Pixel Control for effective Pixel Mapping effects
2 high-speed engines for precise, high-speed and unlimited Pan and Tilt movements
Effective automated operating modes
Programmable Standalone scenes
Professional 3- and 5-pin DMX sockets and Neutrik powerCon mains connector
With a 3,600 Hz refresh rate, it is ideal for TV and video applications
RDM enabled
4 selectable dimming curves
3 temperatures of white: warm white, white, cool white

Features

Single pixel control
This device has an individual pixel control function. Since the colour and brightness of each LED pixel can be individually controlled (“Single Pixel Control”), the device can be used to generate animated graphic patterns and pixel mapping effects.

Music control
In music control mode, the device is controlled via the built-in microphone and can follow the rhythm of the music, for example.

RGB additive colour system plus white LEDs
Additional white LEDs create more contrast and clearer colour boundaries. What is more, they improve the creation of white and pastel colours.

Unlimited rotation
This moving head is fitted with two powerful, fast motors for endless horizontal and vertical rotation (pan and tilt).

LED technology
LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Master & slave
Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

Environment-friendly
The high energy efficiency, the long service life of the LED lamps and the low level of heat dissipation make this device particularly environment-friendly.

Quad colour RGBA/RGBW LEDs
Quad colour LEDs, also referred to as 4-in-1 LEDs, offer RGB colours but also an additional amber-coloured emitter for richer colours and an additional white emitter for improved contrast and greater definition.

Strobe
Strobes emit fast flash sequences, which makes movements appear “frozen” and creates a kind of slow-motion effect.

DMX512
Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

RDM
This device has full RDM capability. The RDM protocol supplements the DMX protocol and enables bidirectional communication via a standard DMX network. It simplifies configuration, administration and monitoring of RDM devices connected to an RDM controller.

Standalone mode
In standalone mode, the device functions are controlled via integrated programmes, so no light mixer or “master” controller is required.

Specifications

Product type

LED Moving Lights

Type

LED Moving Heads

Colour spectrum

RGBW

Number of LEDs

7

LED type

15 W

Refresh rate

3600 Hz

Dispersion

12 °

DMX input

XLR 3-pin male, XLR 5-pin male

DMX output

XLR 3-pin female, XLR 5-pin female

DMX mode

11-channel, 19-channel, 41-channel, 5-channel

DMX Functions

Dimmer, Pan/Tilt, Pan/Tilt fine, Single Pixel Control, Strobe

PAN movement

unlimited

TILT movement

unlimited

High Speed Strobe

> 30 Hz

Standalone modes

Auto run, Show, sound control

Controls

+, -, Enter, Mode, Value Down, Value Up

Indicators

colour LC display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

130 W

Power supply connector

Neutrik powerCON IN / OUT

Housing material

ABS plastic, Metal

Cabinet colour

Black

Cooling

Silent, temperature controlled fan

Illuminance

50000lx @ 1m

Width

375 mm

Height

260 mm

Depth

180 mm

Weight

4,8 kg

Description

AURO® BEAM 150

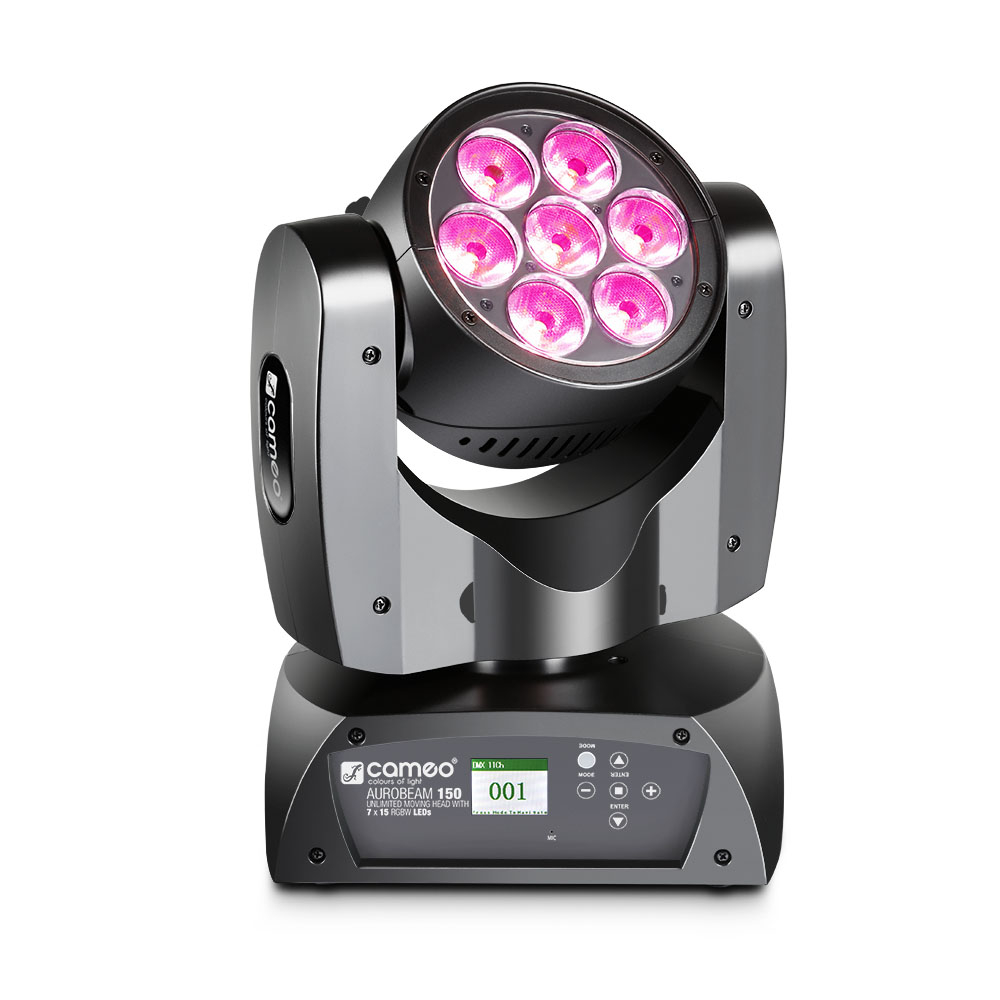

The Cameo AURO® BEAM 150 is an ultra-fast moving head with unlimited pan and tilt movement, 16-bit resolution and a 3,600 Hz refresh rate. Seven 15 Watt Quad LEDs produce rich RGBW colours, fresh pastel colours and vibrant shades of white with a 12° beam angle and a light intensity of 50,000 lux; Single Pixel Control ensures impressive pixel mapping effects.

The professional features of the AURO® BEAM 150 include a low-noise temperature controlled fan, powerCON mains connectors by Neutrik and 3 and 5-pin inputs and outputs for the DMX signal. It can be operated fully automatically with programmable scenes or music, or used in standalone, master or slave mode; when using DMX, 5-channel, 11-channel, 19-channel and 41-channel control modes are available, with options that include dimmer and strobe functions.

The rugged black metal and ABS housing of the Cameo AURO® BEAM 150 has 6 buttons and a backlit display for easy operation. The moving head can be used with all mains voltages from 100 to 240 volts and comes with a power cable and an Omega mounting bracket.
