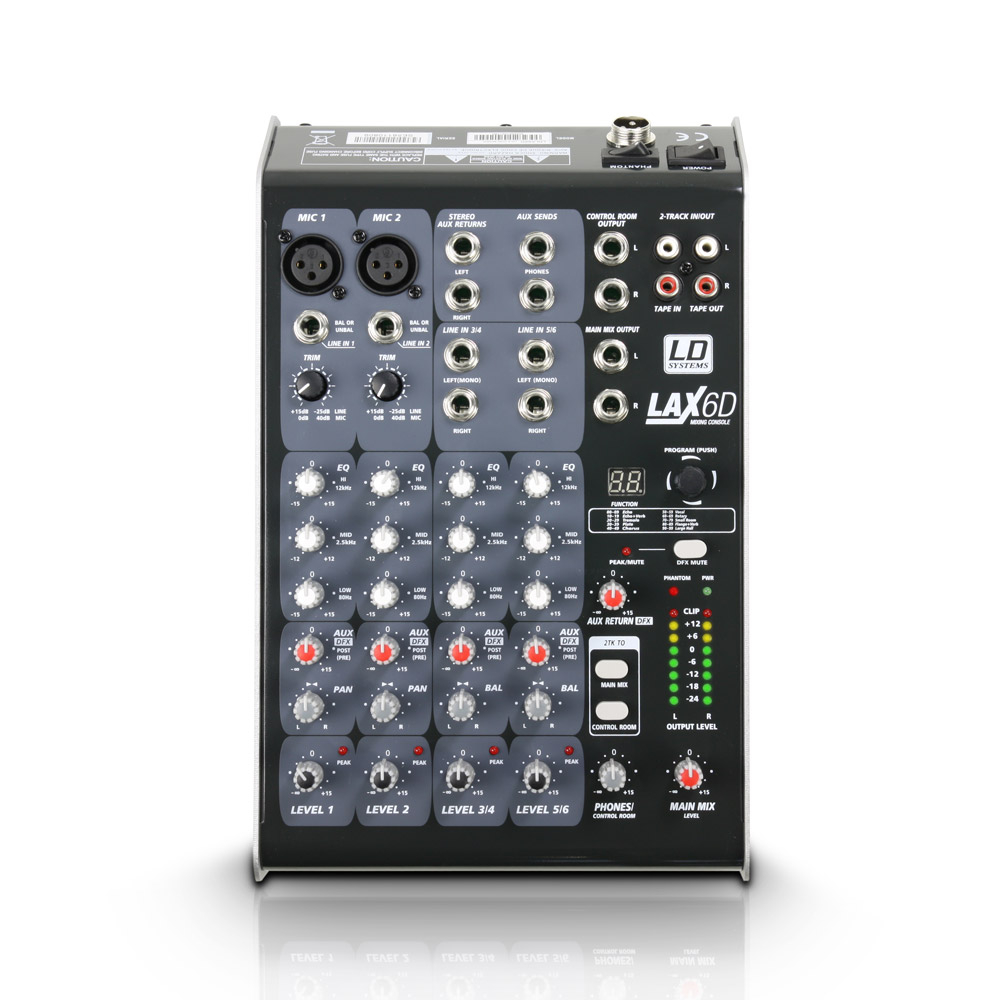

LAX 6 D

Mixer 6-channel with DSP

Item no.: LDLAX6D

Guarantee: 24 months

EAN: 4049521041150

Sliding scale: 1

Unit: Piece

Packaging unit: 4

Series:LAX

Item highlights:

The LAX series mixers have a natural sound with outstanding parameters and optimal user-friendliness as well as maximum dependability in day-to-day operation on the road. This makes them the perfect, affordable solution for a broad range of applications. Whether live on stage, home/project recording or installations of all kinds such as community centers, churches, and bars/bistros, the LAX series offers the right solution for many applications. Continuous on-site quality control according to ISO9001 ensures high dependability and high quality.

The mixing console has a total of six (6) input channels: 2 MIC inputs (mono) and 2 line inputs (stereo).

Specifications

Product type
Mixers
Type
Live
Channels
6
Mono Mic and Line Input Channels
2
Mono Mic input connectors
XLR, 6.3 mm TRS
Mono Mic Input Type
Electronically balanced
Mono Mic Input Frequency Range
10 Hz - 45.000 Hz
Amplification Range mono Mic Input
0 dB - +40 dB
Mono Mic Input Input THD-N
0.005 %
Mono Mic Input Impedance
3.600 Ω
Mono Mic Input S/N Ratio
102 dB
Mono Line Input Type
Electronically balanced
Mono Line Input Frequency Range
10 Hz - 45.000 Hz
Amplification Range mono Line Input
-25 dB - +15 dB
Mono Line Input Input THD-N
0.005 %
Mono Line Input Impedance
> 10000 Ω
Mono Line Input S/N Ratio
102 dB
Mono Channel Equalizer High
+/- 15 dB @ 12,000 Hz
Mono Channel Equalizer Mid
+/- 15 dB @ 2,500 Hz
Mono Channel Equalizer Low
+/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels
3-band EQ (High, Mid, Low), Gain, pan, AUX (DFX) Post, Channel Volume
Stereo Line Input Channels
2
Stereo Line Input Connectors
6.3 mm TS
Stereo Line Input Type
Unbalanced
Stereo Line Input Frequency Range
10 Hz - 45.000 Hz
Stereo Line Input Input THD-N
0.005 %
Stereo Line Input Impedance
> 10000 Ω
Stereo Line Input S/N Ratio
102 dB
Stereo channel equalizer treble
+/- 15 dB @ 12,000 Hz
Stereo channel equalizer mids
+/- 15 dB @ 2,500 Hz
Stereo channel equalizer bass
+/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels
3-band EQ (High, Mid, Low), Balance, Channel Volume, AUX (DFX) Post
AUX / Effects Send Channels
1
AUX / Effects Send Connectors
6.3 mm TS
Stereo AUX Return Channels
1
Stereo AUX Return Connectors
6.3 mm TS
Stereo Tape Out Channel
1
Stereo Tape Out Connectors
RCA
Stereo Tape In Channel
1
Stereo Tape In Connenctors
RCA
Unbalanced stereo Main Outputs
1
Unbalanced stereo Main Output Connections
6.3 mm TS
Unbalanced Stereo Main Out Impedance
120 Ω
Max. Unbalanced Stereo Main Out Level
+22 dBu
Stereo Control Room Out
1
Stereo Control Room Out Connectors
6.3 mm TS
Headphones ouput
1
Headphones outputs
6.3 mm TRS
Digital Effects Processor
Yes
Number of Presets
100
Main section controls
AUX (DFX) Return Volume, Power, Phantom Power, Master Volume, DFX Preset Alpha Dial, Phones / Control Room Volume, 2-track Assignment (Main, Contr. Room), DFX Mute Schalter
USB media player
No
Indicators
Power, 8-segment Level Meter, Phantom Power, DFX Peak / Mute, Channel Peak
Power supply
External Power Supply Prim. 230 V AC 50 Hz Sec. 2 x 18 V AC 2 x 500 mA
Width
178 mm
Height
70 mm
Depth
295 mm
