LD Systems
VIBZ 12 DC
LDVIBZ12DC
Item no.: LDLAX12DUSB
Guarantee: 24 months
EAN: 4049521066917
Sliding scale: 1
Unit: Piece
Packaging unit: 2
Series:LAX
Item highlights:

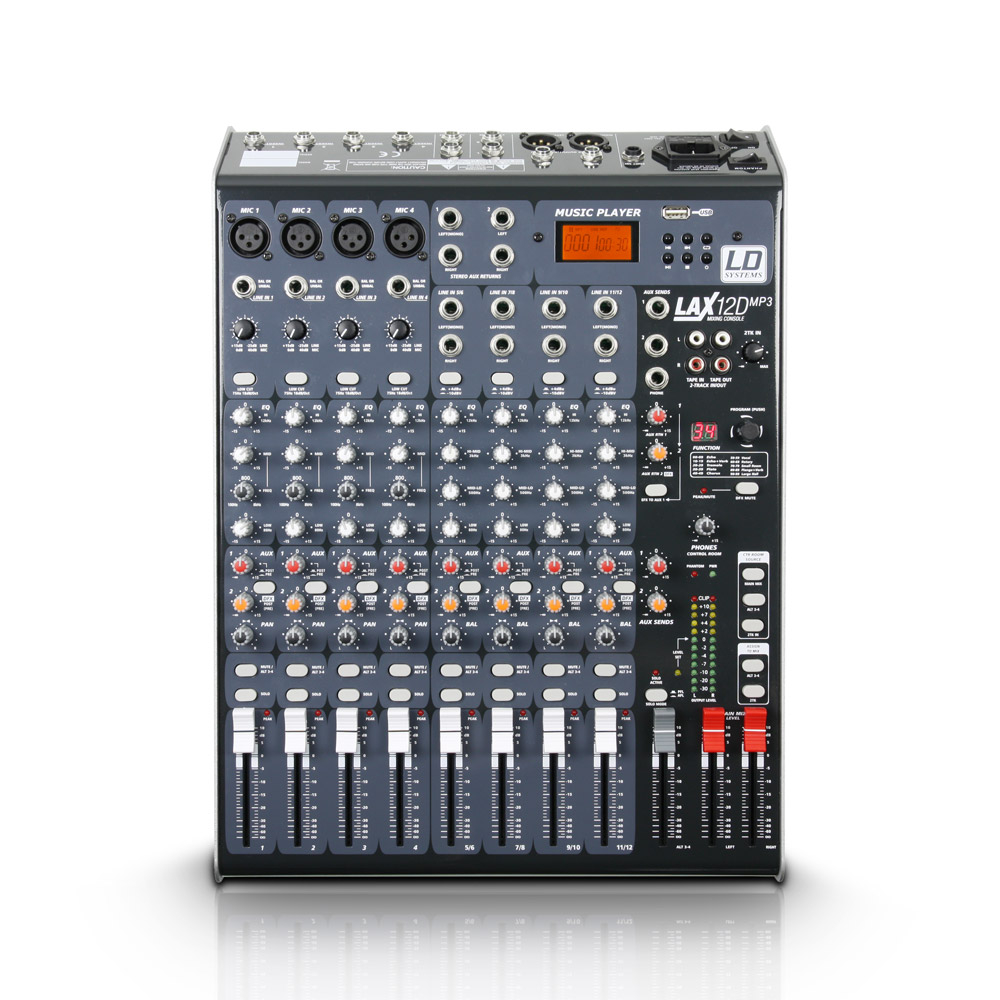

12 Channel Mixing Console with integrated DSP effects processor and USB MP3 Player
The LAX series mixers have a natural sound with outstanding parameters and optimal user-friendliness as well as maximum dependability in day-to-day operation on the road. This makes them the perfect, affordable solution for a broad range of applications. Whether live on stage, home/project recording or installations of all kinds such as community centers, churches, and bars/bistros, the LAX series offers the right solution for many applications. Continuous on-site quality control according to ISO9001 ensures high dependability and high quality.
The mixing console has a total of twelve (12) input channels: 4 MIC inputs (mono) and 4 line inputs (stereo).Specifications
Product type
Mixers
Type
Live
Channels
12
Mono Mic and Line Input Channels
4
Mono Mic input connectors
6.3 mm TRS, XLR
Channel Inserts
4
Channel Insert Connectors
6.3 mm TRS
Mono Mic Input Type
Electronically balanced
Mono Mic Input Frequency Range
10 - 45.000 Hz
Amplification Range mono Mic Input
0 - +40 dB
Mono Mic Input Input THD-N
0.005 %
Mono Mic Input Impedance
3600 Ohm(s)
Mono Mic Input S/N Ratio
102 dB
Mono Line Input Type
Electronically balanced
Mono Line Input Frequency Range
10 - 45.000 Hz
Amplification Range mono Line Input
-25 - +15 dB
Mono Line Input Input THD-N
0.005%
Mono Line Input Impedance
> 10.000 Ohm(s)
Mono Line Input S/N Ratio
102 dB
Mono Channel Equalizer High
+/- 15 dB @ 12,000 Hz
Mono Channel Equalizer Mid
+/- 15 dB @ 100 - 8,000 Hz
Mono Channel Equalizer Low
+/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels
3-band EQ with semiparametric mids, AUX 1 umschaltbar Pre/Post, AUX 2 (DFX) Post, Gain, Channel Fader, Low Cut (75 Hz), Mute / Alt 3 - 4 Switch, PFL / Solo Switch, pan
Phantom power
48 V DC switchable
Stereo Line Input Channels
4
Stereo Line Input Connectors
6.3 mm TS
Stereo Line Input Type
Unbalanced
Stereo Line Input Frequency Range
10 - 45.000 Hz
Amplification Range stereo Line Input
+4 / -10 dB
Stereo Line Input Input THD-N
0.005%
Stereo Line Input Impedance
> 10.000 Ohm(s)
Stereo Line Input S/N Ratio
102 dB
Stereo channel equalizer treble
+/- 15 dB @ 12,000 Hz
Stereo channel equalizer hi-mids
+/- 15 dB @ 3.000 Hz
Stereo channel equalizer low-mids
+/- 15 dB @ 500 Hz
Stereo channel equalizer bass
+/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels
4-band EQ (High, High-Mid, Low-Mid, Low), AUX 1 umschaltbar Pre/Post, AUX 2 (DFX) Post, Balance, gain switching, Channel Fader, Mute / Alt 3 - 4 Switch, PFL / Solo Switch
AUX / Effects Send Channels
2
AUX / Effects Send Connectors
6.3 mm TS
Stereo AUX Return Channels
2
Stereo AUX Return Connectors
6.3 mm TS
Stereo Tape Out Channel
1
Stereo Tape Out Connectors
RCA
Stereo Tape In Channel
1
Stereo Tape In Connenctors
RCA
Balanced Stereo Main Out
1
Balanced Stereo Main Out Connectors
XLR
Balanced Stereo Main Out Impedance
120 Ohm(s)
Max. Balanced Stereo Main Out Level
+22 dBu
Unbalanced stereo Main Outputs
1
Unbalanced stereo Main Output Connections
6.3 mm TS
Unbalanced Stereo Main Out Impedance
120 Ohm(s)
Max. Unbalanced Stereo Main Out Level
+22 dBu
Stereo Control Room Out
1
Stereo Control Room Out Connectors
6.3 mm TS
Stereo Alt Out
1
Stereo Alt Out Connectors
6.3 mm TS
Headphones ouput
1
Headphones outputs
6.3 mm TRS
Digital Effects Processor
Yes
Number of Presets
100
Footswitch Connector DFX Mute
6.3 mm TS
Main section controls
2 x Master Fader (Left, Right), 2-track In Volume, ALT 3-4 Fader (stereo), AUX 1 Return Volume, AUX 1 Send Volume, AUX 2 (DFX) Return Volume, AUX 2 Send Volume, Assign to Mix (ALT 3-4, 2 TK), CTR Room Source (Main Mix, ALT 3-4, 2 TK In), DFX Mute Schalter, DFX Preset Alpha Dial, EFX to AUX 1 Switch, headphones volume, Phantom Power, Power, Solo Mode (PFL, AFL)
USB media player
Yes
Playback Formats USB Media Player
MP3
USB Media Player Features
on/off, Lighted Display, Next Track, Play / Pause, Repeat, Stop, USB A Port, Previous Track
Indicators
12-segment Level Meter, Channel Peak, DFX Peak / Mute, Level Set, Phantom Power, Power, Solo
Power supply
100 - 240 V, Switching power supply
Width
315 mm
Height
86 mm
Depth
436 mm
Weight
7,2 kg
