STINGER G3 IMPACT SET

STINGER G3 IMPACT SET

2 x 15" passive PA Speaker + 4 x 18" passive Subwoofer + Amping Rack

Item no.: LDEBSETIMPACT

Guarantee: 24 months

EAN: 4049521304064

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:STINGER G3

Versions:

Item highlights:

  • For audiences up to 400* pax
  • For DJs, open-air sound reinforcement for bands and large private use
  • Compact and easy to transport
  • Extensive and smart accessories for installation and transport
  • All-rounder for full-range, satellite and monitor applications
  • 36 mm Dual-Tilt pole mount for 0° and 5° tilt angle
  • Birch plywood housing with ultra-robust Polyurea coating
  • Dedicated subwoofer output to provide signal and power to passive satellite
  • Set includes protective covers and castor boards

Specifications

Scope of delivery
2 x STINGER 15 G3, 4 x STINGER SUB 18 G3, 1 x DSP 45K RACK, 2 x STINGER 15 G3 PC, 4 x STINGER SUB 18 G3 PC, 4 x STINGER SUB 18 G3 CB
RMS output power
3,400 W
Frequency response (-6 dB, rel. Avg)
35 - 20,000 Hz
Beam angle
90° (hor.) / 50° (vert.)
Colour
Black
Weight
268 kg

Items in this set

Type
Passive
Peak load capacity
1,000 W
RMS load capacity
500 W
SPL (1 W/1 m)
100 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %)
127 dB
Frequency response
50 - 20,000 Hz
Impedance
8 Ω
Speaker system
2-way system
Beam angle
90° (hor.) / 50° (vert.)
Monitor angle
54 °
Number of inputs
1
Input connector types
Standard speaker connector 4-pole male & speakON®
Number of outputs
1
Output connector types
Standard speaker connector 4-pole male & speakON®
Colour
Black
Size
15 "
Magnet
Ferrite
Voice coil
3 "
Driver size
1 "
Magnet
Ferrite
Voice coil
1 "
Design
Bass reflex
Number of handles
1
Mounting type
M10 for SuperClamp
Flange
36 mm (0°/5°)
Cabinet material
Birch plywood
Material thickness
15 mm
Front grille material
Aluminium
Width
480 mm
Height
737 mm
Depth
455 mm
Weight
25.7 kg
Included accessories
Mains cable
Suitable for
PA speaker
Material
Nylon 1680D
Padding thickness
8 mm
Colour
Black
Width
510 mm
Height
700 mm
Depth
460 mm
Weight
1 kg
Material
Multiplex
Coating
Polyurea
Colour
Black
Roller type
Heavy-duty roller
Material
Rubber
Colour
Blue
Quantity
4
Braked rollers
2
Diameter
100 mm
With brake
Yes
Width
540 mm
Depth
650 mm
Material thickness
15 mm
Weight
7 kg
Suitable for
PA subwoofer
Material
Nylon 1680D
Padding thickness
8 mm
Colour
Black
Width
567 mm
Height
470 mm
Depth
625 mm
Weight
1.2 kg
Product type
Power Amplifiers
Type
19" / 3 HE
Weight
17,9 kg
Peak load capacity
1,600 W
RMS load capacity
800 W
SPL (1 W/1 m)
100 dB
Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %)
129 dB
Low frequency limit
40 Hz
Impedance
8 Ω
Number of inputs
1
Input connector types
Standard speaker connector 4-pole male & speakON®
Number of outputs
1
Output connector types
Standard speaker connector 4-pole male & speakON®
Colour
Black
Size
18 "
Outer diameter
457.2 mm
Magnet
Ferrite
Voice coil
4 "
Design
Bass reflex
Number of handles
4
Flange
M20
Cabinet material
Birch plywood
Material thickness
18 mm
Front grille material
Aluminium
Width
677 mm
Height
547 mm
Depth
740 mm
Weight
40.6 kg
Included accessories
Mains cable

Description

STINGER G3 IMPACT SET

Delivering a massive low-end with punch and clarity, this set is ideal for open-air sound reinforcement. With a quartet of subwoofers and two 15” tops, it easily covers medium-sized gigs at town fairs, street festivals and in marquees. We recommend this set for the following type of application: DJ, open-air sound reinforcement for bands. The STINGER G3 IMPACT SET is suitable for audiences of up to 400* pax.

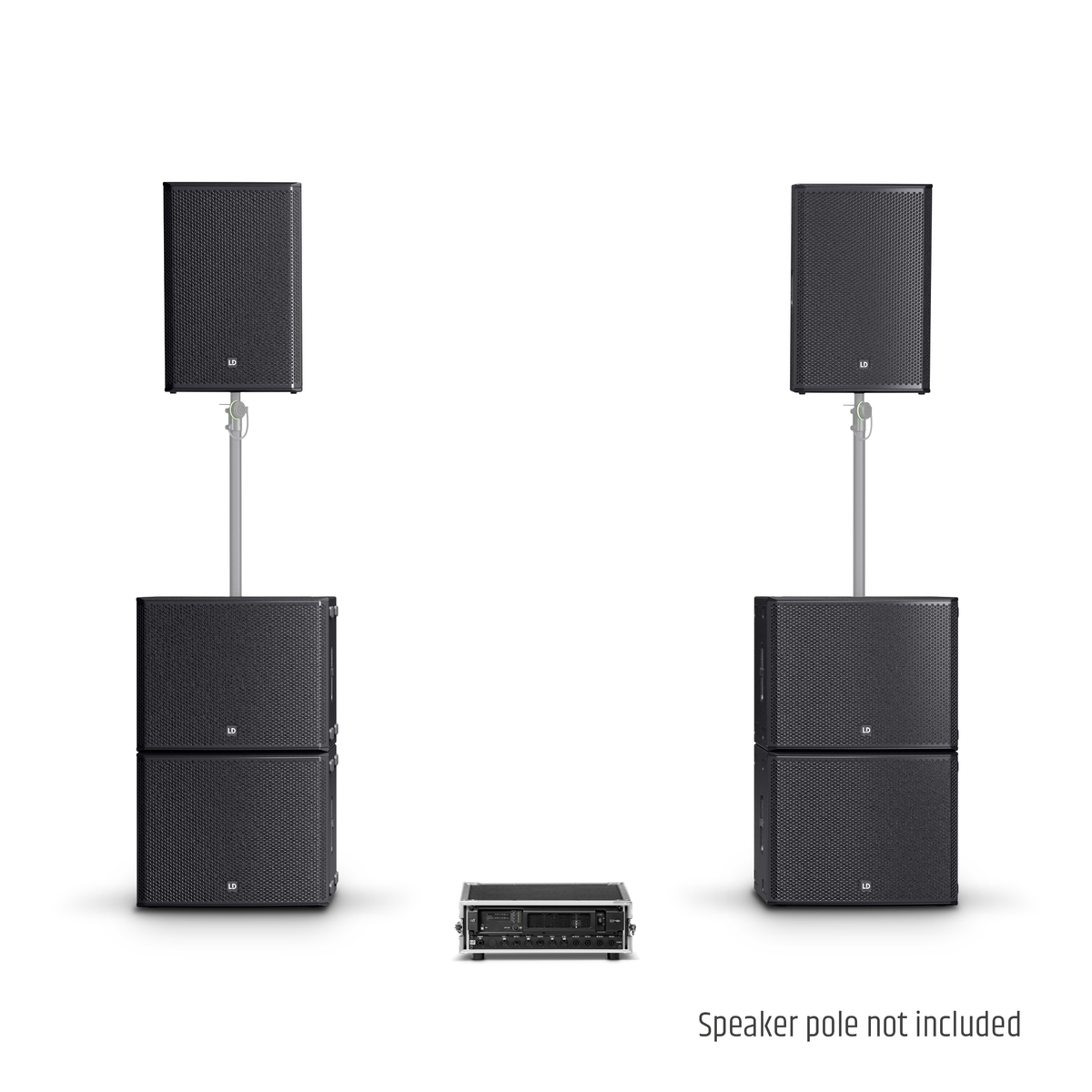

Set consisting of:

  • 2 x STINGER 15 G3 – 15” Passive loudspeaker
  • 4 x STINGER SUB 18 G3 – 18” Passive subwoofer
  • 1 x DSP 45K RACK – Power amplifier with DSP
  • 2 x STINGER 15 G3 PC – Padded protective cover for loudspeaker
  • 4 x STINGER SUB 18 G3 PC – Padded protective cover for subwoofer
  • 4 x STINGER SUB 18 G3 CB – Castor board for subwoofer

*NOTE: Audience size specifications are approximate only. The actual numbers may vary depending on room acoustics and environment.
