Item no.: LDEBSETIMPACTA
Guarantee: 24 months
EAN: 4049521304071
Sliding scale: 1
Unit: Piece
Packaging unit: 1
Series:STINGER G3
Versions:
Item highlights:
- For audiences up to 400* pax
- For DJs, open-air sound reinforcement for bands and large private use
- Compact and easy to transport
- Extensive and smart accessories for installation and transport
- All-rounder for full-range, satellite and monitor applications
- Practical presets for quick frequency response contouring
- Highly efficient digital amplifier without fan
- 36 mm Dual-Tilt pole mount for 0° and 5° tilt angle
- Birch plywood housing with ultra-robust Polyurea coating
- Cardioid subwoofer array presets
- Set includes protective covers and castor boards
Specifications
Scope of delivery
2 x STINGER 15 A G3, 4 x STINGER SUB 18 A G3, 2 x STINGER 15 G3 PC, 4 x STINGER SUB 18 G3 PC, 4 x STINGER SUB 18 G3 CB
RMS output power
3,400 W
Frequency response (-6 dB, rel. Avg)
35 - 20,000 Hz
Beam angle
90° (hor.) / 50° (vert.)
Colour
Black
Weight
260 kg
Items in this set
Suitable for
PA speaker
Material
Nylon 1680D
Padding thickness
8 mm
Colour
Black
Width
510 mm
Height
700 mm
Depth
460 mm
Weight
1 kg
Peak output power
1,600 W
RMS output power
800 W
Amp class
Class D
Max. SPL peak
135 dB
Low frequency limit
40 Hz
Number of inputs
2
Input connector types
Standard speaker connector 4-pole male & speakON®
Number of outputs
2
Output connector types
XLR 3-pole male
Colour
Black
Number of line inputs
2
Line-In connector type
Standard speaker connector 4-pole male & speakON®
Input impedance (balanced)
30 kΩ
Number of line outputs
2
Line outputs connector type
XLR 3-pole male
Size
18 "
Magnet
Ferrite
Voice coil
4 "
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Rated power
600 W
Mains connector
Mains socket indoor power in male & powerCON®
Design
Bass reflex
Number of handles
4
Flange
M20
Cabinet material
Birch plywood
Material thickness
18 mm
Front grille material
Aluminium
Ambient temperature
0 - 40 °C
Maximum air humidity (non-condensing)
80 %
Width
677 mm
Height
547 mm
Depth
740 mm
Weight
42.6 kg
Included accessories
Mains cable
Type
Active
Peak output power
1,000 W
RMS output power
500 W
Amp class
Class D
Max. SPL peak
133 dB
Frequency response
50 - 20,000 Hz
Speaker system
2-way system
Beam angle
90° (hor.) / 50° (vert.)
Monitor angle
54 °
Number of inputs
2
Input connector types
XLR combo socket
Number of outputs
1
Output connector types
XLR 3-pole male
Protection features
Multiband Limiter, Overheating, Overvoltage, Overload
Colour
Black
Number of line inputs
2
Line-In connector type
XLR combo socket
Nom. Sensitivity (< 1% THD, 1 kHz, max. Gain)
-5 dBu
Number of line outputs
1
Line outputs connector type
XLR 3-pole male
Size
15 "
Magnet
Ferrite
Voice coil
3 "
Driver size
1 "
Magnet
Ferrite
Voice coil
1 "
Operation voltage
100 V AC - 240 V AC (±10 %) / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Rated power
600 W
Mains connector
Standard speaker connector 4-pole male & speakON®
Design
Bass reflex
Number of handles
2
Flange
36 mm (0°/5°)
Cabinet material
Birch plywood
Material thickness
15 mm
Front grille material
Aluminium
Ambient temperature
0 - 40 °C
Maximum air humidity (non-condensing)
80 %
Width
480 mm
Height
737 mm
Depth
455 mm
Weight
26.8 kg
Included accessories
Mains cable
Material
Multiplex
Coating
Polyurea
Colour
Black
Roller type
Heavy-duty roller
Material
Rubber
Colour
Blue
Quantity
4
Braked rollers
2
Diameter
100 mm
With brake
Yes
Width
540 mm
Depth
650 mm
Material thickness
15 mm
Weight
7 kg
Suitable for
PA subwoofer
Material
Nylon 1680D
Padding thickness
8 mm
Colour
Black
Width
567 mm
Height
470 mm
Depth
625 mm
Weight
1.2 kg
Description

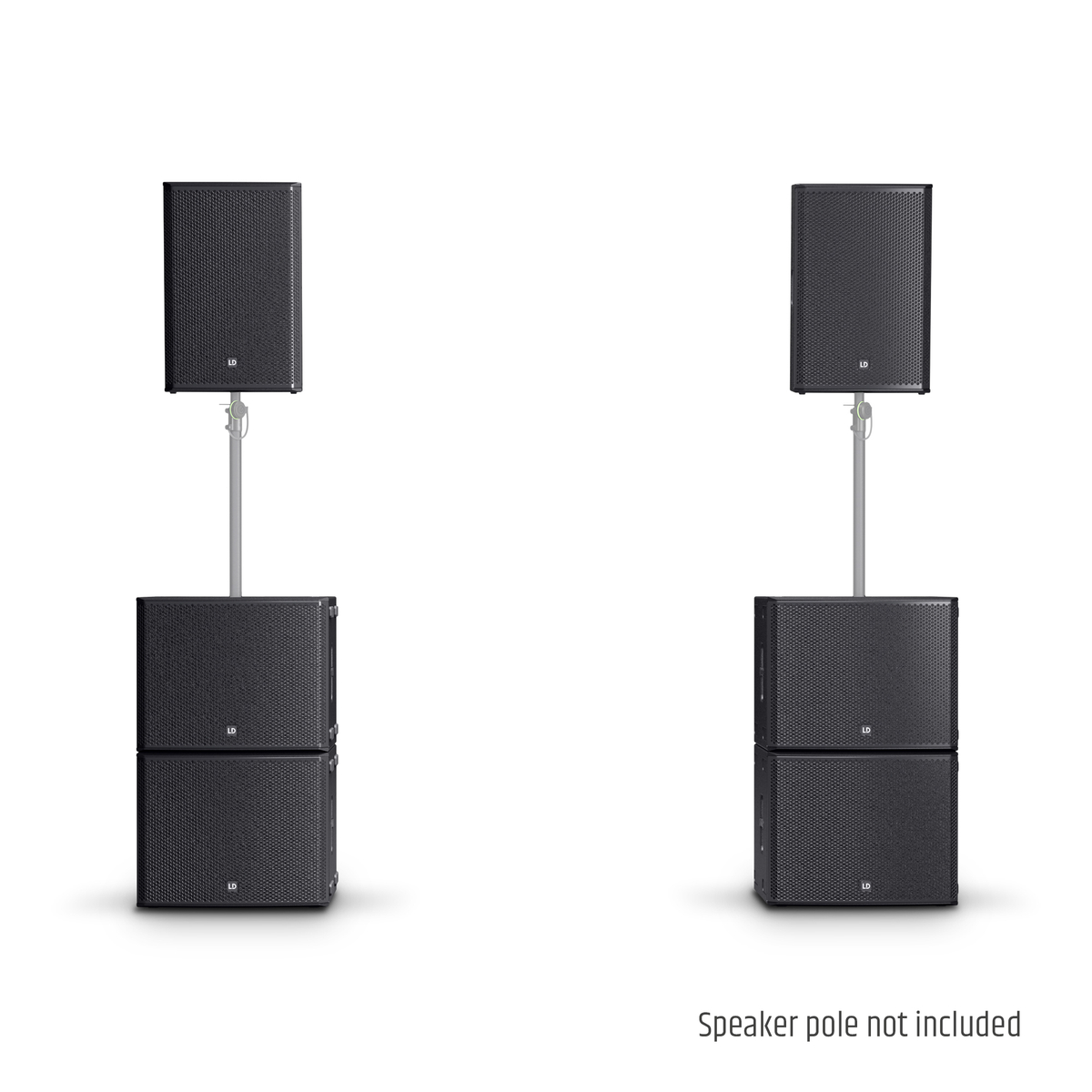

STINGER G3 IMPACT SET A
Delivering a massive low-end with punch and clarity, this set is ideal for open-air sound reinforcement. With a quartet of subwoofers and two 15” tops, it easily covers medium-sized gigs at town fairs, street festivals and in marquees. We recommend this set for the following type of application: DJ, open-air sound reinforcement for bands. The STINGER G3 IMPACT SET A is suitable for audiences of up to 400* pax.
Set consisting of:- 2 x STINGER 15 A G3 – 15” Powered loudspeaker
- 4 x STINGER SUB 18 A G3 – 18” Powered subwoofer
- 2 x STINGER 15 G3 PC – Padded protective cover for loudspeaker
- 4 x STINGER SUB 18 G3 PC – Padded protective cover for subwoofer
- 4 x STINGER SUB 18 G3 CB – Castor board for subwoofer
*NOTE: Audience size specifications are approximate only. The actual numbers may vary depending on room acoustics and environment.
