STINGER G3 GALA SET

STINGER G3 GALA SET

2 x double 8" passive PA Speaker + 2 x 18" passive Subwoofer + Amping Rack

Item no.: LDEBSETGALA

Guarantee: 24 months

EAN: 4049521304088

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:STINGER G3

Versions:

Item highlights:

  • For audiences up to 350* pax
  • For gala events, corporate conferences and large private use
  • Compact and easy to transport
  • Extensive and smart accessories for installation and transport
  • All-rounder for full-range, satellite and monitor applications
  • 36 mm Dual-Tilt pole mount for 0° and 5° tilt angle
  • Birch plywood housing with ultra-robust Polyurea coating
  • Dedicated subwoofer output to provide signal and power to passive satellite
  • Set includes protective covers and castor boards

Specifications

Scope of delivery
2 x STINGER 28 G3, 2 x STINGER SUB 18 G3, 1 x DSP 45K RACK, 2 x STINGER 28 G3 PC, 2 x STINGER SUB 18 G3 PC, 2 x STINGER SUB 18 G3 CB
RMS output power
2,400 W
Frequency response (-6 dB, rel. Avg)
35 - 20,000 Hz
Beam angle
90° (hor.) / 50° (vert.)
Colour
Black
Weight
156 kg

Items in this set

Material
Multiplex
Coating
Polyurea
Colour
Black
Roller type
Heavy-duty roller
Material
Rubber
Colour
Blue
Quantity
4
Braked rollers
2
Diameter
100 mm
With brake
Yes
Width
540 mm
Depth
650 mm
Material thickness
15 mm
Weight
7 kg
Suitable for
PA subwoofer
Material
Nylon 1680D
Padding thickness
8 mm
Colour
Black
Width
567 mm
Height
470 mm
Depth
625 mm
Weight
1.2 kg
Product type
Power Amplifiers
Type
19" / 3 HE
Weight
17,9 kg
Peak load capacity
1,600 W
RMS load capacity
800 W
SPL (1 W/1 m)
100 dB
Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %)
129 dB
Low frequency limit
40 Hz
Impedance
8 Ω
Number of inputs
1
Input connector types
Standard speaker connector 4-pole male & speakON®
Number of outputs
1
Output connector types
Standard speaker connector 4-pole male & speakON®
Colour
Black
Size
18 "
Outer diameter
457.2 mm
Magnet
Ferrite
Voice coil
4 "
Design
Bass reflex
Number of handles
4
Flange
M20
Cabinet material
Birch plywood
Material thickness
18 mm
Front grille material
Aluminium
Width
677 mm
Height
547 mm
Depth
740 mm
Weight
40.6 kg
Included accessories
Mains cable
Suitable for
PA speaker
Material
Nylon 1680D
Padding thickness
8 mm
Colour
Black
Width
290 mm
Height
750 mm
Depth
310 mm
Weight
650 g
Type
Passive
Peak load capacity
800 W
RMS load capacity
400 W
SPL (1 W/1 m)
99 dB
Frequency response
58 - 20,000 Hz
Impedance
8 Ω
Speaker system
2-way system
Beam angle
90° (hor.) / 50° (vert.)
Number of inputs
1
Input connector types
Standard speaker connector 4-pole male & speakON®
Number of outputs
1
Output connector types
Standard speaker connector 4-pole male & speakON®
Colour
Black
Size
8 "
Quantity
2
Magnet
Ferrite
Voice coil
2 "
Driver size
1 "
Magnet
Ferrite
Voice coil
1 "
Design
Bass reflex
Number of handles
2
Mounting type
M10 for SuperClamp
Flange
36 mm (0°/5°)
Cabinet material
Birch plywood
Material thickness
12 mm
Front grille material
Aluminium
Width
270 mm
Height
756 mm
Depth
290 mm
Weight
19.3 kg

Description

STINGER G3 GALA SET

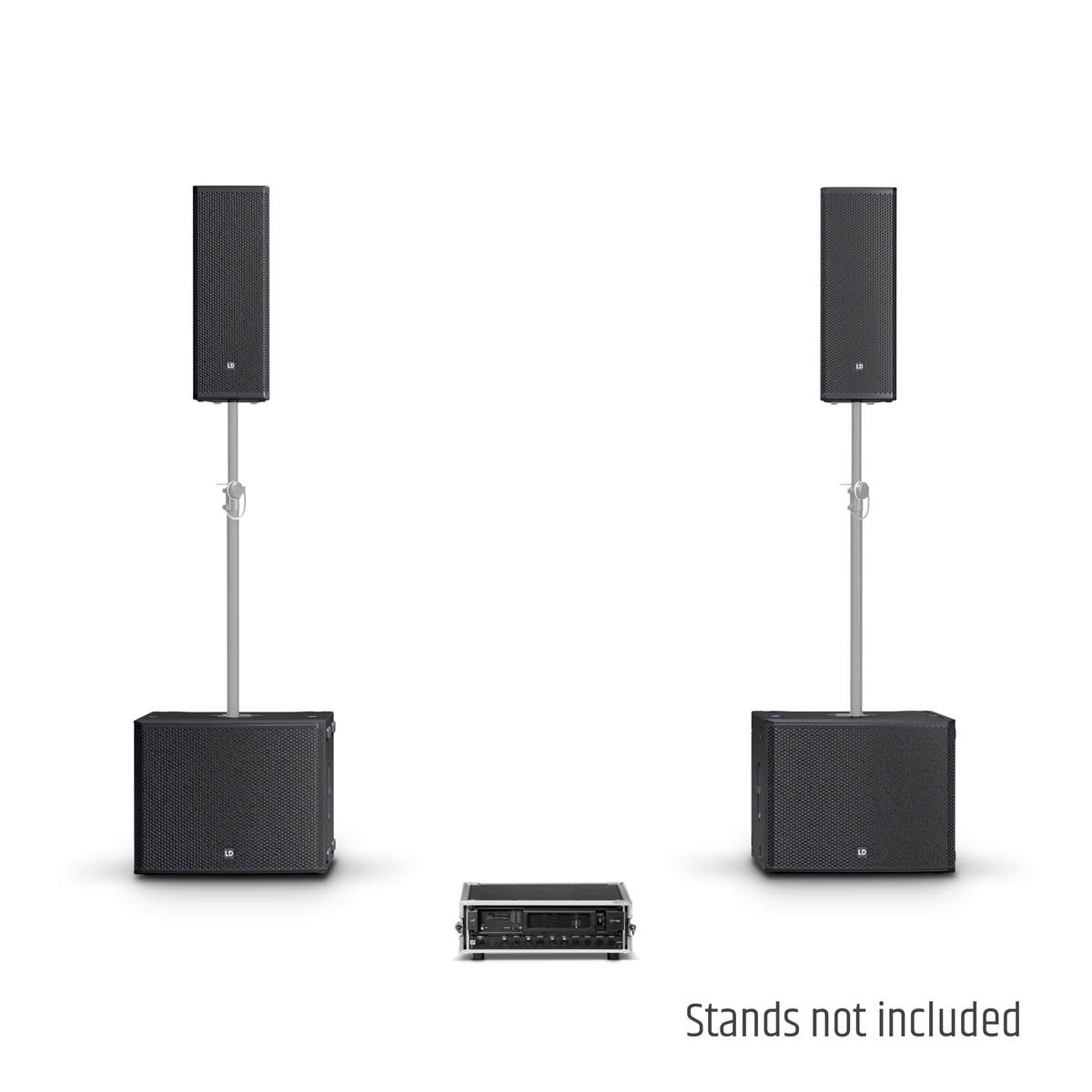

Including a pair of slim, low-profile satellites and two subwoofers, this set is a great option for events that require excellent speech intelligibility and extended coverage. We recommend this set for the following type of application: gala events, corporate conferences. The STINGER G3 GALA SET is suitable for audiences of up to 350* pax.

Set consisting of:

2 x STINGER 28 G3 – 28” Passive loudspeaker

2 x STINGER SUB 18 G3 – 18” Passive subwoofer

1 x DSP 45K RACK – Power amplifier with DSP

2 x STINGER 28 G3 PC – Padded protective cover for loudspeaker

2 x STINGER SUB 18 G3 PC – Padded protective cover for subwoofer

2 x STINGER SUB 18 G3 CB – Castor board for subwoofer

*NOTE: Audience size specifications are approximate only. The actual numbers may vary depending on room acoustics and environment.
