MIX 6 G3

MIX 6 G3

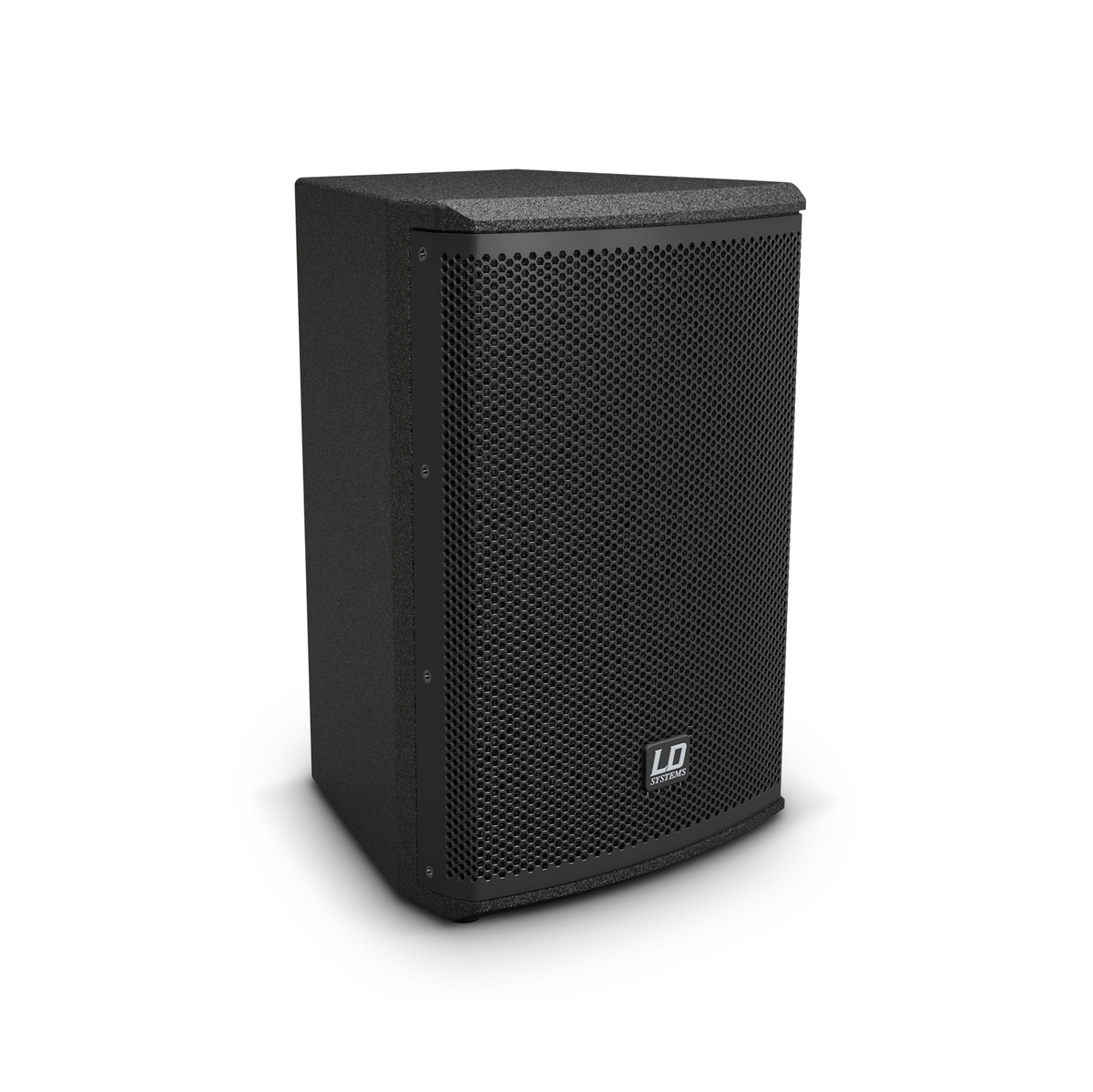

Passive 2-Way Follower Loudspeaker to LD Systems MIX 6 A G3

Item no.: LDMIX62G3

Guarantee: 24 months

EAN: 4049521267253

Sliding scale: 1

Unit: Piece

Packaging unit: 1

Series:MIX G3

Versions:

Item highlights:

  • Passive 2-way loudspeaker
  • 280 watts peak power handling
  • Tight and punchy bass reflex design
  • 6.5” woofer and 1” HF driver, 80 Hz - 20 kHz
  • 2 pole mount inserts for vertical and horizontal orientation
  • Ideal as follower unit to LD Systems MIX 6 A G3

Specifications

Type
Passive
Power handling (Peak)
280 W
Power handling (RMS)
70 W
SPL (1 W/1 m)
90 dB
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %)
117 dB
Frequency response
80 - 20,000 Hz
Impedance
4 Ω
Speaker system
2-way system
Beam angle
Hor.: 80° / Vert.:70°
Number of inputs
1
Input connector types
6.3 mm Jack TRS
Colour
Black
Size
6.5 "
Outer diameter
165.1 mm
Driver size
1 "
Design
Bass reflex
Flange
16 mm flange
Cabinet material
Medium-density fibreboard MDF
Front grille material
Aluminium
Width
214 mm
Height
323 mm
Depth
221 mm
Weight
4.4 kg

Description

MIX 6 G3

This passive 2-way loudspeaker has been designed as a companion to the active MIX 6 A G3 for small-scale PA and personal monitoring applications. It features the same 10" custom woofer and 1" HF driver complement, 80 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering crystal clear sound with punch and detail.

The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. In a master-and-follower setup with the active unit, the MIX 6 G3 provides amazing performance and versatility in a lightweight, easily portable package.
